Good points

For inlet and outlet
With integrated insect screen
Aluminum or galvanized steel
Mounting screws included

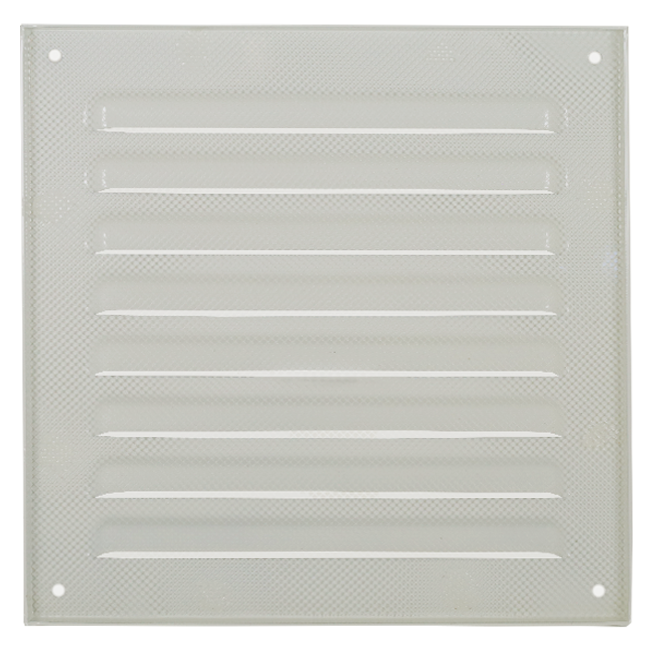

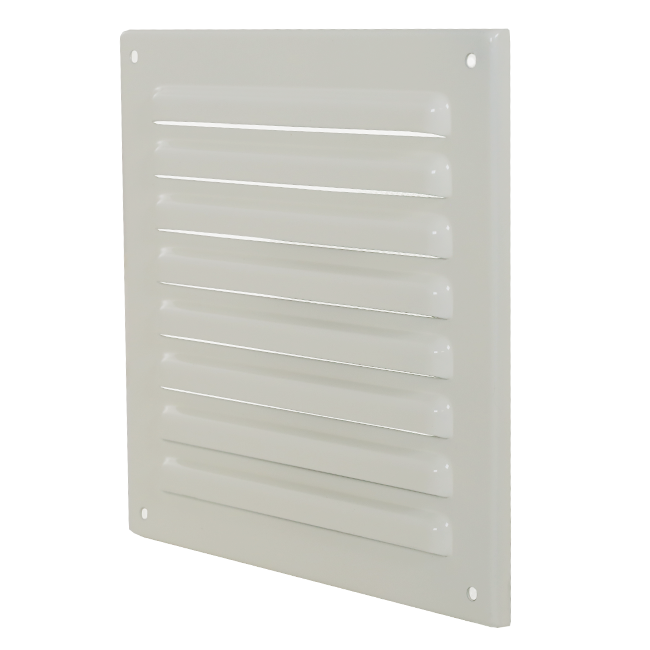

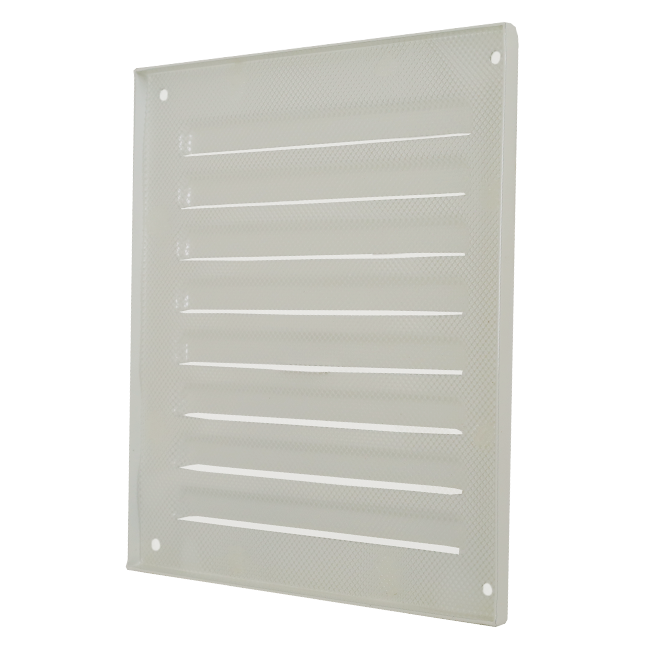

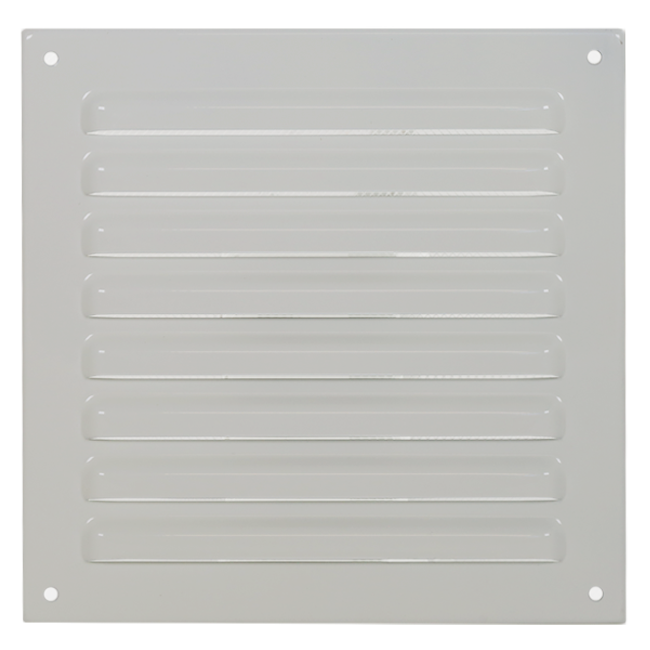

Square external grille 150x150mm aluminium - RAL9010

This square external grille measuring 150x150 mm is made of aluminium and finished in RAL9010. It is used as an air inlet or outlet in the façade, featuring fixed louvres that ensure good airflow while providing protection against rain ingress. The integrated insect mesh prevents dirt and pests from entering the ventilation duct.

Advantages and features

Aluminium construction – lightweight, corrosion-resistant, and suitable for long-term outdoor use.
RAL9010 powder coating – sleek, wear-resistant finish that complements white window frames and façade details.
Integrated mesh – keeps insects and larger debris out of the duct.
Compact size 150x150 mm – ideal for smaller ventilation openings in residential and commercial buildings.

Installation and application

The grille is mounted directly onto the façade or into an opening of the ventilation duct. The aluminium design maintains its shape under varying weather conditions and requires minimal maintenance. This makes it suitable for both new build and renovation projects where a neat finish and reliable ventilation duct protection are essential.

With this aluminium external grille, you combine a refined RAL9010 appearance with a durable solution for controlled air supply and exhaust.

Brand	Econox
Category	Ventilation grilles metal square / rectangular
GTIN	8719544331793
Manufacturer's item number	76021000
Article number	76021000

Specifications

Category code	62
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	150 mm
Nominal duct height	150 mm
Front width	192 mm
Front height	192 mm
Built-in depth	10 mm
With bird wire	No
With insect netting	Yes
With synchronised rotating valve section	No
With built-in window	No
Lockable	No
Motor-controlled	No
Colour	White
RAL-number	9010
Shape	Square
