Good points

Round model for wall bushing
For inlet and outlet
Plastic insect screen
Mounting screws included

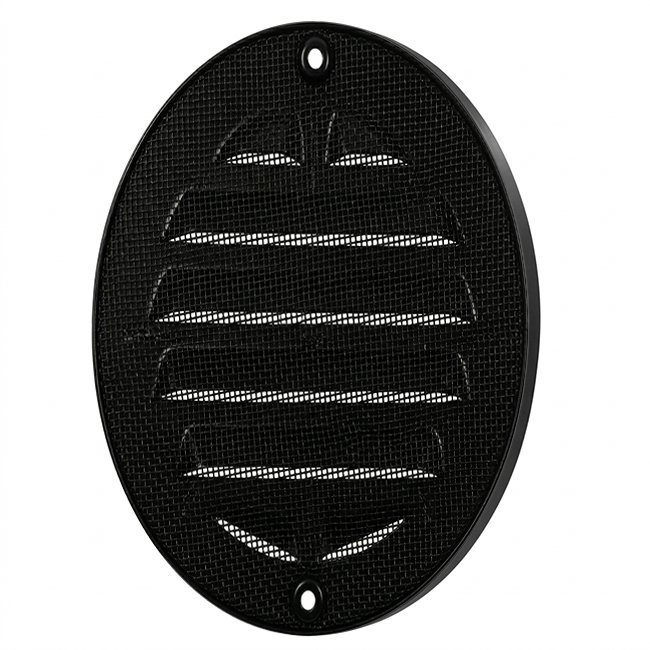

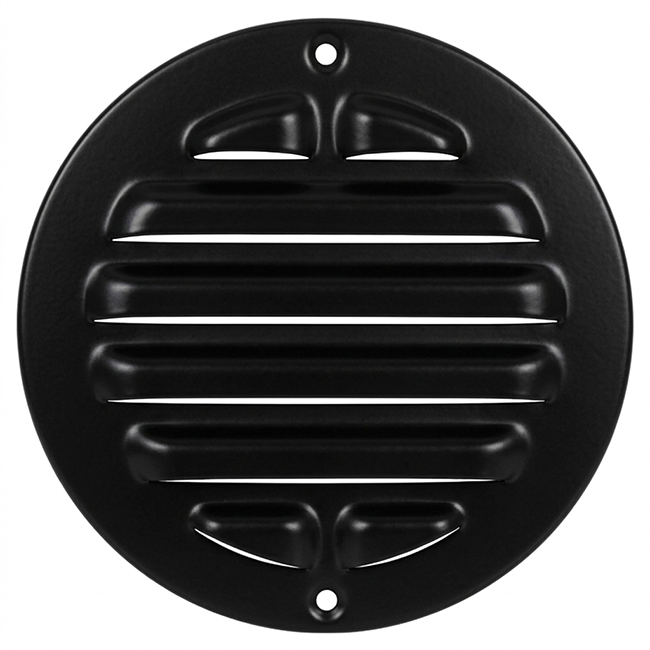

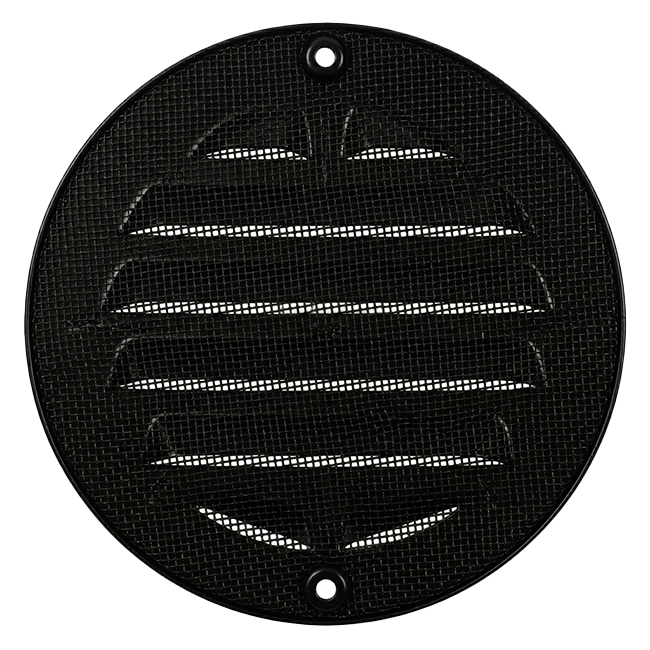

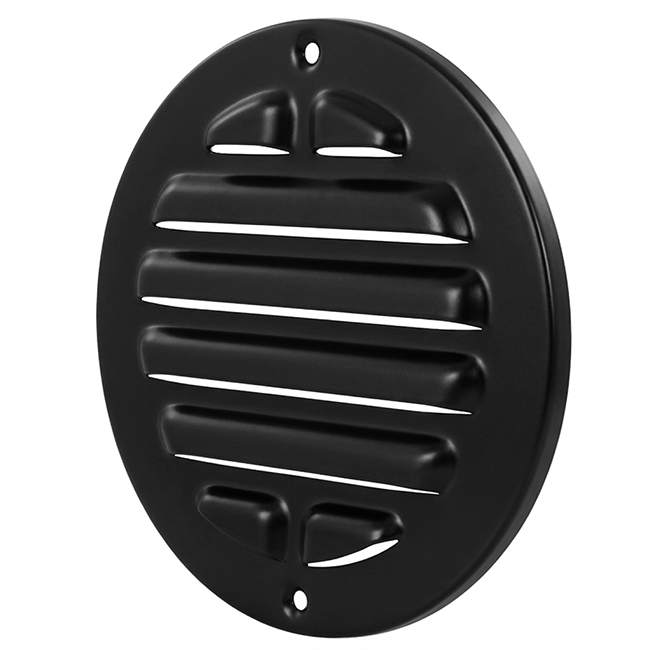

Round 125 mm Aluminium Exterior Vent Grill – RAL9005 30% Gloss

This round exterior vent grill with a diameter of 125 mm is made of aluminium and finished in RAL9005 with a 30% gloss. It is used as an air inlet or outlet on the façade for smaller ventilation ducts. The fixed louvre design ensures good airflow while protecting against rain ingress. The integrated insect mesh prevents dirt and pests from entering the duct.

Benefits and Features

Aluminium construction – lightweight, corrosion-resistant, and suitable for long-term outdoor use.
RAL9005 30% gloss finish – black powder coating with a subtle satin sheen for a modern façade appearance.
Integrated insect mesh – protects the ventilation duct from leaves and insects.
125 mm diameter – ideal for compact ventilation openings in residential buildings and renovations.

Installation and Application

The grill is mounted directly in or onto the façade at the location of the ventilation duct. The aluminium construction remains dimensionally stable under varying weather conditions and requires minimal maintenance. Thanks to its compact size, this grill is perfect for applications with limited space that still demand a neat and reliable façade finish.

This round aluminium exterior vent grill offers a sleek black finish combined with a durable solution for controlled air supply and exhaust.

Brand	Econox
Category	Surface mounted vent covers
GTIN	8719544331885
Manufacturer's item number	76021009
Article number	76021009

Specifications

Category code	62
Material	Aluminium
Surface protection	Lacquered
Nominal duct diameter	125 mm
Front diameter	147 mm
Built-in depth	9 mm
With insect netting	Yes
With built-in window	No
Lockable	No
Motor-controlled	No
Colour	Black
RAL-number	9005
Shape	Round
