510.84
Delivery time: 12 working days
- The largest collection in the United Kingdom
- 100 day return period
- Customer review 9/10
- Safe shopping with Trustedshops
Pay safe and fast with:
Good points
- Incl. overheating protection
- Ø250 mm

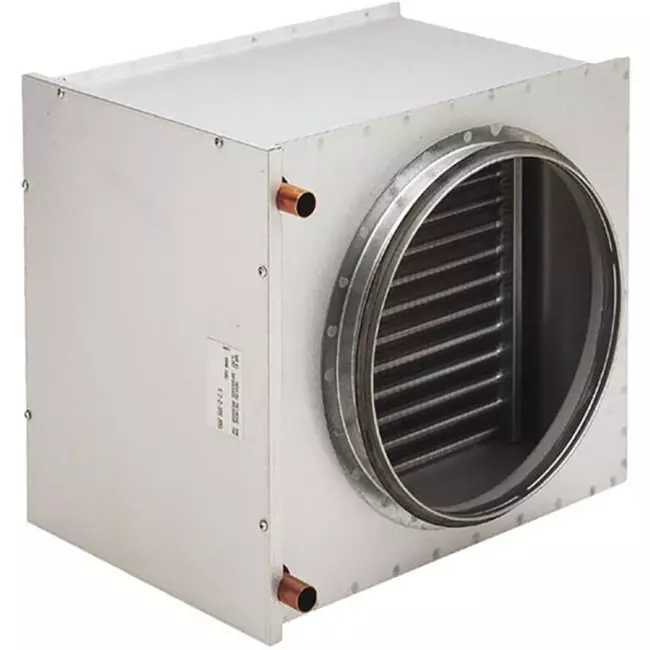

Orcon WWB 250 2 hot water coil
.| Brand | Orcon |
| Category | Orcon MVHR Units Parts and Accessories |
| GTIN | 8718403863475 |
| Manufacturer's item number | 15704252 |
| Article number | 19220089 |
Specifications
| Category code | 156 |
| Length | 417 mm |
| Nominal duct diameter | 250 mm |
| With inspection hatch | Yes |
| Working length | 277 mm |
| Width | 400 mm |
| Height | 360 mm |
| Model | Round |
| Max. medium temperature (continuous) | 110 °C |
| Exhaust temperature (min) | 20.1 °C |
| Nominal power at 60-40 °C, inlet 0 °C | 7.2 kW |
| Nominal flow (max) | 0.13 m³/h |
| Nominal power at 80-60 °C, inlet 15 °C | 8.4 kW |
| Nominal power at 60-40 °C, inlet 15 °C | 4.5 kW |
| Water-side resistance (max) | 8.7 kPa |
| Exhaust temperature (max) | 30.7 °C |
| Nominal flow (min) | 0.09 m³/h |
| Water-side resistance (min) | 4.4 kPa |
| Nominal power at 80-60 °C, inlet 0 °C | 11 kW |
