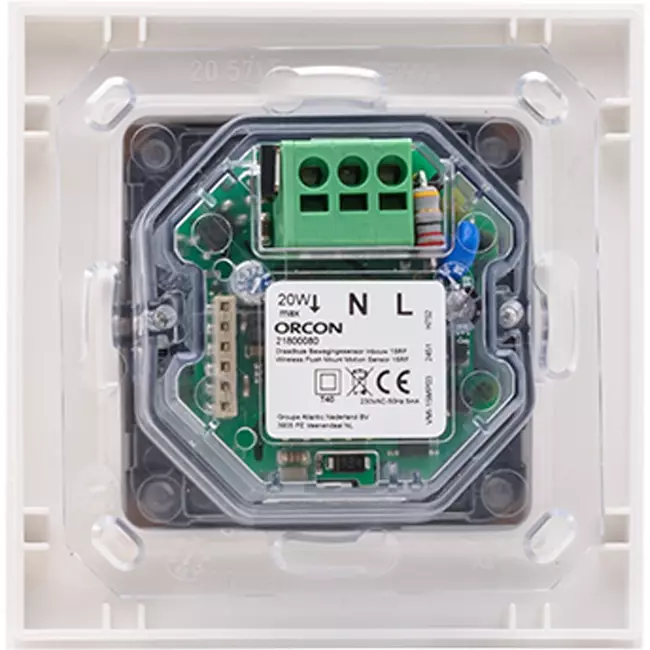

Orcon Motion Sensor 15RF – Built-in
The Orcon Motion Sensor 15RF – built-in is a smart, compact sensor that detects movement and automatically controls your ventilation system. The sensor operates on 230 V and communicates wirelessly via RF (868 MHz), allowing for simple and flexible installation. Ideal for energy-efficient ventilation based on occupancy – without manual operation. Note! The Orcon Motion Sensor 15RF – built-in is only compatible with units from the 2025 model year onwards.
Benefits and Features
- Automatic control based on movement: Automatically activates ventilation when presence is detected and returns to base level when absent.
- Wireless RF communication (868 MHz): Works completely wirelessly with Orcon ventilation systems from the 2025 model year onwards.
- Direct power supply (230 V): No batteries required – connection via standard screw terminals.
- Adjustable overrun time: Ventilation remains active for a preset period (5 seconds to 30 minutes) after the last detected movement.
- Compact and stylish: Only 50 × 50 × 30 mm in size, suitable for standard flush-mounted boxes and seamless integration into any interior.
- Connection: The Orcon CO₂ control sensor is wirelessly linked to the unit but always requires a 230 V power supply to function.
Applications and Usage
The Orcon Motion Sensor 15RF – built-in is ideal for areas such as toilets, corridors, kitchens, and utility rooms where ventilation is only needed when occupied. Thanks to motion detection, energy is saved and comfort is enhanced without manual intervention.
Practical Information
The sensor has a detection range of up to 5 metres frontally and laterally, with a scanning angle of approximately 90°. The optimal mounting height is around 1.5 metres. The sensor is IP21 rated (suitable for dry indoor spaces), operates within an ambient temperature range of 0–40 °C, and is powered by 230 V. It includes a 200 mm connection cable and is suitable for wall and ceiling flush mounting without the need for an additional installation box.
Why Choose This Product
The Orcon Motion Sensor 15RF – built-in combines comfort, energy savings, and ease of use in one compact design. Thanks to automatic presence switching and wireless communication, this is the ideal choice for demand-controlled ventilation in both new builds and renovation projects.
| Brand | Orcon |
| Category | Parts for Orcon Mechanical Ventilation |
| GTIN | 8720701076259 |
| Manufacturer's item number | 21800080 |
| Article number | 19130041 |
Specifications
| Category code | 108 |
| Model | Movement sensor |
| Movement sensor/presence detector technology | Passive infrared |
| Constant light control | No |
| HVAC-control | Yes |
| Forced switch on | Yes |
| Forced switch off | No |
| Animal zone | No |
| Creep-under protection | No |
| Background monitoring | No |
| Networkable | No |
| Scan angle | 82 ° |
| Optimum mounting height | 1.5 m |
| Staircase light controller | No |
| Bridging switch | No |
| Max. reach sideways | 5 m |
| Max. presence range | 20 m² |
| Max. reach frontally | 5 m |
| Diameter reach on floor | 10 m |
| Suitable for wireless transmission | Yes |
| Remote operation | No |
| With remote control | No |
| Response value sensitivity adjustable | No |
| Response value luminosity adjustable | No |
| With signal unit | No |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Mounting method | Flush-mounted |
| Suitable for ceiling mounting | No |
| Ceiling built-in mounting without installation box | No |
| Suitable for wall mounting | Yes |
| Connection type | Push-in clamp |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Anti-bacterial treatment | No |
| Colour | White |
| RAL-number (similar) | 9010 |
| Transparent | No |
| Degree of protection (IP) | IP21 |
| Voltage type | AC |
| Frequency (min) | 50 Hz |
| Frequency (max) | 50 Hz |
| Nominal voltage (min) | 195 V |
| Nominal voltage (max) | 253 V |
| Min. switch-on time | 600 s |
| Max. duty cycle | 10 min |
| Switch-off delay | 60 s |
| Swivel range sensor, horizontal (min) | 42 ° |
| Swivel range sensor, horizontal (max) | 42 ° |
| Swivel range sensor, vertical (min) | 42 ° |
| Swivel range sensor, vertical (max) | 42 ° |
| Response value luminosity (min) | 5 lx |
| Response value luminosity (max) | 2000 lx |
| Max. switching power | 20 W |
| Max. switching power LED | 200 W |
| Suitable for C-load | Yes |
| Number of switching zones | 1 |
| Max. starting current | 0.8 A |
| Substation input | No |
| With alarm function | No |
| With acoustic sensor | No |
| Width | 50 mm |
| Height | 50 mm |
| Depth | 30 mm |
| Built-in width | 50 mm |
| Built-in depth | 30 mm |
| Min. depth of built-in installation box | 40 mm |
| With connection cable | No |
| Connection cable length | 200 m |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
| IFTTT support available | No |
