MVHR High Efficiency roof terminal Thermoduct RAL7016 Ø125mm

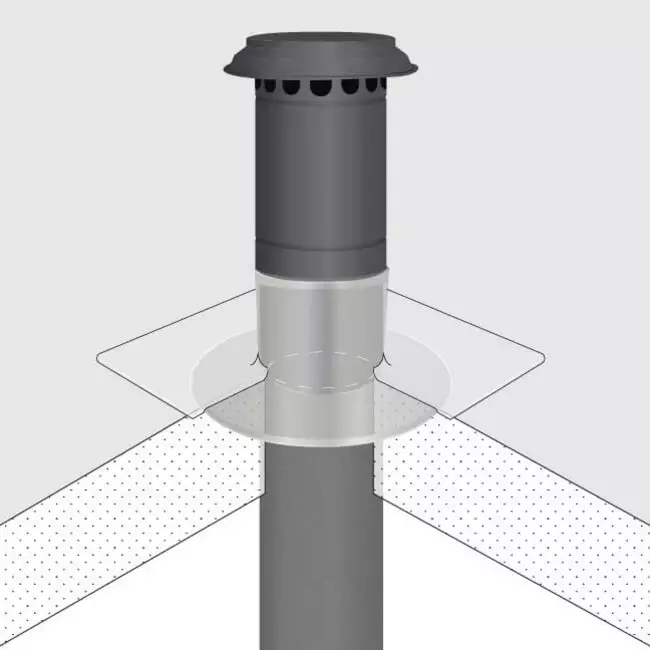

Aluminium anthracite-enamelled roof terminal for air supply and extraction. Ideal for MVHR installations but can also be used for other purposes.Available with corresponding lead slates according to the degrees of the roof pitch or with roof slab for flat roof (see accessories).
| Additional features | Value |
| Connection diameter | 125 mm |
| Type of connection | Male coupler |
| Air outlet opening | 209 cm² |
| Air displacement at 5 m/s | 376 m³/h |
| Drag | 10 Pascal |
| Type of insulation material | Thermoduct (externally insulated) |
| Insulation thickness | 9 mm |
| Length of roof frame | 575 mm |
| Function | Supply and extraction |
| Brand | Econox |
| Category | MVHR roof terminal |
| GTIN | 8719544001498 |
| Manufacturer's item number | 11010125 |
| Article number | 11010125 |
Specifications
| Category code | 54 |
| Material | Aluminium |
| Surface protection | Other |
| Nominal diameter | 125 mm |
| Cover outer diameter | 257 mm |
| Insulated | Yes |
| Insulating material | Other |
| Colour on the roof | Other |
| RAL-number | 7016 |
| Total length | 950 mm |
| Length above roof (including cover) | 375 mm |
| Diameter | 125 mm |
| Type of insulation | Thermoduct insulated 9mm |
