Good points
- For use with an air handling unit
- Galvanized sheet steel, insulated
- Open-close, with spring return
- 230 V Servomotor, 4 Nm

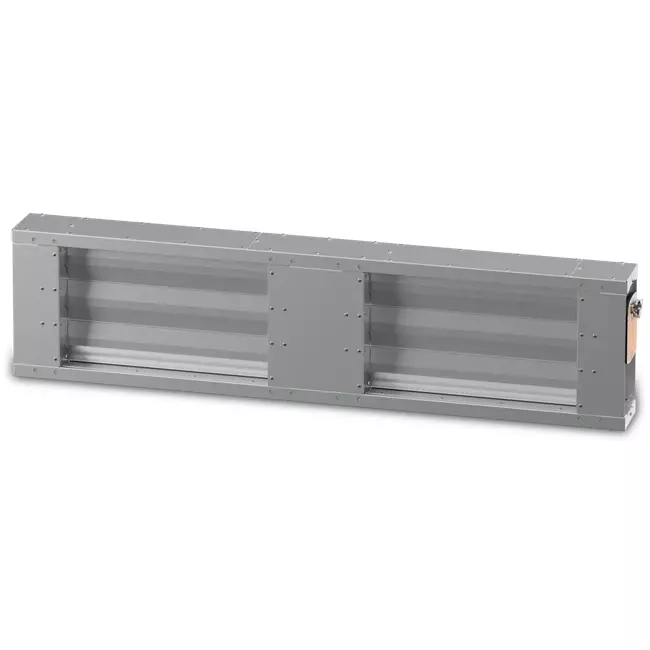

Motorised Shut-Off Damper with Spring Return for ETA K / RHE 2800 F - MAK F E 03/04 FR
The MAK F E 03/04 FR is an insulated motorised shut-off damper designed specifically for use with the ETA K / RHE 2800 F air handling unit. The damper is made of galvanized steel sheet and equipped with an actuator featuring a spring return function. This actuator operates on 230 V, 50/60 Hz and provides a torque of 4 Nm. Ideal for situations where the damper must close automatically in the event of a power failure.
Main Features
- Motorised shut-off damper: Ensures secure air sealing during power outages.
- Material: Insulated version made of galvanized steel sheet.
- Control: Open/close operation with automatic spring return mechanism.
- Actuator: 230 V, 50/60 Hz, 4 Nm.
Application
Suitable as a supply or exhaust damper in combination with the ETA K / RHE 2800 F air handling unit.
| Brand | Ruck ventilatoren GmbH |
| Category | Motorised shut-off valve |
| GTIN | 4061199043670 |
| Manufacturer's item number | MAK F E 03/04 FR |
| Article number | 65171355 |
Specifications
| Category code | 121 |
| Material | Steel |
| Surface protection | Other |

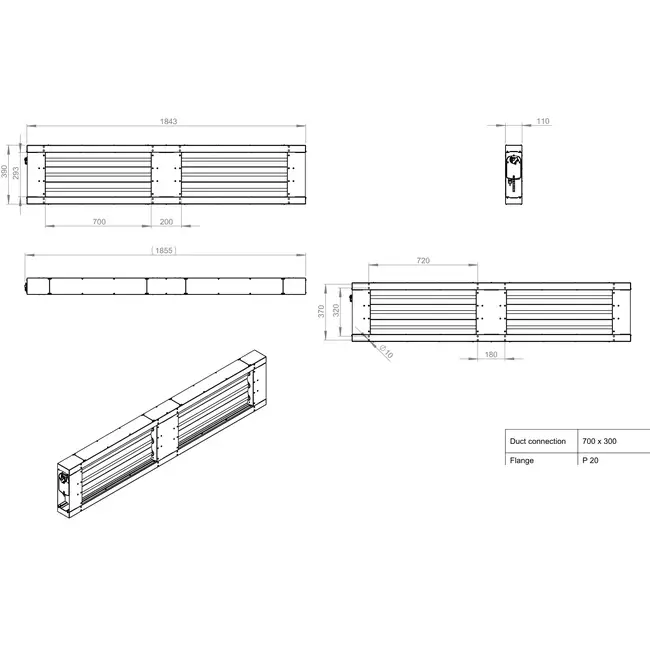

| Nominal duct width | 1843 mm |
| Nominal duct height | 390 mm |
| Connection 1 | Duct end |
| Connection 2 | Duct end |
| Lacquered | No |
| Can be used on solid walls/floors | No |
| Can be used directly against walls/floors | No |
| Can be used in separating partitions | No |
| Can be used at a distance from walls | No |
