Good points
- Galvanized steel
- Open-close, with 3-point control
- 230 V Servo Motor, 5 Nm
- Air Tightness Class EN 1751-2

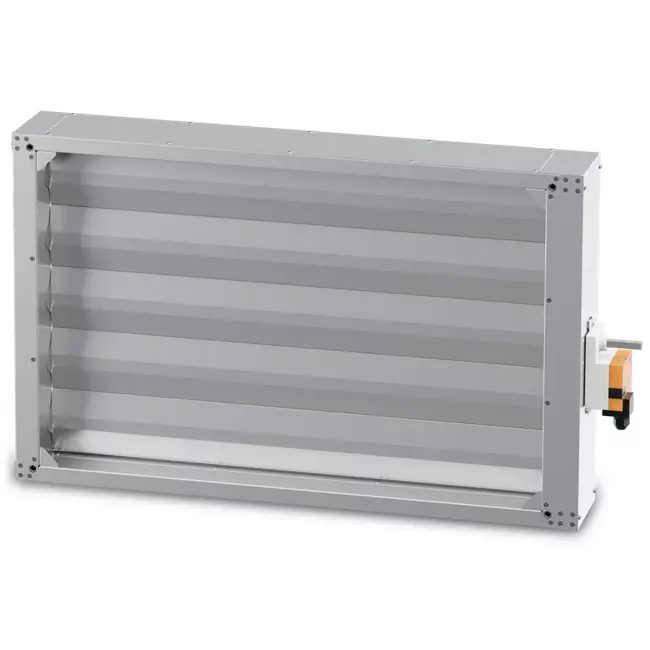

Motorised Shut-Off Damper with 3-Point Control for ETA K / PHE 4200/5000 V - MAK V E 01 02 3P
The MAK V E 01 02 3P is an insulated motorised shut-off damper, designed for use in conjunction with the ETA K / PHE 4200 V and ETA K / PHE 5000 V air handling units. The damper is made from galvanized steel sheet and equipped with a 230 V actuator featuring 3-point control for open/close operation. This version ensures effective air tightness and seamless integration into vertical air handling configurations.
Key Features
- Motorised Shut-Off Damper: Provides reliable air sealing in AHU systems.
- Material: Insulated construction from galvanized steel sheet.
- 3-Point Control: For open/close operation with intermediate positions.
- Actuator: 230 V, 50/60 Hz.
Application
Especially suitable as a supply or exhaust air damper for use with the ETA K 4200 V and ETA K 5000 V air handling units from Ruck.
| Brand | Ruck ventilatoren GmbH |
| Category | Motorised shut-off valve |
| GTIN | 4061199043403 |
| Manufacturer's item number | MAK V E 01 02 3P |
| Article number | 65171141 |
Specifications
| Category code | 121 |
| Material | Steel |
| Surface protection | Other |

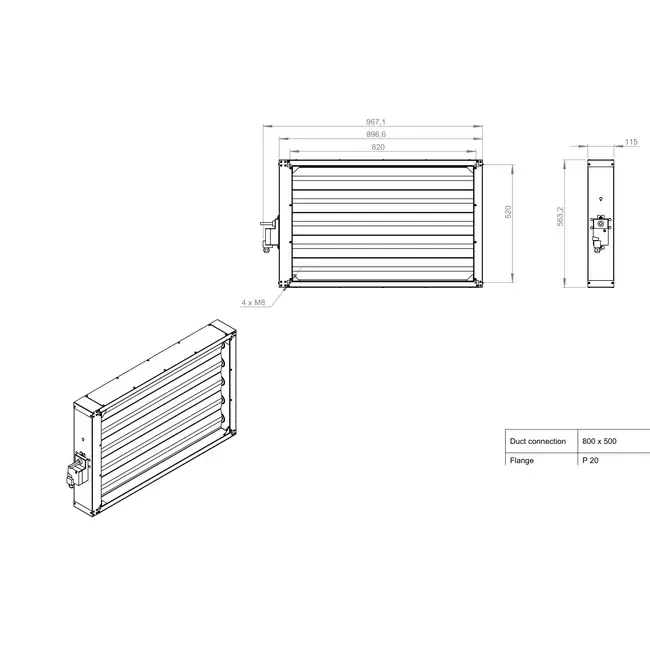

| Nominal duct width | 897 mm |
| Nominal duct height | 564 mm |
| Connection 1 | Duct end |
| Connection 2 | Duct end |
| Lacquered | No |
| Can be used on solid walls/floors | No |
| Can be used directly against walls/floors | No |
| Can be used in separating partitions | No |
| Can be used at a distance from walls | No |
| Length | 115 mm |
