Good points
- For use with an air handling unit
- Galvanized sheet steel, insulated
- Open-close, with 3-point control
- 230 V Servo Motor, 5 Nm

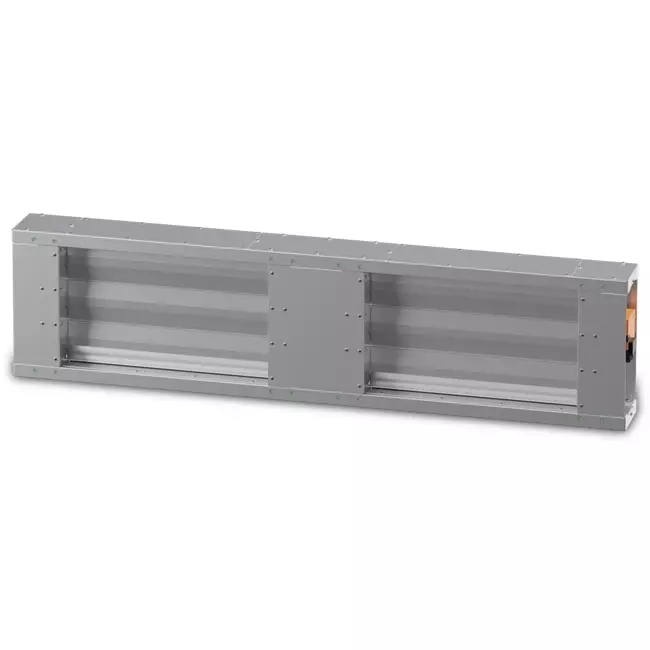

Motorised shut-off damper with 3-point control for ETA K / PHE 3500 F - MAK F E 05 3P
The MAK F E 05 3P is an insulated motorised shut-off damper, specifically designed for use with the ETA K / PHE 3500 F air handling unit. The damper is made of galvanized steel sheet and equipped with a 230 V actuator featuring 3-point control for open/close operation. This solution ensures reliable air sealing and easy integration into ventilation systems.
Key Features
- Motorised shut-off damper: For efficient air sealing in air handling installations.
- Material: Insulated construction made of galvanized steel sheet.
- 3-point control: Open/close operation with intermediate position control.
- Actuator: 230 V, 50/60 Hz.
Application
Ideal as supply or exhaust damper in combination with the ETA K / PHE 3500 F air handling unit.
| Brand | Ruck ventilatoren GmbH |
| Category | Motorised shut-off valve |
| GTIN | 4061199043816 |
| Manufacturer's item number | MAK F E 05 3P |
| Article number | 65171508 |
Specifications
| Category code | 121 |
| Material | Steel |
| Surface protection | Other |
| Connection 1 | Duct end |
| Connection 2 | Duct end |
| Can be used on solid walls/floors | No |
| Can be used directly against walls/floors | No |
| Can be used in separating partitions | No |
| Can be used at a distance from walls | No |
| Length | 110 mm |
