Good points
- For use with an air handling unit
- Galvanized sheet steel, insulated
- Open-close, with 3-point control
- 230 V Servo Motor, 5 Nm
Motorised Shut-Off Damper with 3-Point Control for ETA K / PHE 2800 F - MAK F E 03/04 3P
The MAK F E 03/04 3P is an insulated motorised shut-off damper designed for use in combination with the ETA K / PHE 2800 F air handling unit. The damper is constructed from galvanised sheet steel and equipped with a 230 V actuator featuring 3-point control for open/close operation. This damper provides reliable air sealing and is easy to integrate into the ventilation system.
Main Features
- Motorised shut-off damper: For precise air sealing in AHU systems.
- Material: Insulated construction using galvanised sheet steel.
- 3-point control: For open/close operation with intermediate position function.
- Actuator: 230 V, 50/60 Hz.
Application
Suitable as a supply or extract air damper in combination with the ETA K / PHE 2800 F air handling unit.
| Brand | Ruck ventilatoren GmbH |
| Category | Motorised shut-off valve |
| GTIN | 4061199043687 |
| Manufacturer's item number | MAK F E 03/04 3P |
| Article number | 65171363 |
Specifications
| Category code | 121 |
| Material | Steel |
| Surface protection | Other |

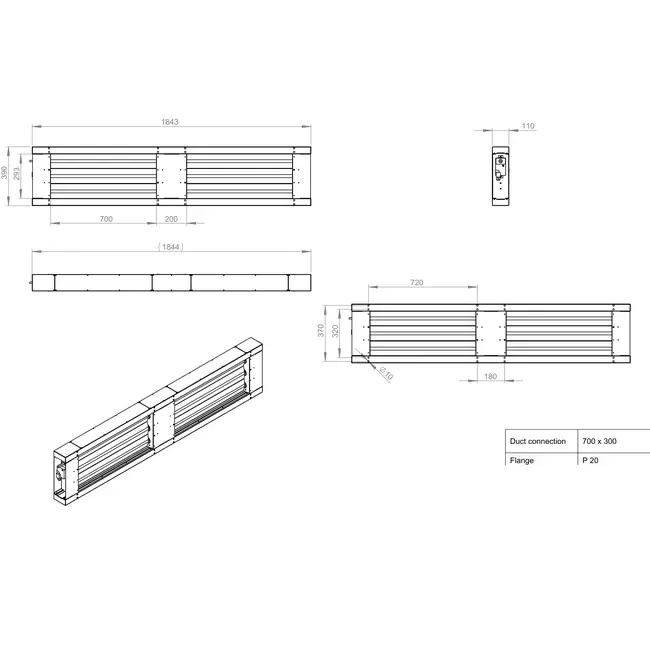

| Nominal duct width | 1843 mm |
| Nominal duct height | 390 mm |
| Connection 1 | Duct end |
| Connection 2 | Duct end |
| Lacquered | No |
| Can be used on solid walls/floors | No |
| Can be used directly against walls/floors | No |
| Can be used in separating partitions | No |
| Can be used at a distance from walls | No |
