- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- DX battery
- Plug & Play Integrated Controller

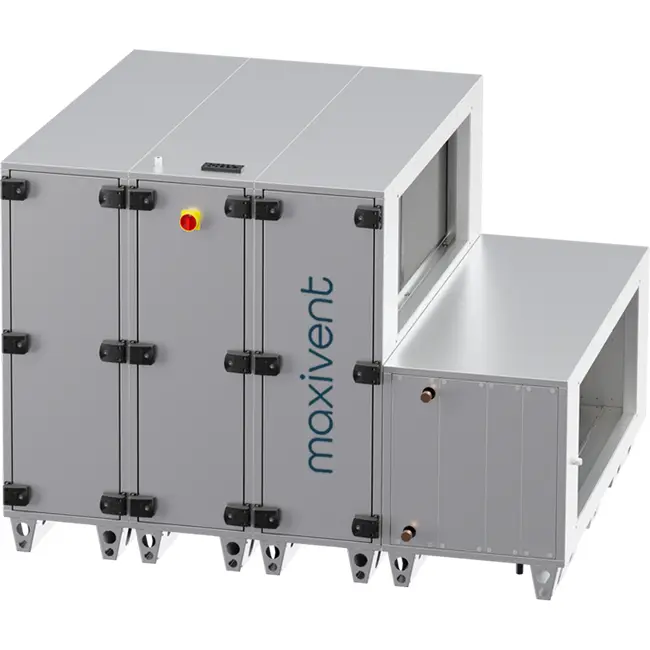

Maxivent WTW Air Handling Units with Heat Wheel 7600 m³/h with DX Coil Horizontal Right - RHE 7600 H ODJR T 02
The Maxivent WTW air handling units with heat wheel 7600 m³/h with DX coil horizontal right - RHE 7600 H ODJR T 02 is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, clinics, and medium to large commercial buildings. The air handling unit has a maximum airflow of 8730 m³/h and features an EN 308 and Eurovent-certified heat exchanger. The unit operates with a heat wheel and EC fans and is equipped with an integrated DX coil that can both heat and cool the supply air. It is designed for floor mounting and can be opened on the right side for maintenance.
Benefits and Features
- DX Coil (Heating and Cooling): A direct expansion unit that provides both heating and cooling of the supply air via a single integrated system, simplifying installation and delivering high comfort under varying outdoor temperatures.
- EC Fans: Directly driven EC plug fans with high-efficiency electronic commutation (EC) offer an energy-efficient and quiet solution with low power consumption.
- Heat Wheel: The integrated rotating heat wheel is certified according to EN 308 and Eurovent, independently verifying the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Ensures a high level of filtration of dust particles and contaminants from outside air, contributing to a healthy and comfortable indoor climate and protecting internal components.
- IP41 Protection: The unit is protected against dust and dripping water, allowing safe installation in technical spaces.
- Plug-and-Play Control: The air handling unit comes complete with built-in controls for all functions, enabling quick and easy installation and commissioning without additional control technology.
Applications and Use
The Maxivent WTW air handling units with heat wheel 7600 m³/h with DX coil horizontal right - RHE 7600 H ODJR T 02 are developed for medium to large commercial spaces such as offices, meeting rooms, clinics, retail, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and the integrated DX coil, the unit provides both heating and cooling in a compact and energy-efficient way.
Customising the WTW Unit
If you are interested in a customised model and want to learn more about the options available, please contact our sales department. They will be happy to assist you in designing the ideal unit for your specific needs.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342683 |
| Manufacturer's item number | 78010772 |
| Article number | 78010772 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor and outdoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 6645.6 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Thermal wheel |
| With bypass | No |
| Type of cooling coil | DX (direct expansion) |
| Type of heating coil | DX (direct expansion) |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 400 V |
| Power consumption | 2.77 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |

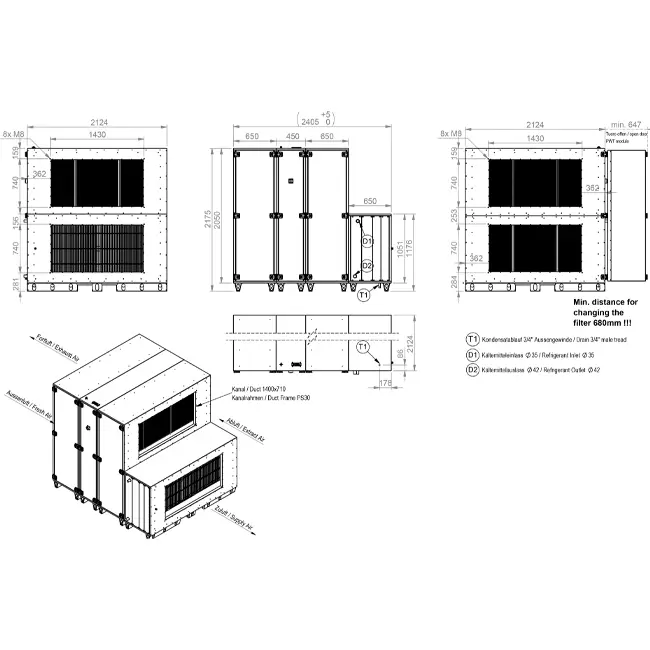

| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 600 mm |
| Nominal duct width of suction end | 1200 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 600 mm |
| Nominal duct width, delivery side | 1200 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |
| Height | 1635 mm |
| Width | 1710 mm |
| Length | 2400 mm |
