- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- DX battery
- Plug & Play Integrated Controller

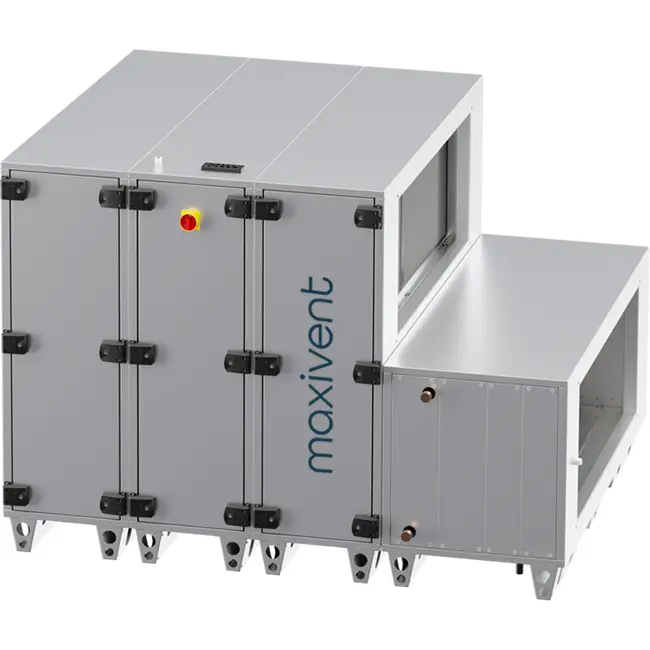

Maxivent WTW Air Handling Units with Heat Wheel 16000 m³/h with DX Coil Horizontal Left - RHE 16000 H ODJL T 01
The Maxivent WTW air handling units with heat wheel 16000 m³/h with DX coil horizontal left - RHE 16000 H ODJL T 01 is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, clinics, and medium to large commercial buildings. The air handling unit features a maximum airflow of 16,730 m³/h and is equipped with an EN 308 and Eurovent certified heat exchanger. The unit operates with a heat wheel and EC fans and includes an integrated DX coil capable of both heating and cooling the supply air. The AHU is designed for floor mounting and can be opened on the left side for maintenance access.
Benefits and Features
- DX Coil (Heating and Cooling): Direct expansion unit providing both heating and cooling of supply air through a single integrated system, simplifying installation and offering high comfort in varying outdoor temperatures.
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) deliver an energy-efficient and quiet solution with low electrical consumption.
- Heat Wheel: The integrated rotary heat wheel is certified according to EN 308 and Eurovent, independently verifying the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Ensures high filtration efficiency for dust particles and contaminants from outside air, contributing to a healthy and comfortable indoor climate while protecting internal components.
- IP41 Protection: The unit is protected against dust and dripping water, allowing safe installation in technical rooms.
- Plug-and-Play Control: The air handling unit comes complete with built-in controls for all functions, enabling quick and straightforward installation and commissioning without additional control systems.
Applications and Use
The Maxivent WTW air handling units with heat wheel 16000 m³/h with DX coil horizontal left - RHE 16000 H ODJL T 01 are designed for medium to large commercial spaces such as offices, meeting rooms, clinics, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and the integrated DX coil, the unit provides both heating and cooling in a compact and energy-efficient way.
Customising the WTW Unit
If you are interested in a customised model and want to learn more about the options, please contact our sales department. They are happy to assist you and help design the ideal unit tailored to your specific requirements.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342539 |
| Manufacturer's item number | 78010757 |
| Article number | 78010757 |
Specifications
| Category code | 36 |

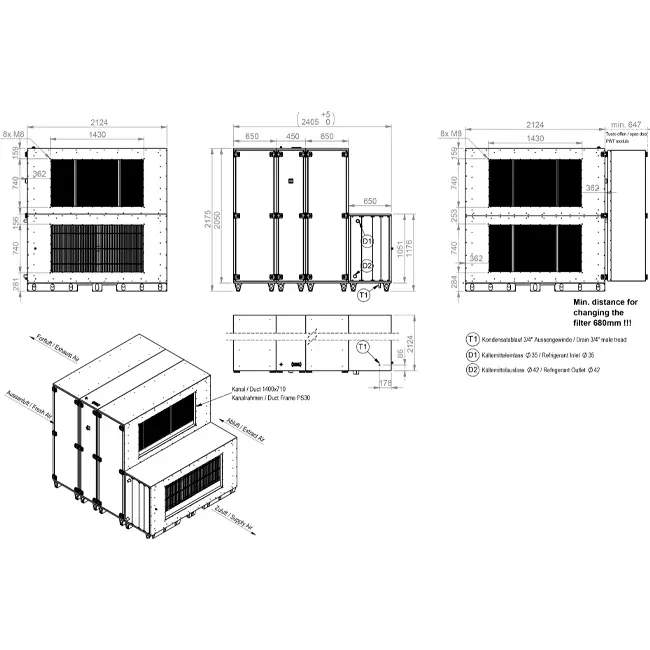

| Length | 1750 mm |
| Width | 2124 mm |
| Height | 2050 mm |
| Housing material | Steel |
| Heat recovery by | Thermal wheel |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 400 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor and outdoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 13978.8 m³/h |
| Type of heating coil | DX (direct expansion) |
| Type of exhaust fan | Direct |
| Power consumption | 6.42 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | DX (direct expansion) |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 2100 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 2100 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 1000 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 1000 mm |
| Number of connections suction side | 2 |
