Good points
- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- No heating, no cooling
- Plug & Play Integrated Controller

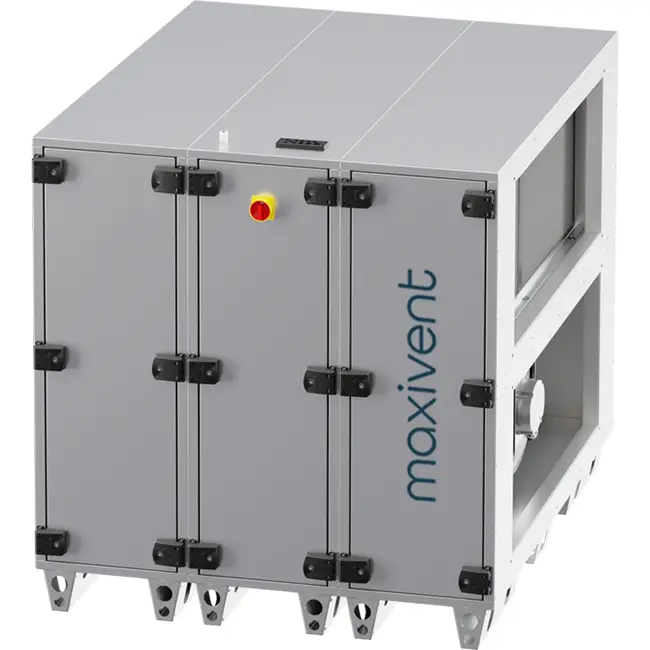

Maxivent WTW Air Handling Units with Heat Wheel 10000 m³/h Horizontal Right - RHE 10000 H OOJR T 01
The Maxivent WTW air handling units with heat wheel 10000 m³/h horizontal right - RHE 10000 H OOJR T 01 is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, practices, and medium to large commercial buildings. The air handling unit has a maximum airflow of 12,350 m³/h and features an EN 308 and Eurovent certified heat exchanger. The unit operates with a heat wheel and EC fans, is designed for floor mounting, and can be opened on the right side for maintenance.
Advantages and Features
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) provide an energy-efficient and quiet solution with low electricity consumption.
- Heat Wheel: The integrated rotating heat wheel is certified according to EN 308 and Eurovent, independently verifying the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Ensures a high level of filtration of dust particles and contaminants from the outside air, contributing to a healthy and comfortable indoor climate and protection of internal components.
- IP41 Protection: The unit is protected against dust and dripping water, allowing safe installation in technical rooms.
- Plug-and-Play Control: The air handling unit comes complete with built-in control for all functions, enabling quick and easy installation and commissioning without additional control systems.
Applications and Usage
The Maxivent WTW air handling units with heat wheel 10000 m³/h horizontal right - RHE 10000 H OOJR T 01 is designed for medium to large commercial spaces such as offices, meeting rooms, practices, retail outlets, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit provides stable and energy-efficient ventilation.
Customising the WTW Unit
Are you interested in a customised model and would like to learn more about the possibilities? Please contact our sales department. They are happy to assist and help you assemble the ideal unit for your situation.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342546 |
| Manufacturer's item number | 78010758 |
| Article number | 78010758 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor and outdoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 8208 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Thermal wheel |
| With bypass | No |
| Type of cooling coil | None |
| Type of heating coil | None |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 400 V |
| Power consumption | 3.07 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 600 mm |
| Nominal duct width of suction end | 1200 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 600 mm |
| Nominal duct width, delivery side | 1200 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |

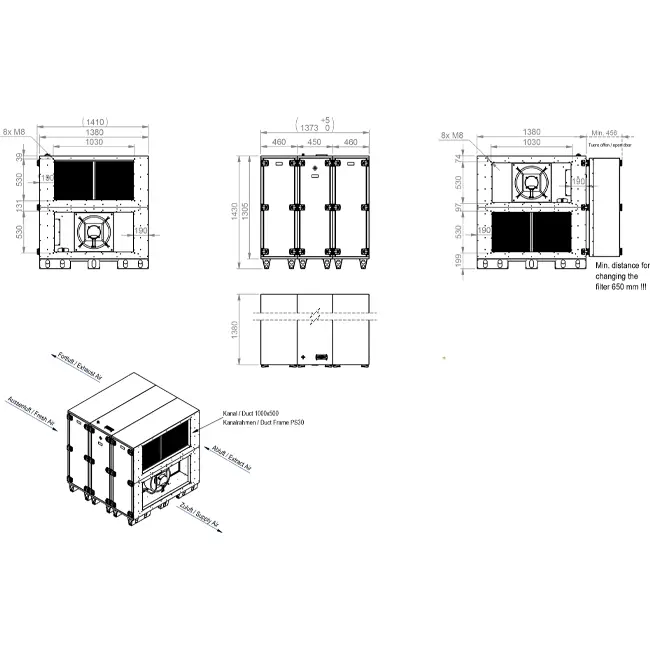

| Height | 1635 mm |
| Width | 1710 mm |
| Length | 2400 mm |
