Good points
- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- No heating, no cooling
- Plug & Play Integrated Controller

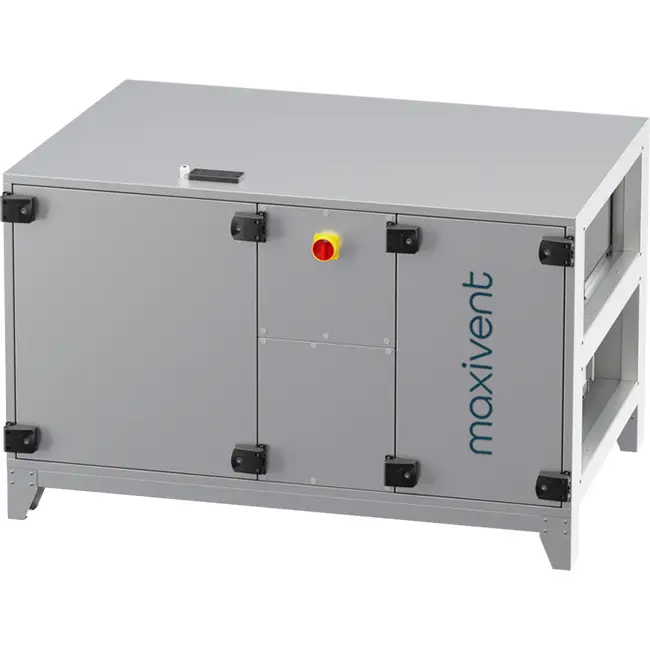

Maxivent WTW Air Handling Units with Rotary Heat Exchanger 3400 m3/h Horizontal Right - RHE 3400 H OOJR
The Maxivent WTW air handling units with rotary heat exchanger 3400 m³/h horizontal right - RHE 3400 H OOJR is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, medical practices, and small to medium-sized commercial buildings. The air handling unit has a maximum airflow of 3790 m³/h and features a heat exchanger certified according to EN 308 and Eurovent. The unit operates with a rotary heat exchanger and EC fans, is designed for floor mounting, and can be opened on the right side for maintenance.
Benefits and Features
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) offer an energy-efficient and quiet solution with low electricity consumption.
- Rotary Heat Exchanger: The integrated rotary heat exchanger is certified according to EN 308 and Eurovent, independently confirming the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Provides a high level of filtration of dust particles and contaminants from outdoor air, contributing to a healthy and comfortable indoor climate and protecting the internal components.
- IP41 Protection: The unit is protected against dust and dripping water, making it safe to install in technical rooms.
- Plug-and-Play Control: The air handling unit is delivered complete with built-in controls for all functions, allowing installation and commissioning to be quick and straightforward without the need for additional control technology.
Applications and Usage
The Maxivent WTW air handling units with rotary heat exchanger 3400 m³/h horizontal right - RHE 3400 H OOJR are designed for small to medium-sized commercial spaces such as offices, meeting rooms, medical practices, retail, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit provides stable and energy-efficient ventilation.
Customising the WTW Unit
Are you interested in a customised model and want to know more about the possibilities? Please contact our sales department. They are happy to think along with you and assist in assembling the ideal unit for your specific situation.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342096 |
| Manufacturer's item number | 78010713 |
| Article number | 78010713 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor and outdoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 3445.2 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Thermal wheel |
| With bypass | No |
| Type of cooling coil | None |
| Type of heating coil | None |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 400 V |
| Power consumption | 1.87 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 400 mm |
| Nominal duct width of suction end | 900 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 400 mm |
| Nominal duct width, delivery side | 900 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |
| Height | 1190 mm |
| Width | 1111 mm |
| Length | 1675 mm |
