- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- Hot-water faucet and cold-water faucet
- Plug & Play Integrated Controller

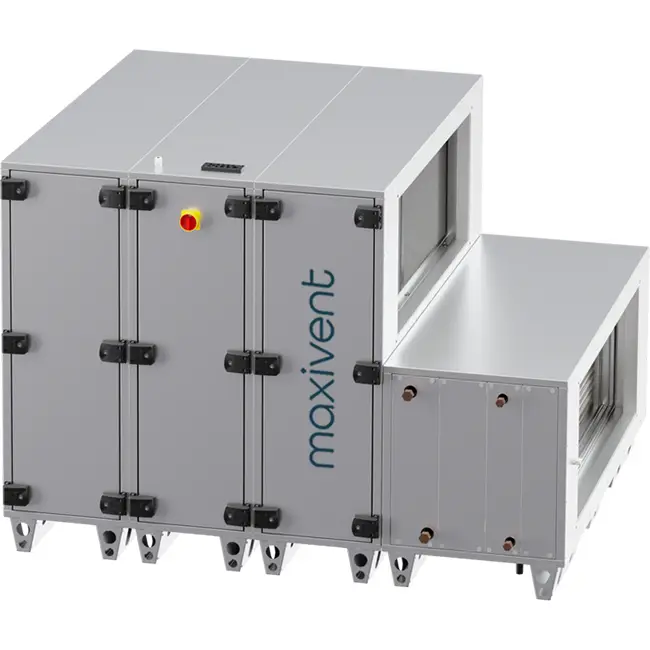

Maxivent WTW Air Handling Units with Heat Wheel 7600 m³/h with Hot Water Coil and Chilled Water Coil Horizontal Right - RHE 7600 H WKJR T 02
The Maxivent WTW air handling units with heat wheel 7600 m³/h with hot water coil and chilled water coil horizontal right - RHE 7600 H WKJR T 02 are high-quality, robust, and advanced balanced ventilation units with heat recovery, specially designed for offices, medical practices, and medium to large commercial buildings. The air handling unit offers a maximum airflow of 8740 m³/h and features an EN 308 and Eurovent-certified heat exchanger. The unit operates with a heat wheel and EC fans and is equipped with a hot water coil for heating and a chilled water coil for cooling the supply air. The AHU is designed for floor mounting and can be opened on the right side for maintenance.
Benefits and Features
- Hot Water Coil: Provides efficient and uniform heating of the supply air by utilising hot water from a central heating system or heat pump, resulting in a comfortable indoor climate and energy-efficient heat transfer.
- Chilled Water Coil: Cools the supply air using chilled water from a cooling system, enabling energy-efficient and precisely controllable cooling of the room air.
- EC Fans: Directly driven EC plug fans with high-efficiency electronic commutation (EC) offer an energy-saving and quiet solution with low electricity consumption.
- Heat Wheel: The integrated rotary heat wheel is certified according to EN 308 and Eurovent, independently verifying the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Ensures a high level of filtration of dust particles and contaminants from outside air, contributing to a healthy and comfortable indoor environment and protection of internal components.
- IP41 Protection: The unit is protected against dust and dripping water, allowing safe installation in technical rooms.
- Plug-and-Play Control: The air handling unit is delivered complete with built-in control for all functions, ensuring quick and easy installation and commissioning without additional control engineering.
Applications and Usage
The Maxivent WTW air handling units with heat wheel 7600 m³/h with hot water coil and chilled water coil horizontal right - RHE 7600 H WKJR T 02 are designed for medium to large commercial spaces such as offices, meeting rooms, medical practices, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, hot water coil, and chilled water coil, the unit provides comprehensive and precisely controllable climate control throughout the year.
Customising the WTW Unit
Are you interested in a customised model and want to learn more about the options? Please contact our sales department. They will be happy to advise you and assist in configuring the ideal unit for your specific situation.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342669 |
| Manufacturer's item number | 78010770 |
| Article number | 78010770 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor and outdoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 6688.8 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Thermal wheel |
| With bypass | No |
| Type of cooling coil | Water/glycol |
| Type of heating coil | Hot water heat exchanger |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 400 V |
| Power consumption | 2.88 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 600 mm |
| Nominal duct width of suction end | 1200 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 600 mm |
| Nominal duct width, delivery side | 1200 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |
| Height | 1760 mm |
| Width | 1743 mm |
| Length | 2405 mm |
