Good points
- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- Hot Water Tank
- Plug & Play Integrated Controller

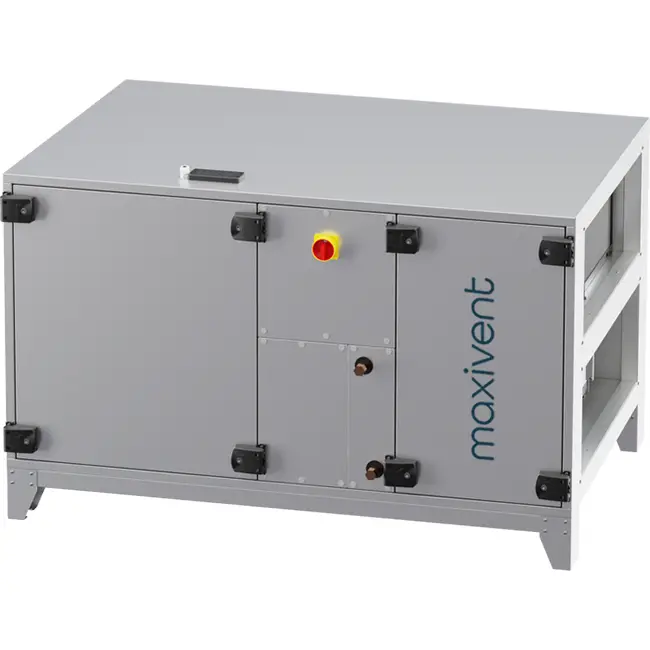

Maxivent WTW Air Handling Units with Heat Wheel 3400 m3/h with Hot Water Coil Horizontal Right - RHE 3400 H WOJR
The Maxivent WTW air handling units with heat wheel 3400 m3/h with hot water coil horizontal right - RHE 3400 H WOJR is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, practices, and small to medium-sized commercial buildings. The air handling unit has a maximum airflow of 3725 m³/h and an EN 308 and Eurovent certified heat exchanger. The unit operates with a heat wheel and EC fans and is equipped with a hot water coil that heats the supply air to the desired temperature while helping to prevent frost formation in the heat exchanger. The air handling unit is designed for floor mounting and can be opened on the right side for maintenance.
Advantages and Features
- Hot Water Coil: Ensures efficient and even heating of the supply air by utilising hot water from a central heating system or heat pump, resulting in a comfortable indoor climate and energy-efficient heat transfer.
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) provide an energy-efficient and quiet solution with low electricity consumption.
- Heat Wheel: The integrated rotating heat wheel is certified according to EN 308 and Eurovent, independently verifying the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Provides a high level of filtration of dust particles and contaminants from outside air, contributing to a healthy and comfortable indoor climate as well as protection of internal components.
- IP41 Protection: The unit is protected against dust and dripping water, allowing safe installation in technical rooms.
- Plug-and-Play Control: The air handling unit comes complete with built-in controls for all functions, enabling quick and straightforward installation and commissioning without additional control systems.
Applications and Usage
The Maxivent WTW air handling units with heat wheel 3400 m3/h with hot water coil horizontal right - RHE 3400 H WOJR are developed for small to medium-sized commercial spaces such as offices, meeting rooms, practices, shops, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and the hot water coil, the unit delivers stable and energy-efficient ventilation, also at low outdoor temperatures.
Customising the WTW Unit
If you are interested in a customised model and want to know more about the options, please contact our sales department. They are happy to assist you and help you configure the ideal unit for your situation.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342102 |
| Manufacturer's item number | 78010714 |
| Article number | 78010714 |
Specifications
| Category code | 36 |
| Length | 1675 mm |
| Width | 1111 mm |
| Height | 1190 mm |
| Housing material | Steel |
| Heat recovery by | Thermal wheel |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 400 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor and outdoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 3441.6 m³/h |
| Type of heating coil | Hot water heat exchanger |
| Type of exhaust fan | Direct |
| Power consumption | 1.91 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | None |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 900 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 900 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 400 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 400 mm |
| Number of connections suction side | 2 |
