Good points
- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- Hot-water faucet and cold-water faucet
- Plug & Play Integrated Controller

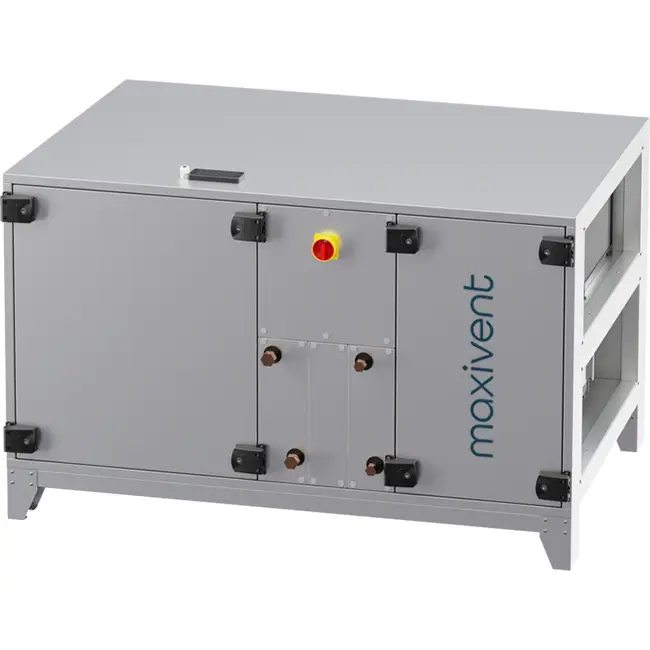

Maxivent WTW Air Handling Units with Heat Wheel 2000 m³/h with Hot Water Coil and Chilled Water Coil Horizontal Right - RHE 2000 H WKJR
The Maxivent WTW air handling units with heat wheel 2000 m³/h, equipped with a hot water coil and chilled water coil in a horizontal right configuration - RHE 2000 H WKJR, are high-quality, robust, and advanced balanced ventilation units with heat recovery. They are specifically designed for offices, medical practices, and small to medium-sized commercial buildings. The AHU has a maximum airflow of 2755 m³/h and features an EN 308 and Eurovent certified heat exchanger. The unit operates with a heat wheel and EC fans and includes a hot water coil for heating and a chilled water coil for cooling the supply air. The air handling unit is designed for floor mounting and can be opened on the right side for maintenance access.
Benefits and Features
- Hot Water Coil: Provides efficient and even heating of the supply air by utilising hot water from a central heating system or heat pump, resulting in a comfortable indoor climate and energy-efficient heat transfer.
- Chilled Water Coil: Cools the supply air using chilled water from a cooling system, enabling energy-efficient and precisely controllable space cooling.
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation deliver an energy-saving and quiet solution with low power consumption.
- Heat Wheel: The integrated rotating heat wheel is certified according to EN 308 and Eurovent, independently verifying the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Ensures high filtration efficiency of dust particles and contaminants from the outside air, contributing to a healthy and comfortable indoor environment and protecting internal components.
- IP41 Protection: The unit is protected against dust and dripping water, allowing safe installation in technical rooms.
- Plug-and-Play Control: The air handling unit is supplied complete with built-in controls for all functions, enabling quick and simple installation and commissioning without additional control technology.
Applications and Usage
The Maxivent WTW air handling units with heat wheel 2000 m³/h with hot water coil and chilled water coil horizontal right - RHE 2000 H WKJR are designed for small to medium-sized commercial spaces such as offices, meeting rooms, medical practices, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, hot water coil, and chilled water coil, the unit delivers comprehensive and precisely controllable climate control throughout the year.
Customising the WTW Unit
Are you interested in a customised model and want to know more about the possibilities? Please contact our sales department. They will be happy to assist you and help you configure the ideal unit for your specific requirements.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342041 |
| Manufacturer's item number | 78010708 |
| Article number | 78010708 |
Specifications
| Category code | 36 |
| Length | 1590 mm |
| Width | 912 mm |
| Height | 900 mm |
| Housing material | Steel |
| Heat recovery by | Thermal wheel |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 400 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor and outdoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 2134.8 m³/h |
| Type of heating coil | Hot water heat exchanger |
| Type of exhaust fan | Direct |
| Power consumption | 1 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | Water/glycol |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 700 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 700 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 300 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 300 mm |
| Number of connections suction side | 2 |
