- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- DX battery
- Plug & Play Integrated Controller

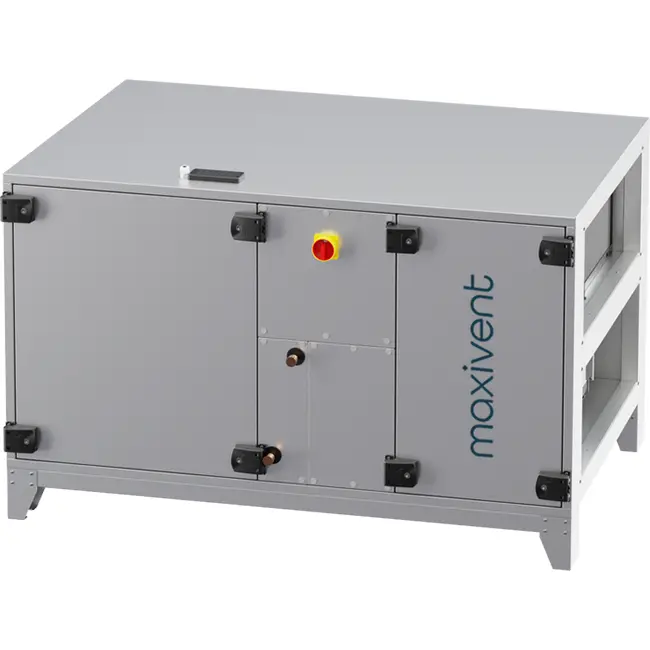

Maxivent WTW Air Handling Units with Heat Wheel 2000 m³/h with DX Coil Horizontal Left - RHE 2000 H ODJL
The Maxivent WTW air handling units with heat wheel 2000 m³/h and DX coil horizontal left - RHE 2000 H ODJL are high-quality, robust, and advanced balanced ventilation units with heat recovery. They are specially designed for offices, medical practices, and small to medium-sized commercial buildings. The AHU offers a maximum airflow of 2775 m³/h and features a heat exchanger certified according to EN 308 and Eurovent. The unit operates with a heat wheel and EC fans and includes an integrated DX coil that can both heat and cool the supply air. The unit is designed for floor mounting and can be accessed from the left side for maintenance.
Benefits and Features
- DX Coil (Heating and Cooling): Direct expansion system that provides both heating and cooling of the supply air through one integrated system, simplifying installation while delivering high comfort during varying outdoor temperatures.
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) offer an energy-efficient and quiet solution with low power consumption.
- Heat Wheel: The integrated rotary heat wheel is certified according to EN 308 and Eurovent, independently confirming the reliability and quality of heat and moisture recovery.
- Panel Filter F7/M5: Ensures a high level of filtration of dust particles and pollutants from outdoor air, contributing to a healthy and comfortable indoor climate and protecting internal components.
- IP41 Protection: The unit is protected against dust and dripping water, allowing safe installation in technical rooms.
- Plug-and-Play Control: The air handling unit is delivered complete with built-in control for all functions, enabling quick and easy installation and commissioning without additional control systems.
Applications and Usage
The Maxivent WTW air handling units with heat wheel 2000 m³/h and DX coil horizontal left - RHE 2000 H ODJL are developed for small to medium commercial spaces such as offices, meeting rooms, medical practices, retail outlets, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and the integrated DX coil, the unit provides both heating and cooling in a compact and energy-efficient manner.
Customising the WTW Unit
Are you interested in a customised model and want to learn more about the options? Please contact our sales department. They will gladly assist you in designing the ideal unit tailored to your specific requirements.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342188 |
| Manufacturer's item number | 78010722 |
| Article number | 78010722 |
Specifications
| Category code | 36 |
| Length | 1590 mm |
| Width | 912 mm |
| Height | 900 mm |
| Housing material | Steel |
| Heat recovery by | Thermal wheel |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 400 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor and outdoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 2138.4 m³/h |
| Type of heating coil | DX (direct expansion) |
| Type of exhaust fan | Direct |
| Power consumption | 1.06 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | DX (direct expansion) |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 700 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 700 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 300 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 300 mm |
| Number of connections suction side | 2 |
