Good points
- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- Hot Water Mixer
- Plug & Play Integrated Controller

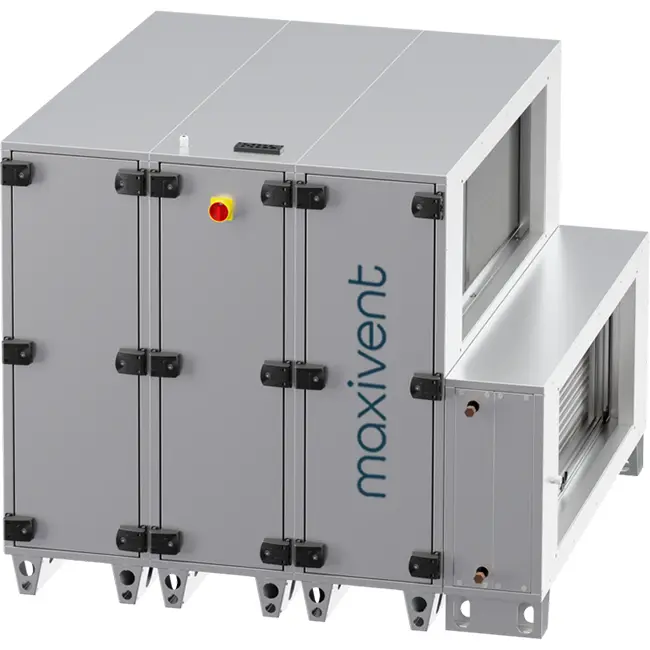

Maxivent WTW Air Handling Units with 10,000 m3/h Rotary Heat Wheel and Right Horizontal Hot Water Coil - RHE 10000 H WOJR T 01
The Maxivent WTW air handling units with a 10,000 m3/h rotary heat wheel and right horizontal hot water coil - RHE 10000 H WOJR T 01 are high-quality, robust, and advanced balanced ventilation units with heat recovery, specifically designed for offices, medical practices, and medium to large commercial buildings. The air handling unit has a maximum airflow of 12,050 m³/h and features an EN 308 and Eurovent-certified heat exchanger. The unit operates with a rotary heat wheel and EC fans and includes a hot water coil that heats the supply air to the desired temperature while preventing frost formation within the heat exchanger. This air handling unit is designed for floor mounting and can be opened from the right side for maintenance access.
Advantages and Features
- Hot Water Coil: Ensures efficient and even heating of the supply air by using hot water from a central heating system or heat pump, resulting in a comfortable indoor climate and energy-efficient heat transfer.
- EC Fans: Directly driven EC plug fans with high-efficiency electronic commutation (EC) provide an energy-saving and quiet operation with low electrical consumption.
- Rotary Heat Wheel: The integrated rotary heat wheel is certified in accordance with EN 308 and Eurovent, independently verifying the reliability and quality of both heat and moisture recovery.
- Panel Filter F7/M5: Provides a high degree of filtration for dust particles and pollutants from outdoor air, contributing to a healthy and comfortable indoor environment while protecting internal components.
- IP41 Protection: The unit is protected against dust ingress and dripping water, allowing safe installation in technical plant rooms.
- Plug-and-Play Control: The air handling unit is supplied complete with built-in control for all functions, enabling quick and straightforward installation and commissioning without additional control systems.
Applications and Usage
The Maxivent WTW air handling units with a 10,000 m3/h rotary heat wheel and right horizontal hot water coil - RHE 10000 H WOJR T 01 are developed for medium to large commercial spaces such as offices, meeting rooms, medical practices, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and the hot water coil, the unit provides stable and energy-efficient ventilation, even at low outdoor temperatures.
Customising the WTW Unit
Interested in a customised model or want to learn more about the available options? Please contact our sales department. They are happy to assist you and help design the ideal unit for your specific requirements.
| Brand | Maxivent |
| Category | Maxivent RHE Heat Wheel - Side Connection |
| GTIN | 8719544342553 |
| Manufacturer's item number | 78010759 |
| Article number | 78010759 |
Specifications
| Category code | 36 |

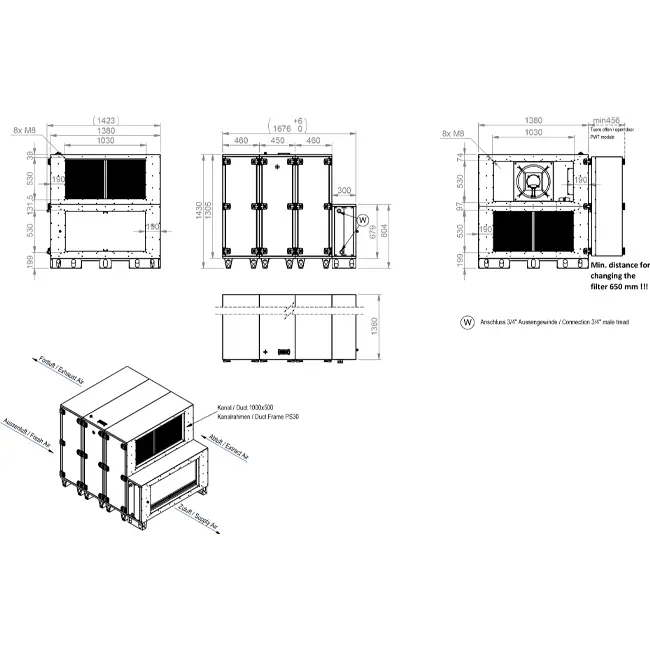

| Length | 2400 mm |
| Width | 1710 mm |
| Height | 1635 mm |
| Housing material | Steel |
| Heat recovery by | Thermal wheel |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | No |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 400 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor and outdoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 8146.8 m³/h |
| Type of heating coil | Hot water heat exchanger |
| Type of exhaust fan | Direct |
| Power consumption | 3.09 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | None |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 1200 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 1200 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 600 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 600 mm |
| Number of connections suction side | 2 |
