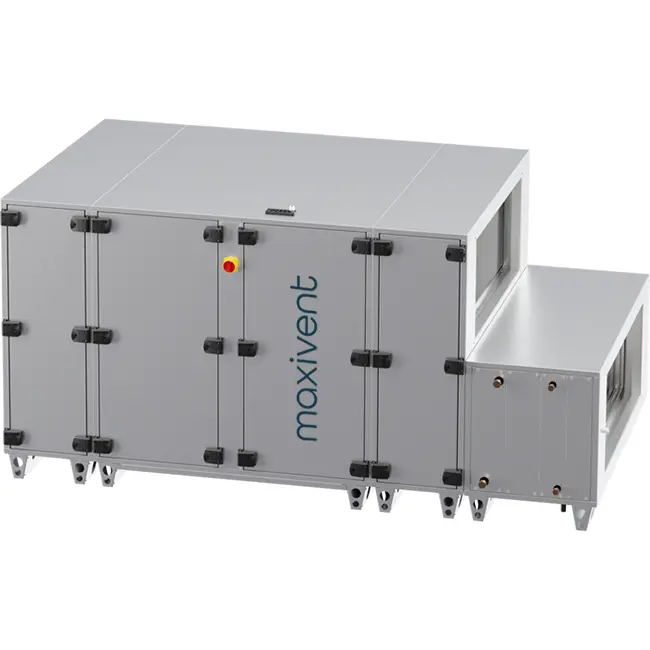

Maxivent WTW Air Handling Units with Counterflow Heat Exchanger 7600 m³/h with Hot Water Coil and DX Cooling Horizontal Right - PHE 7600 H WDJR T 02
The Maxivent WTW air handling units with counterflow heat exchanger 7600 m³/h featuring a hot water coil and DX cooling horizontal right - PHE 7600 H WDJR T 02 is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, medical practices, and medium to large commercial buildings. The air handling unit has a maximum airflow of 10,365 m³/h and a thermal efficiency of 82%. The unit operates with a counterflow heat exchanger and EC fans and is equipped with a hot water coil for heating and a DX cooling coil for cooling the supply air. The AHU is designed for floor mounting and can be opened on the right side for maintenance.
Advantages and Features
- Hot Water Coil: Provides efficient and uniform heating of the supply air by utilising hot water from a central heating system or heat pump, resulting in a comfortable indoor climate and energy-efficient heat transfer.
- DX Cooling Coil: Directly cools the supply air via direct expansion, ensuring a comfortable indoor environment during warm periods without the need for an additional chilled water system.
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation offer an energy-saving and quiet solution with low power consumption.
- Counterflow Heat Exchanger: The integrated, efficient counterflow heat exchanger recovers 82% of thermal energy from the exhaust air without mixing the air streams.
- Panel Filter F7/M5: Provides high filtration of dust particles and pollutants from outside air, contributing to a healthy and comfortable indoor climate while protecting internal components.
- Automatic Summer Bypass: Enables summer and night cooling by allowing cool outside air to be supplied directly without warming in the heat exchanger.
- Plug-and-Play Control: The air handling unit comes complete with integrated controls for all functions, ensuring quick and straightforward installation and commissioning without any additional control equipment.
Applications and Usage
The Maxivent WTW air handling units with counterflow heat exchanger 7600 m³/h with hot water coil and DX cooling horizontal right - PHE 7600 H WDJR T 02 are developed for medium to large commercial spaces such as offices, meeting rooms, medical practices, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, hot water coil, and DX cooling, the unit delivers comprehensive and energy-efficient climate control, even under extreme outdoor temperatures. The integrated control system and summer bypass ensure a comfortable indoor climate year-round, both in winter and during warm periods.
Customising the WTW Unit
Are you interested in a customised model and would like to learn more about the options? Please contact our sales department. They are happy to assist you and help you configure the ideal unit for your specific requirements.
| Brand | Maxivent |
| Category | Maxivent PHE Counterflow - Side Connection |
| GTIN | 8719544342836 |
| Manufacturer's item number | 78010787 |
| Article number | 78010787 |
Specifications
| Category code | 36 |
| Length | 2840 mm |
| Width | 1710 mm |
| Height | 1760 mm |
| Housing material | Steel |
| Heat recovery by | Counter current unit |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 400 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 6206.4 m³/h |
| Type of heating coil | Hot water heat exchanger |
| Type of exhaust fan | Direct |
| Power consumption | 2.69 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | DX (direct expansion) |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 1200 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 1200 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 600 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 600 mm |
| Number of connections suction side | 2 |
