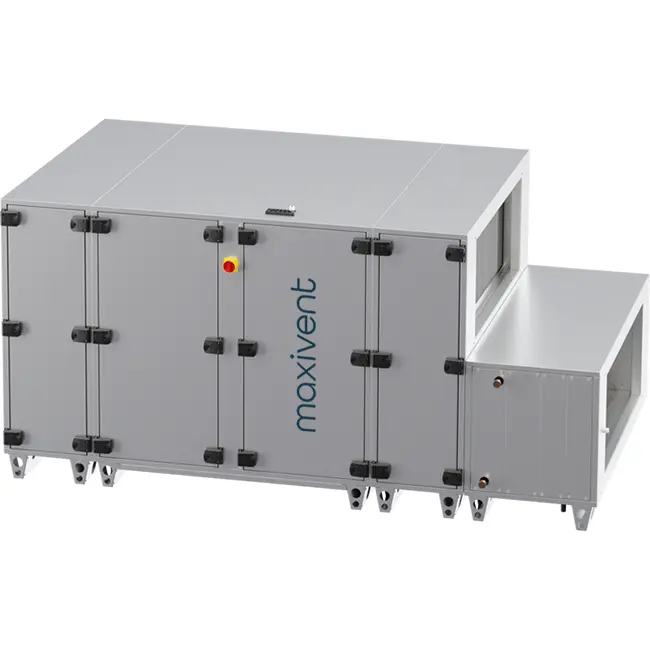

Maxivent WTW Air Handling Units with Counterflow Heat Exchanger 7600 m³/h with DX Coil Horizontal Left - PHE 7600 H ODJL T 02
The Maxivent WTW air handling units with counterflow heat exchanger 7600 m³/h with DX coil horizontal left - PHE 7600 H ODJL T 02 is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, medical practices, and medium to large commercial buildings. The air handling unit has a maximum airflow capacity of 10,510 m³/h and a thermal efficiency of 82%. The unit operates with a counterflow heat exchanger and EC fans and is equipped with an integrated DX coil capable of both heating and cooling the supply air. It is intended for floor mounting and can be accessed from the left side for maintenance.
Benefits and Features
- DX Coil (heating and cooling): Direct expansion unit that provides both heating and cooling of the supply air through a single integrated system, simplifying installation while ensuring high comfort under fluctuating outdoor temperatures.
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) offer an energy-efficient and quiet solution with low electricity consumption.
- Counterflow Heat Exchanger: The integrated, efficient counterflow heat exchanger recovers 82% of thermal energy from the exhaust air without mixing the air streams.
- Panel Filter F7/M5: Provides a high level of filtration for dust particles and contaminants from outdoor air, contributing to a healthy and comfortable indoor climate and protecting internal components.
- Automatic Summer Bypass: Enables summer and night cooling by supplying cool outdoor air directly without warming in the heat exchanger.
- Plug-and-Play Control: The air handling unit is delivered complete with built-in control for all functions, allowing quick and easy installation and commissioning without additional control technology.
Applications and Usage
The Maxivent WTW air handling units with counterflow heat exchanger 7600 m³/h with DX coil horizontal left - PHE 7600 H ODJL T 02 are developed for medium to large commercial spaces such as offices, meeting rooms, medical practices, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and the integrated DX coil, the unit provides both heating and cooling in a compact and energy-efficient manner. The integrated control and summer bypass ensure that the indoor climate remains comfortable throughout the year, both in winter and warm periods.
Customising the WTW Unit
If you are interested in a customised model and want to know more about the possibilities, please contact our sales department. They are happy to assist you and help you configure the ideal unit for your specific situation.
| Brand | Maxivent |
| Category | Maxivent PHE Counterflow - Side Connection |
| GTIN | 8719544342829 |
| Manufacturer's item number | 78010786 |
| Article number | 78010786 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 6206.4 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Counter current unit |
| With bypass | Yes |
| Type of cooling coil | DX (direct expansion) |
| Type of heating coil | DX (direct expansion) |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 400 V |
| Power consumption | 2.6 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 600 mm |
| Nominal duct width of suction end | 1200 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 600 mm |
| Nominal duct width, delivery side | 1200 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |
| Height | 1760 mm |
| Width | 1710 mm |
| Length | 2840 mm |
