- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- No heating, no cooling
- Plug & Play Integrated Controller

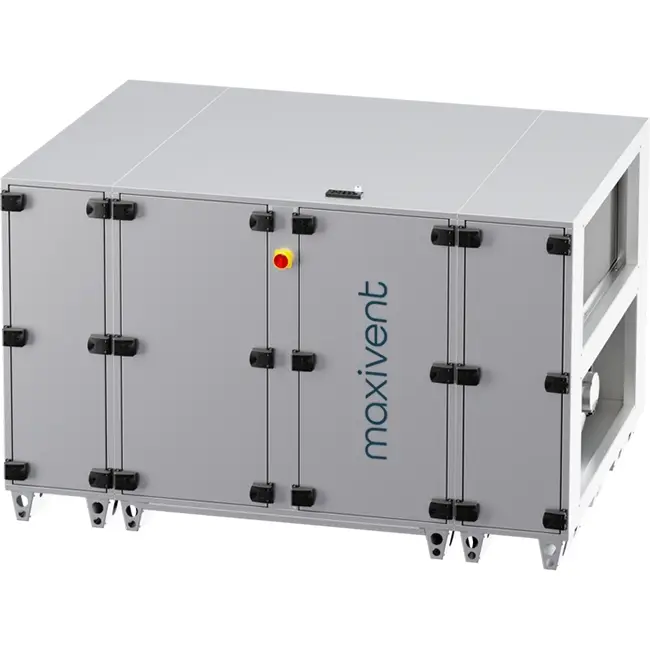

Maxivent WTW Air Handling Units with Counterflow Heat Exchanger 7600 m3/h Horizontal Horizontal Left - PHE 7600 H OOJL T 02
The Maxivent WTW air handling units with counterflow heat exchanger 7600 m3/h horizontal horizontal left - PHE 7600 H OOJL T 02 is a high-quality, robust, and advanced balanced ventilation unit featuring heat recovery, specifically designed for offices, medical practices, and medium to large commercial buildings. The air handling unit has a maximum airflow capacity of 10,670 m³/h and a thermal efficiency of 82%. The unit operates with a counterflow heat exchanger and EC fans, is designed for floor mounting, and can be opened from the left side for maintenance.
Benefits and Features
- EC Fans: Direct-driven EC plug fans with high-efficiency electronically commutated (EC) motors provide an energy-efficient and quiet solution with low power consumption.
- Counterflow Heat Exchanger: The integrated, efficient counterflow heat exchanger recovers 82% of the thermal energy from the exhaust air without mixing air streams.
- Panel Filter F7/M5: Ensures a high level of filtration of dust particles and pollutants from the outside air, contributing to a healthy and comfortable indoor climate while protecting internal components.
- Automatic Summer Bypass: Enables summer and night cooling by allowing cool outside air to be supplied directly without warming in the heat exchanger.
- Plug-and-Play Control: The air handling unit is supplied complete with built-in controls for all functions, allowing for quick and easy installation and commissioning without additional control technology.
Applications and Usage
The Maxivent WTW air handling units with counterflow heat exchanger 7600 m3/h horizontal horizontal left - PHE 7600 H OOJL T 02 are designed for medium to large commercial spaces such as offices, meeting rooms, medical practices, shops, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit delivers stable and energy-efficient ventilation. The integrated control and summer bypass ensure a comfortable indoor climate throughout the year, both in winter and during warm periods.
Customising the WTW Unit
Interested in a customised model or want to learn more about the possibilities? Please contact our sales department. They are happy to assist you and help configure the ideal unit for your specific requirements.
| Brand | Maxivent |
| Category | Maxivent PHE Counterflow - Side Connection |
| GTIN | 8719544342782 |
| Manufacturer's item number | 78010782 |
| Article number | 78010782 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 6210 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Counter current unit |
| With bypass | Yes |
| Type of cooling coil | None |
| Type of heating coil | None |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 400 V |
| Power consumption | 2.61 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 600 mm |
| Nominal duct width of suction end | 1200 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 600 mm |
| Nominal duct width, delivery side | 1200 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |

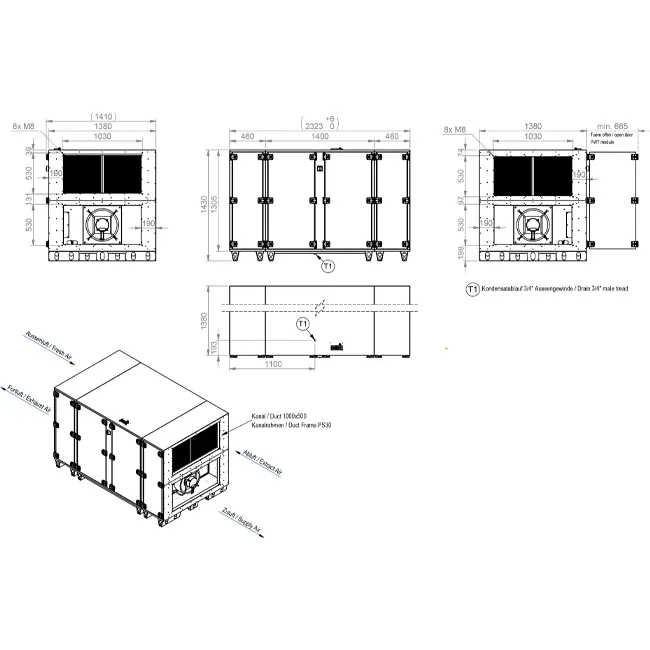

| Height | 1760 mm |
| Width | 1710 mm |
| Length | 2840 mm |
