The Maxivent WTW air handling units with counterflow heat exchanger 700 m³/h with hot water coil vertical right - PHE 700 V WOJR is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specifically designed for offices, medical practices, and small to medium-sized commercial buildings. The AHU offers a maximum airflow rate of 840 m³/h and a thermal efficiency of 80%. The unit operates with a counterflow heat exchanger and EC fans, and is equipped with a hot water coil that heats the supply air to the desired temperature and helps prevent frost formation in the heat exchanger. The air handling unit is designed for floor mounting and can be opened on the right side for maintenance.
The Maxivent WTW air handling units with counterflow heat exchanger 700 m³/h with hot water coil vertical right - PHE 700 V WOJR are developed for small to medium-sized commercial spaces such as offices, meeting rooms, medical practices, retail outlets, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and hot water coil, the unit provides stable and energy-efficient ventilation, even at low outdoor temperatures. The integrated control and summer bypass ensure that the indoor climate remains comfortable throughout the year, both in winter and during warm periods.
| Brand | Maxivent |
| Category | Maxivent PHE counterflow - top connection |
| GTIN | 8719544333322 |
| Manufacturer's item number | Maxivent PHE 700 V WOJR |
| Article number | 78010557 |
| Category code | 36 |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 840 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Counter current unit |
| With bypass | Yes |
| Type of cooling coil | None |
| Type of heating coil | Hot water heat exchanger |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 230 V |
| Power consumption | 0.169 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 200 mm |
| Nominal duct width of suction end | 400 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 200 mm |
| Nominal duct width, delivery side | 400 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |

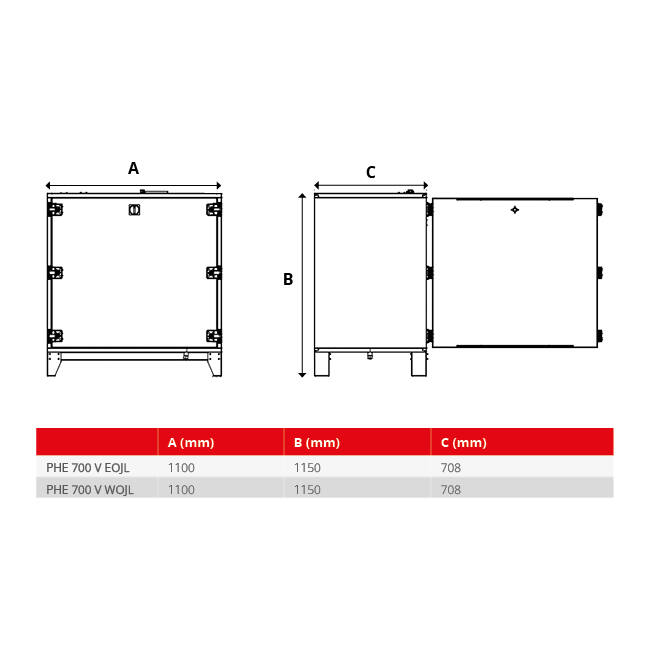

| Height | 1150 mm |
| Width | 708 mm |
| Length | 1100 mm |
| Device emplacement | Indoor positioning |
