The Maxivent WTW air handling units with counterflow heat exchanger 700 m³/h vertical right - PHE 700 V OOJR is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specially designed for offices, practices, and small to medium commercial buildings. The air handling unit has a maximum airflow rate of 880 m³/h and a thermal efficiency of 80%. The unit operates with a counterflow heat exchanger and EC fans, is designed for floor mounting, and can be opened on the right side for maintenance.
The Maxivent WTW air handling units with counterflow heat exchanger 700 m³/h vertical right - PHE 700 V OOJR have been developed for small to medium commercial spaces such as offices, meeting rooms, practices, shops, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit provides stable and energy-efficient ventilation, even at low outside temperatures. The integrated control and summer bypass ensure that the indoor climate remains comfortable throughout the year, both during winter and warmer periods.
| Brand | Maxivent |
| Category | Maxivent PHE counterflow - top connection |
| GTIN | 8719544333346 |
| Manufacturer's item number | Maxivent PHE 700 V OOJR |
| Article number | 78010559 |
| Category code | 36 |

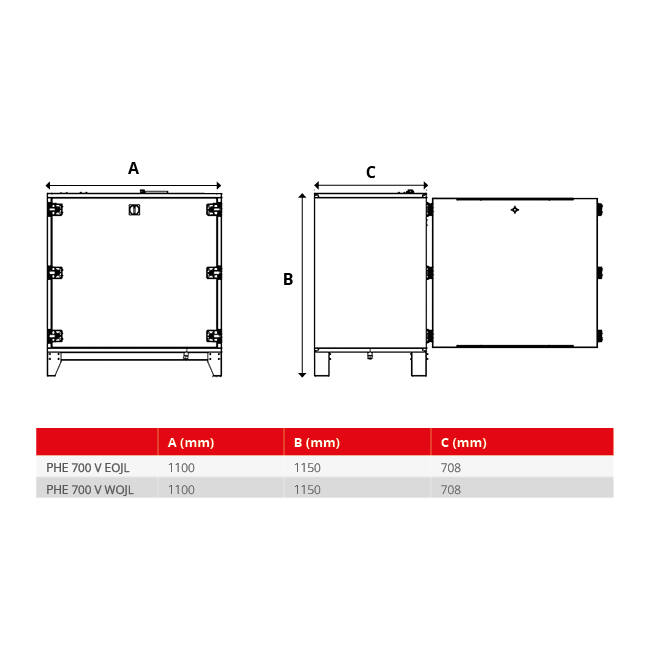

| Length | 1100 mm |
| Width | 708 mm |
| Height | 1150 mm |
| Housing material | Steel |
| Heat recovery by | Counter current unit |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 230 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 880 m³/h |
| Type of heating coil | None |
| Type of exhaust fan | Direct |
| Power consumption | 0.169 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | None |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 400 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 400 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 200 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 200 mm |
| Number of connections suction side | 2 |
