Good points
- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- No heating, no cooling
- Plug & Play Integrated Controller

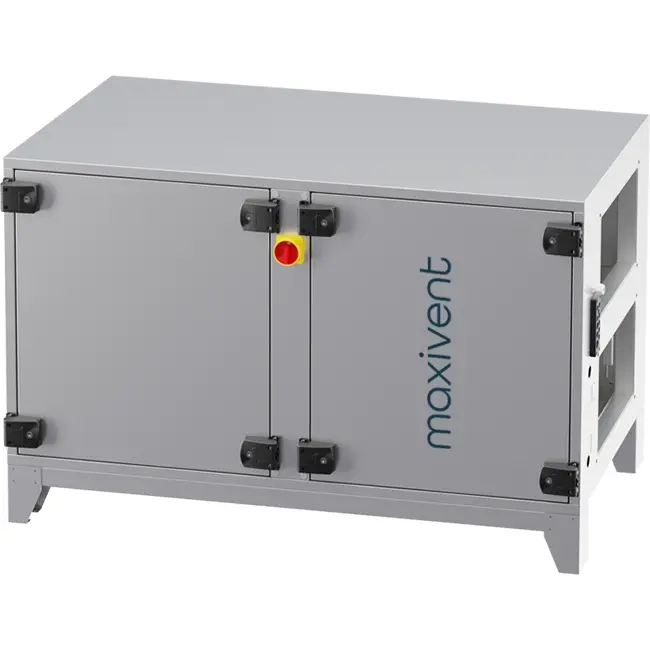

Maxivent WTW Air Handling Units with Counterflow Heat Exchanger 700 m³/h Horizontal Right - PHE 700 H OOJR
The Maxivent WTW air handling units with counterflow heat exchanger 700 m³/h horizontal right - PHE 700 H OOJR is a high-quality, robust and advanced balanced ventilation unit with heat recovery, specially designed for offices, clinics, and small to medium-sized commercial buildings. The air handling unit offers a maximum airflow of 890 m³/h and features an EN 308- and Eurovent-certified heat exchanger. This unit operates with a counterflow heat exchanger and EC fans, is designed for floor mounting, and can be accessed from the right side for maintenance.
Benefits and Features
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) provide an energy-efficient and quiet solution with low power consumption.
- Counterflow Heat Exchanger: The integrated counterflow heat exchanger is certified according to EN 308 and Eurovent, independently verifying the reliability and quality of the heat recovery.
- Panel Filter F7/M5: Ensures a high level of filtration of dust particles and pollutants from outside air, contributing to a healthy and comfortable indoor climate and protecting internal components.
- Automatic Summer Bypass: Enables summer and night cooling by supplying cool outside air directly without warming through the heat exchanger.
- Plug-and-Play Control: The air handling unit comes complete with built-in controls for all functions, allowing quick and easy installation and commissioning without additional control technology.
Applications and Use
The Maxivent WTW air handling units with counterflow heat exchanger 700 m³/h horizontal right - PHE 700 H OOJR is developed for small to medium-sized commercial spaces such as offices, meeting rooms, clinics, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit delivers stable and energy-efficient ventilation. The integrated control and summer bypass ensure a comfortable indoor climate year-round, both in winter and during warm periods.
Customising the WTW Unit
If you are interested in a customised model and want to learn more about the available options, please contact our sales department. They are happy to assist you and help you configure the ideal unit for your specific situation.
| Brand | Maxivent |
| Category | Maxivent PHE Counterflow - Side Connection |
| GTIN | 8719544342386 |
| Manufacturer's item number | 78010742 |
| Article number | 78010742 |
Specifications
| Category code | 36 |

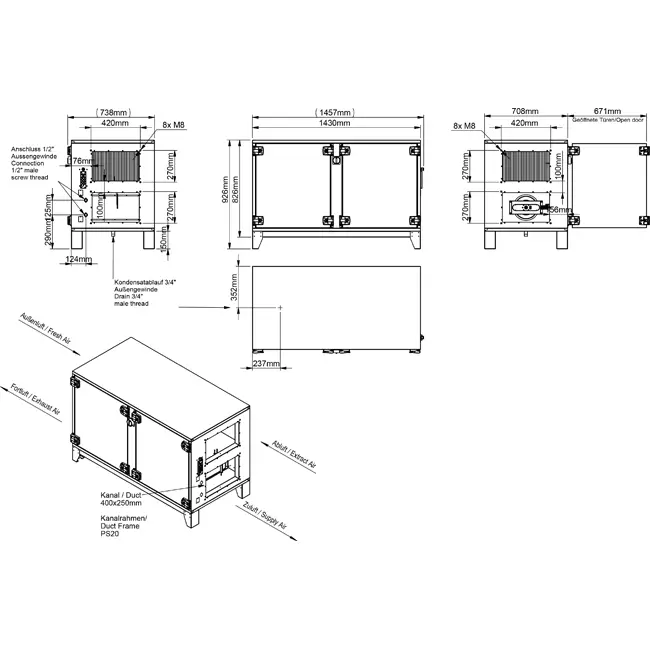

| Length | 1430 mm |
| Width | 708 mm |
| Height | 776 mm |
| Housing material | Steel |
| Heat recovery by | Counter current unit |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 230 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 630 m³/h |
| Type of heating coil | None |
| Type of exhaust fan | Direct |
| Power consumption | 0.3 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | None |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 400 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 400 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 250 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 250 mm |
| Number of connections suction side | 2 |
