- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- Hot Water Mixer
- Plug & Play Integrated Controller

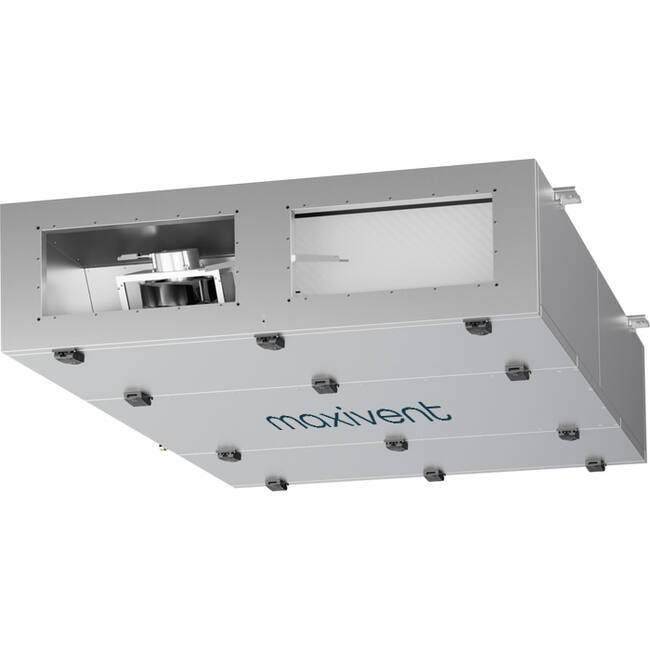

Maxivent WTW Air Handling Units with Counterflow Heat Exchanger 3500 m³/h with Left-Hand Hot Water Coil - PHE 3500 F WOJL
The Maxivent WTW air handling units with counterflow heat exchanger 3500 m³/h with left-hand hot water coil - PHE 3500 F WOJL are high-quality, robust, and advanced balanced ventilation units with heat recovery, specifically designed for offices, medical practices, and small to medium-sized commercial buildings. The air handling unit has a maximum airflow capacity of 4115 m³/h and a thermal efficiency of 84%. The unit operates with a counterflow heat exchanger and EC fans and is equipped with a hot water coil that heats the supply air to the desired temperature while helping to prevent frost formation in the heat exchanger. The air handling unit is designed for ceiling mounting and can be opened from below for maintenance.
Benefits and Features
- Hot Water Coil: Ensures efficient and uniform heating of the supply air using hot water from a central heating system or heat pump, resulting in a comfortable indoor climate and energy-efficient heat transfer.
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) provide an energy-saving and quiet solution with low power consumption.
- Counterflow Heat Exchanger: The integrated, efficient counterflow heat exchanger recovers 84% of the thermal energy from the exhaust air without mixing air streams.
- Panel Filter F7/M5: Provides a high level of filtration for dust particles and contaminants from outdoor air, contributing to a healthy and comfortable indoor environment and protecting internal components.
- Automatic Summer Bypass: Enables summer and night cooling by supplying cool outside air directly without warming through the heat exchanger.
- Plug-and-Play Control: The air handling unit comes complete with built-in control for all functions, allowing quick and easy installation and commissioning without additional control technology.
Applications and Usage
The Maxivent WTW air handling units with counterflow heat exchanger 3500 m³/h with left-hand hot water coil - PHE 3500 F WOJL are developed for small to medium-sized commercial spaces such as offices, meeting rooms, medical practices, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery, EC fans, and the hot water coil, the unit provides stable and energy-efficient ventilation, even at low outside temperatures. The integrated control and summer bypass ensure the indoor climate remains comfortable throughout the year, both in winter and during warmer periods.
Customising the WTW Unit
Interested in a customised model and want to know more about the options? Please contact our sales department. They are happy to assist you and help you configure the ideal unit for your specific requirements.
| Brand | Maxivent |
| Category | Maxivent PHE Ceiling Units |
| GTIN | 8719544342003 |
| Manufacturer's item number | 78010704 |
| Article number | 78010704 |
Specifications
| Category code | 36 |
| Length | 2400 mm |
| Width | 1820 mm |
| Height | 660 mm |
| Housing material | Steel |
| Heat recovery by | Counter current unit |
| Electrical connection | Terminals |
| Type of motor | Electronically commutated (EC) |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Degree of protection (IP) | IP41 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| With bypass | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Connection voltage | 400 V |
| Surface protection housing | Continuously galvanised |
| External controller required | No |
| Device emplacement | Indoor positioning |
| With thermal overload protection | Yes |
| Type of speed control | Continuously variable |
| Air volume, unloaded | 3355.2 m³/h |
| Type of heating coil | Hot water heat exchanger |
| Type of exhaust fan | Direct |
| Power consumption | 2.07 kW |
| Suitable for frequency control | No |
| Frost protection circuit | Yes |
| Pole-reversible | No |
| Explosion safety | None |
| Type of cooling coil | None |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Type of supply fan | Direct |
| Max. air temperature | 40 °C |
| Change-over system | No |
| With humidifier | No |
| Nominal duct width of suction end | 700 mm |
| Connection suction side | Rectangular |
| Nominal duct width, delivery side | 700 mm |
| Number of connections delivery side | 2 |
| Nominal duct height of suction end | 400 mm |
| Connection delivery side | Rectangular |
| Nominal duct height, delivery side | 400 mm |
| Number of connections suction side | 2 |
