Maxivent WTW Air Handling Units with Counterflow Heat Exchanger, 2000 m³/h, Vertical Left - PHE 2000 V OOJL

Brand: Maxivent


Maxivent WTW Air Handling Units with Counterflow Heat Exchanger, 2000 m³/h, Vertical Left - PHE 2000 V OOJL
Maxivent WTW Air Handling Units with Counterflow Heat Exchanger, 2000 m³/h, Vertical Left - PHE 2000 V OOJL
Maxivent WTW Air Handling Units with Counterflow Heat Exchanger, 2000 m³/h, Vertical Left - PHE 2000 V OOJL
Maxivent WTW Air Handling Units with Counterflow Heat Exchanger, 2000 m³/h, Vertical Left - PHE 2000 V OOJL
-35%
RRP 16,777.31
10,905.25 -35%
You'll save 5872.06
Delivery time: 12 weeks
  • The largest collection in the United Kingdom
  • 100 day return period
  • Customer review 9/10
  • Safe shopping with Trustedshops

Pay safe and fast with:

  • Creditcard
  • PayPal
  • Apple Pay

Good points

  • Brand: Maxivent
  • Heat exchanger compliant with EN 308 and Eurovent-certified
  • No heating, no cooling
  • Plug & Play Integrated Controller

Maxivent WTW Air Handling Units with Counterflow Heat Exchanger 2000 m³/h Vertical Left - PHE 2000 V OOJL

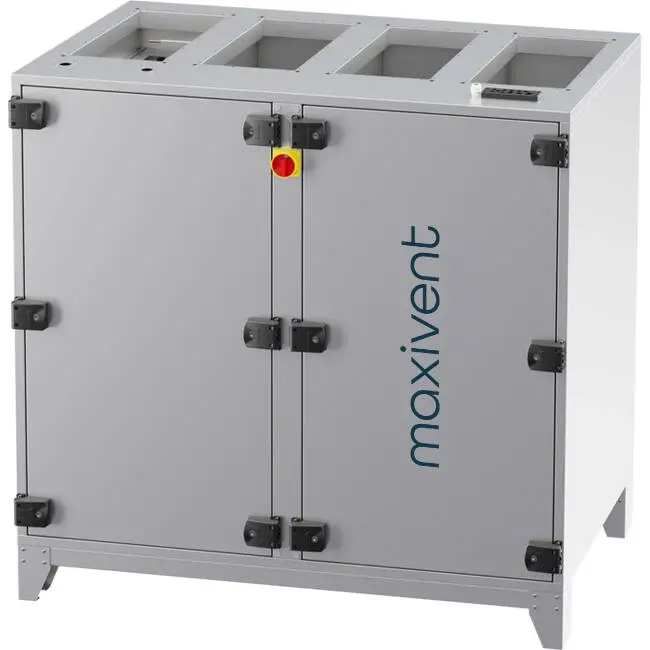

The Maxivent WTW air handling units with counterflow heat exchanger 2000 m³/h vertical left - PHE 2000 V OOJL are high-quality, robust, and advanced balanced ventilation units with heat recovery, specifically designed for offices, medical practices, and large commercial buildings. The air handling unit has a maximum airflow rate of 2830 m³/h and a thermal efficiency of 80%. The unit operates with a counterflow heat exchanger and EC fans, is designed for floor mounting, and can be opened on the left side for maintenance.

Benefits and Features

  • EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) provide an energy-saving and quiet solution with low electrical consumption.
  • Counterflow Heat Exchanger: The integrated, efficient counterflow heat exchanger recovers 80% of thermal energy from the exhaust air without mixing the air streams.
  • Panel Filter F7/M5: Ensures a high level of filtration of dust particles and pollutants from outside air, contributing to a healthy and comfortable indoor climate and protecting internal components.
  • Automatic Summer Bypass: Enables summer and night cooling by supplying cool outside air directly without warming it through the heat exchanger.
  • Plug-and-Play Control: The air handling unit is delivered complete with built-in control for all functions, allowing for quick and easy installation and commissioning without additional control technology.

Applications and Usage

The Maxivent WTW air handling units with counterflow heat exchanger 2000 m³/h vertical left - PHE 2000 V OOJL are developed for medium to large commercial spaces such as offices, meeting rooms, medical practices, shops, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit provides stable and energy-efficient ventilation, even at low outdoor temperatures. The integrated control and summer bypass ensure the indoor climate remains comfortable throughout the year, both during winter and warm periods.

Brand Maxivent
Category Maxivent PHE counterflow - top connection
GTIN 8719544333087
Manufacturer's item number Maxivent PHE 2000 V OOJL
Article number 78010533

Specifications

Category code 36
Housing material Steel
Surface protection housing Continuously galvanised
Air volume, unloaded 2830 m³/h
Supply filter according to ISO 16890-1:2016 ISO ePM1
Efficiency supply filter according to ISO 16890-1:2016 55 %
Heat recovery by Counter current unit
With bypass Yes
Type of cooling coil None
Type of heating coil None
Change-over system No
With humidifier No
Type of supply fan Direct
Exhaust filter according to ISO 16890-1:2016 ISO ePM10
Efficiency exhaust filter according to ISO 16890-1:2016 50 %
Type of exhaust fan Direct
Connection voltage 230 V
Power consumption 0.726 W
With thermal overload protection Yes
Electrical connection Terminals
Suitable for electronic control Yes
Suitable for frequency control No
Suitable for transformer control No
Pole-reversible No
External controller required No
Frost protection circuit Yes
Type of motor Electronically commutated (EC)
Type of speed control Continuously variable
Number of connections suction side 2
Connection suction side Rectangular
Nominal duct height of suction end 600 mm
Nominal duct width of suction end 300 mm
Connection delivery side Rectangular
Number of connections delivery side 2
Nominal duct height, delivery side 600 mm
Nominal duct width, delivery side 300 mm
Degree of protection (IP) IP41
Explosion safety None
Max. air temperature 40 °C

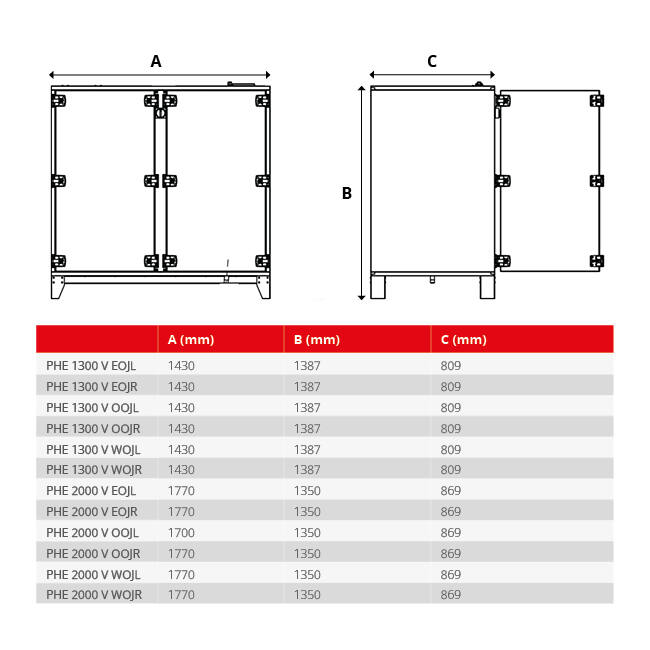

Height 1350 mm
Width 869 mm
Length 1770 mm
Device emplacement Indoor positioning
