- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- No heating, no cooling
- Plug & Play Integrated Controller

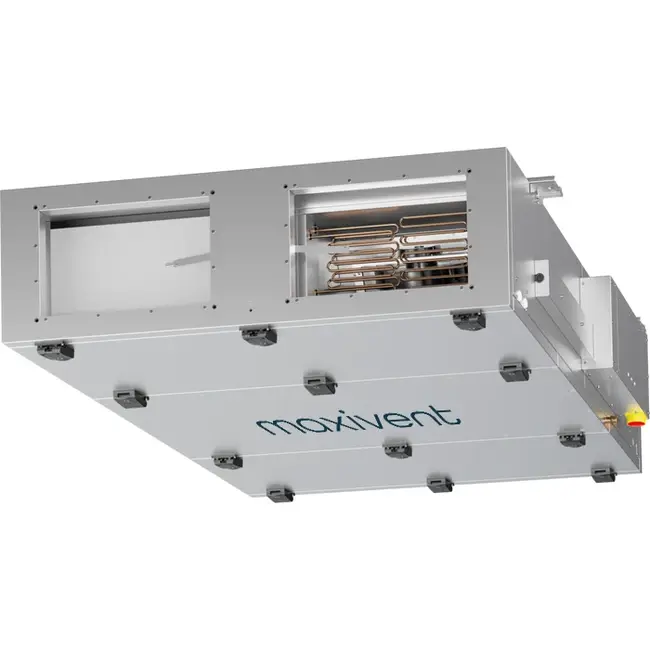

Maxivent WTW Air Handling Units with Counterflow Heat Exchanger 1700 m³/h Horizontal Right - PHE 1700 F OOJR
The Maxivent WTW air handling units with counterflow heat exchanger 1700 m³/h horizontal right - PHE 1700 F OOJR is a high-quality, robust, and advanced balanced ventilation system with heat recovery, specifically designed for offices, practices, and small to medium-sized commercial buildings. The air handling unit has a maximum airflow of 2060 m³/h and a thermal efficiency of 82%. The unit operates with a counterflow heat exchanger and EC fans, is designed for ceiling mounting, and can be accessed from the underside for maintenance.
Advantages and Features
- EC Fans: Direct-driven EC plug fans with high-efficiency electronic commutation (EC) provide an energy-efficient and quiet solution with low power consumption.
- Counterflow Heat Exchanger: The integrated, efficient counterflow heat exchanger recovers 82% of the thermal energy from the exhaust air without mixing the air streams.
- Panel Filter F7/M5: Ensures a high level of filtration of dust particles and contaminants from outdoor air, contributing to a healthy and comfortable indoor climate and protecting internal components.
- Automatic Summer Bypass: Enables summer and night cooling by introducing cool outdoor air directly without warming through the heat exchanger.
- Plug-and-Play Control: The air handling unit is supplied complete with built-in controls for all functions, making installation and commissioning quick and straightforward without additional control systems.
Applications and Usage
The Maxivent WTW air handling units with counterflow heat exchanger 1700 m³/h horizontal right - PHE 1700 F OOJR are developed for small to medium commercial spaces such as offices, meeting rooms, practices, retail stores, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit delivers stable and energy-efficient ventilation. The integrated control and summer bypass ensure a comfortable indoor climate throughout the year, both in winter and during warm periods.
Customising the WTW Unit
Are you interested in a customised model and want to learn more about the possibilities? Please contact our sales department. They are happy to assist you and help you configure the ideal unit for your specific requirements.
| Brand | Maxivent |
| Category | Maxivent PHE Ceiling Units |
| GTIN | 8719544341105 |
| Manufacturer's item number | 78010614 |
| Article number | 78010614 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 1033.2 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Counter current unit |
| With bypass | Yes |
| Type of cooling coil | None |
| Type of heating coil | None |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 230 V |
| Power consumption | 1.04 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 300 mm |
| Nominal duct width of suction end | 500 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 300 mm |
| Nominal duct width, delivery side | 500 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |

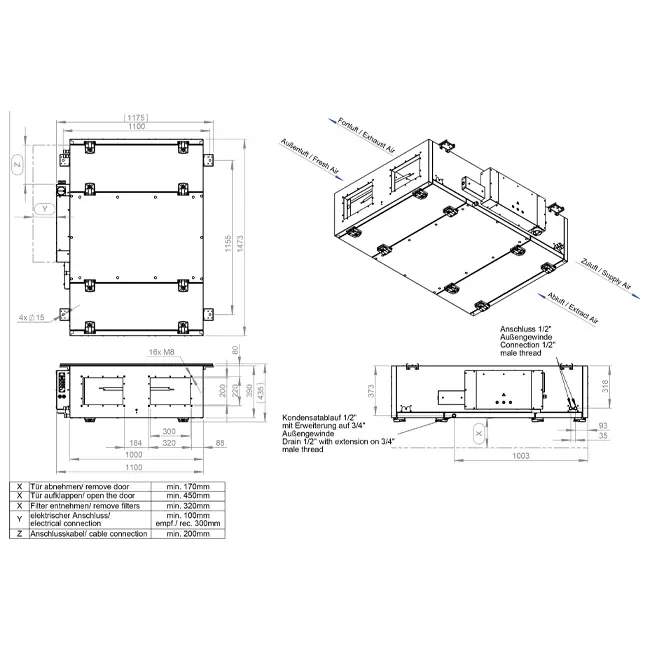

| Height | 435 mm |
| Width | 1460 mm |
| Length | 1800 mm |
