- Brand: Maxivent
- Heat exchanger compliant with EN 308 and Eurovent-certified
- No heating, no cooling
- Plug & Play Integrated Controller

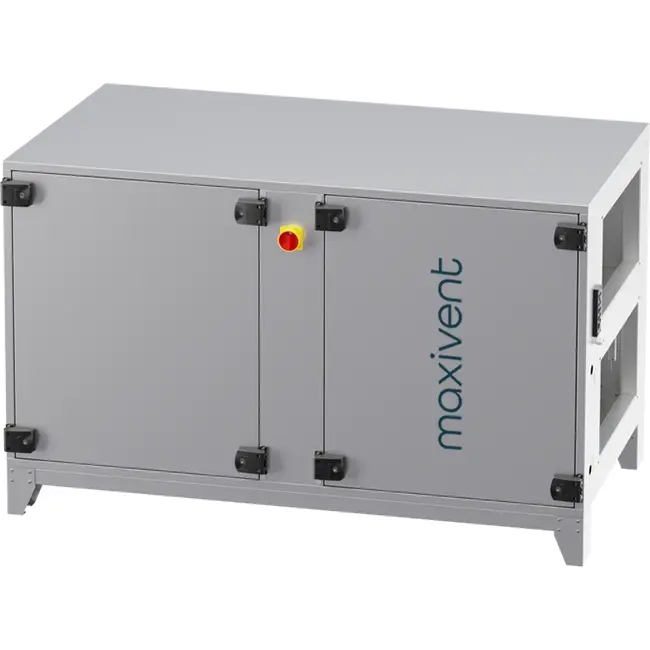

Maxivent HR air handling units with counterflow heat exchanger 1300 m3/h horizontal horizontal left - PHE 1300 H OOJL
The Maxivent HR air handling units with counterflow heat exchanger 1300 m3/h horizontal horizontal left - PHE 1300 H OOJL is a high-quality, robust, and advanced balanced ventilation unit with heat recovery, specially designed for offices, practices, and small to medium-sized commercial buildings. The air handling unit has a maximum airflow of 1655 m³/h and a thermal efficiency of 82%. The unit operates with a counterflow heat exchanger and EC fans, is designed for floor mounting, and can be opened on the left side for maintenance.
Advantages and Features
- EC fans: Direct-driven EC plug fans with high-efficiency electronically commutated (EC) motors offer an energy-efficient and quiet solution with low power consumption.
- Counterflow heat exchanger: The integrated, efficient counterflow heat exchanger recovers 82% of the thermal energy from the exhaust air without mixing air streams.
- Panel filter F7/M5: Ensures a high level of filtration of dust particles and pollutants from the outside air, contributing to a healthy and comfortable indoor climate and protecting internal components.
- Automatic summer bypass: Enables summer and night cooling by supplying cool outside air directly without warming through the heat exchanger.
- Plug-and-play control: The air handling unit is delivered complete with built-in control for all functions, allowing for quick and easy installation and commissioning without additional control technology.
Applications and Use
The Maxivent HR air handling units with counterflow heat exchanger 1300 m3/h horizontal horizontal left - PHE 1300 H OOJL are developed for small to medium-sized commercial spaces such as offices, meeting rooms, clinics, shops, and educational or healthcare environments. Thanks to the combination of heat recovery and EC fans, the unit provides stable and energy-efficient ventilation. The integrated control and summer bypass ensure that the indoor climate remains comfortable all year round, both in winter and during warm periods.
Customising the HR Unit
Are you interested in a customised model and want to know more about the options? Please contact our sales department. They are happy to discuss your requirements and assist you in assembling the ideal unit for your situation.
| Brand | Maxivent |
| Category | Maxivent PHE Counterflow - Side Connection |
| GTIN | 8719544342409 |
| Manufacturer's item number | 78010744 |
| Article number | 78010744 |
Specifications
| Category code | 36 |
| Device emplacement | Indoor positioning |
| Housing material | Steel |
| Surface protection housing | Continuously galvanised |
| Air volume, unloaded | 1141.2 m³/h |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Heat recovery by | Counter current unit |
| With bypass | Yes |
| Type of cooling coil | None |
| Type of heating coil | None |
| Change-over system | No |
| With humidifier | No |
| Type of supply fan | Direct |
| Exhaust filter according to ISO 16890-1:2016 | ISO ePM10 |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 50 % |
| Type of exhaust fan | Direct |
| Connection voltage | 230 V |
| Power consumption | 0.46 kW |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Suitable for electronic control | Yes |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Pole-reversible | No |
| External controller required | No |
| Frost protection circuit | Yes |
| Type of motor | Electronically commutated (EC) |
| Type of speed control | Continuously variable |
| Number of connections suction side | 2 |
| Connection suction side | Rectangular |
| Nominal duct height of suction end | 300 mm |
| Nominal duct width of suction end | 500 mm |
| Connection delivery side | Rectangular |
| Number of connections delivery side | 2 |
| Nominal duct height, delivery side | 300 mm |
| Nominal duct width, delivery side | 500 mm |
| Degree of protection (IP) | IP41 |
| Explosion safety | None |
| Max. air temperature | 40 °C |
| Height | 940 mm |
| Width | 1750 mm |
| Length | 809 mm |
