Good points

For supply air
Extruded aluminium
Coandă effect
Horizontal & vertical airflow

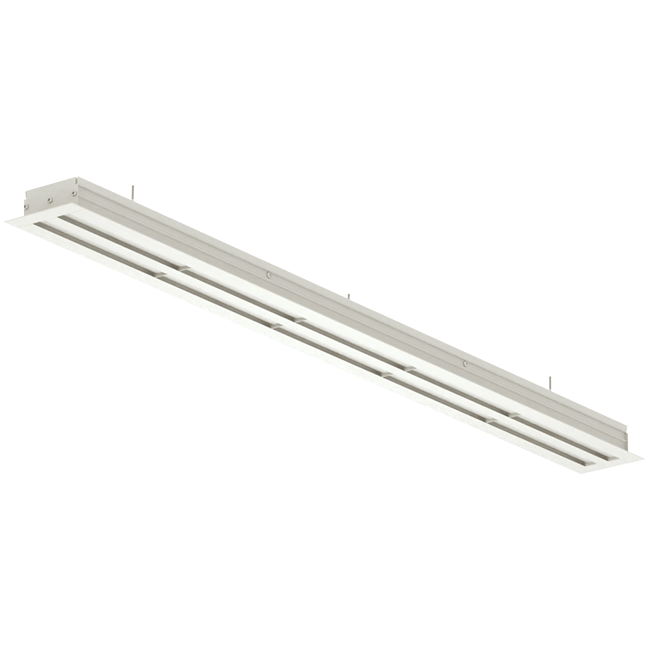

Aluminium Linear Diffuser with 3 Adjustable Blade Sets – 1500 mm – RAL 9010

The Econox linear diffuser is made of extruded aluminium and designed for installation in ceilings or high walls. The grille features three rows of blades and integrated adjustable deflectors enabling both horizontal and vertical air discharge. Thanks to the Coanda effect design, the air is evenly distributed along the ceiling, providing comfortable, draught-free air distribution in spaces such as offices, retail stores, restaurants, and hotels.

Practical Information

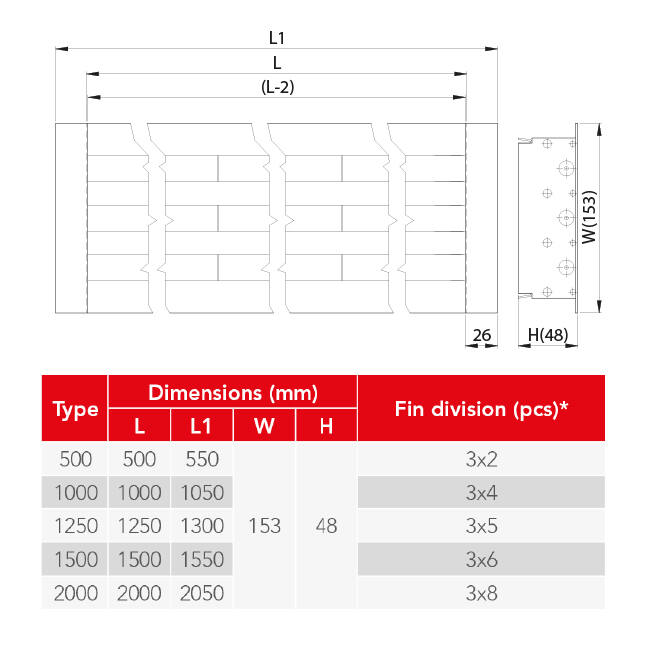

The linear diffuser has three rows of blades (three slot zones) and a length of 1500 mm. The height of the diffuser is approximately 48 mm and the depth about 153 mm. Both the frame and blades are made of aluminium and powder-coated in RAL 9010, 9016, or 9005.

Installation and Applications

The linear diffuser can be installed individually or in continuous rows. For optimal air distribution and noise attenuation, the diffuser should be connected to a suitable plenum. The linear diffuser is mounted directly into the ceiling or wall profile, and the deflectors can be manually adjusted after installation to achieve the desired airflow direction.

Brand	Econox
Category	Linear slot diffusers with adjustable blades
GTIN	8719544331038
Manufacturer's item number	79000395
Article number	79000395

Specifications

Category code	59
Material	Aluminium
Without plenum	Yes
Number of connections	1
Connection	Other
Front length	1550 mm
Front width	153 mm
Built-in height	48 mm
Number of slits	3
With cover edge	Yes
Without flange frame	No
With volume control	No
Air pattern, adjustable	Yes
Length of plenum	1500 mm
