Aluminium Linear Diffuser with 2 Adjustable Blade Sets – 1500 mm – RAL 9010

The Econox linear diffuser is made from extruded aluminium and designed for installation in ceilings or high walls. The diffuser features two rows of blades and integrated adjustable deflectors, allowing for both horizontal and vertical air discharge. Thanks to the Coanda-effect design, the air distributes evenly along the ceiling, ensuring comfortable and draught-free airflow in spaces such as offices, shops, restaurants, and hotels.

Practical Information

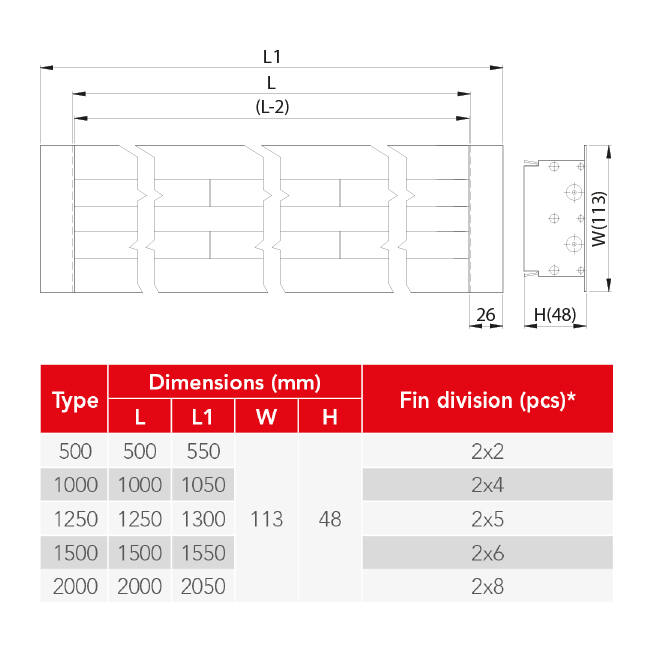

The linear diffuser has two rows of blades (two slot zones) and measures 1500 mm in length. The height of the diffuser is approximately 48 mm and the depth around 113 mm. Both the frame and blades are made of aluminium and powder-coated in RAL 9010, 9016, or 9005.

Installation and Applications

The linear diffuser can be installed individually or in continuous rows. For optimal air distribution and noise attenuation, the diffuser should be connected to a suitable plenum. The linear diffuser is fixed directly into the ceiling or wall profile, and the deflectors can be manually adjusted post-installation to direct airflow as desired.

Brand	Econox
Category	Linear slot diffusers with adjustable blades
GTIN	8719544330987
Manufacturer's item number	79000390
Article number	79000390

Specifications

Category code	59
Material	Aluminium
Without plenum	Yes
Number of connections	1
Connection	Other
Front length	1550 mm
Front width	113 mm
Built-in height	48 mm
Number of slits	2
With cover edge	Yes
Without flange frame	No
With volume control	No
Air pattern, adjustable	Yes
Length of plenum	1500 mm
