Good points

EC motor energy efficient
Up to 7490 m3/h
Brand: Ruck fans
Speed adjustable

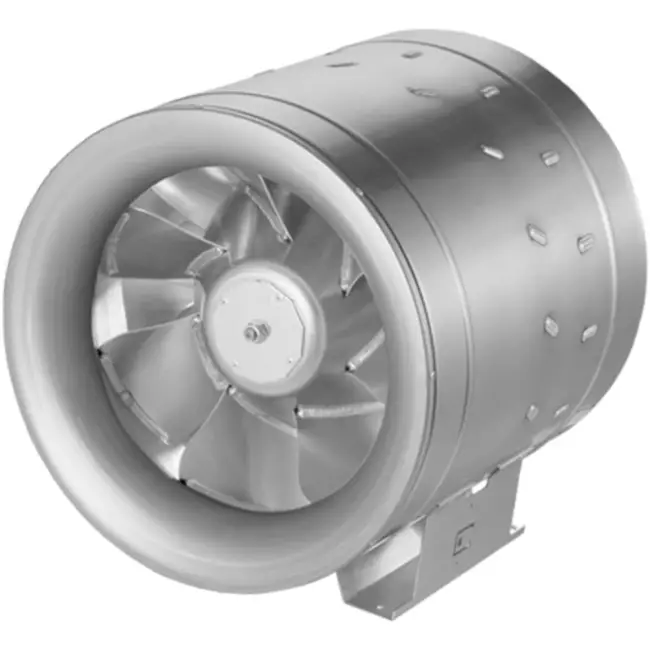

Ruck® Etaline inline tube fan with EC motor

The Ruck® Etaline inline tube fan (EL EC series) has an energy-efficient EC motor, this EC motor can be operated with variable speed control. The Etaline inline tube fan is supplied including mounting brackets and can be mounted directly on a tube. However, we recommend the corresponding Ruck® fast clamp to reduce vibrations and noise through the duct.

The Etaline is a powerful fan and 50% more economical compared to other inline tube fans and has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EL EC series is available with capacities ranging from 7300 m3/h to a maximum of 20200 m3/h and with diameters ranging from 400 mm to a maximum of 710 mm respectively.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient inline tube fans with an EC motor. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

EC motor
Aluminium housing
Rearward curved vanes
Terminal box included

Brand	Ruck ventilatoren GmbH
Category	Ruck Etaline Inline extractor fans
GTIN	4061199035248
Manufacturer's item number	159395
Article number	65159395

Specifications

Number of phases	1~
Type of motor control	0-10V
Category code	35
Weight	18.2 kg
IP Motor	IP55
Insulation Class Motor	F
Max. Operating Current	8.2 A
Max. pressure	880 Pa
Max. Air Volume	7490 m³/h
Max. Current Consumption	8.2 A
Max. power consumption	1144 W
Max. Static Efficiency	64.5 %
Max. allowed Medium Temperature	60 °C
Max. allowed Medium Temperature at Rated Current	60 °C
Max. allowed Ambient Temperature	60 °C
Max. allowed Ambient Temperature at Rated Current	60 °C
Max. number of revolutions	2100 1/min
Max. Total Efficiency	69.2 %
Min. Operating Temperature	-20 °C
Motor Protection	TEC
Motor type	EC
Nominal frequency	50 Hz
Rated Speed	2100 1/min
Nominal power consumption	1144 W
Nominal voltage	230 V
Nominal current	7.8 A
