Inline tube fan 125mm centrifugal - RS 125 EC K 01 65154570

Good points

Brand: Ruck fans
EC motor energy efficient
Up to 470 m3/h
Speed adjustable

Ruck RS inline tube fan

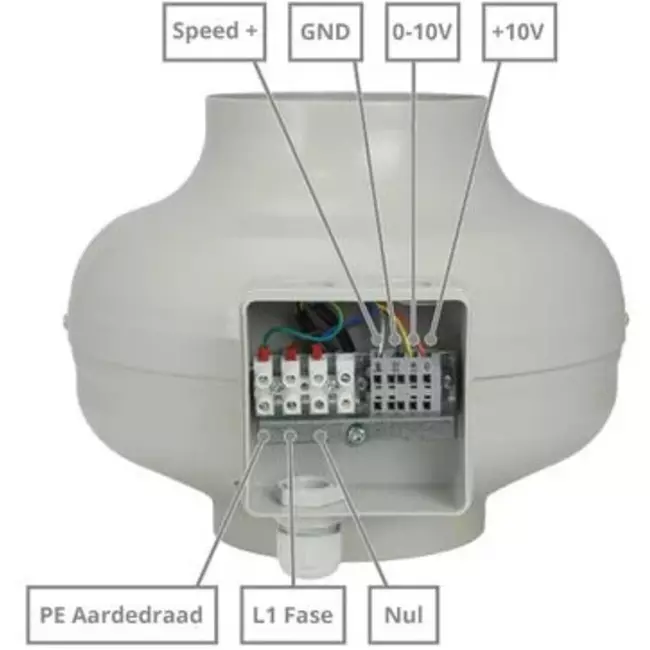

The Ruck inline tube fan (RS EC series) has an energy-efficient EC motor, this EC motor can be operated with a variable Ruck potentiometer (MTP-20) or by means of 0-10V control. The inline tube fan from Ruck can be mounted directly on a tube, but we recommend the corresponding Ruck fast clamp to reduce vibrations and noise through the duct.

The RS inline tube fan has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with rearward curved vanes. The advantages of this are that the fan has a higher efficiency, a lower power consumption and a lower noise level at higher pressure differences. The RS EC series is available with capacities ranging from 350 m3/h to a maximum of 1990 m3/h and with diameters ranging from 100 mm to a maximum of 315 mm respectively.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient inline tube fans with an EC motor. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

Integrated electronics
Incl. terminal box
EC motor
Metal housing RAL 7035
Rearward curved vanes

Brand	Ruck ventilatoren GmbH
Category	Metal Inline extractor fans
GTIN	4061199038096
Manufacturer's item number	154570
Article number	65154570

Specifications

Number of phases	1~
Type of motor control	0-10V
Category code	35
Weight	2.6 kg
IP Motor	IP54
Insulation Class Motor	F
Max. Operating Current	0.9 A
Max. pressure	750 Pa
Max. Air Volume	470 m³/h
Max. Current Consumption	0.9 A
Max. power consumption	116 W
Max. Static Efficiency	26.6 %
Max. allowed Medium Temperature	50 °C
Max. allowed Medium Temperature at Rated Current	50 °C
Max. allowed Ambient Temperature	50 °C
Max. allowed Ambient Temperature at Rated Current	50 °C
Max. number of revolutions	4000 1/min
Max. Total Efficiency	27.1 %
Min. Operating Temperature	-20 °C
Motor Protection	TEC
Motor type	EC
Nominal frequency	50 Hz
Rated Speed	3950 1/min
Nominal power consumption	116 W
Nominal voltage	230 V
Nominal current	0.9 A
