Good points

Ø125 mm to 2x Ø90 mm
Airtightness class D, ATC-1
OneClick technology

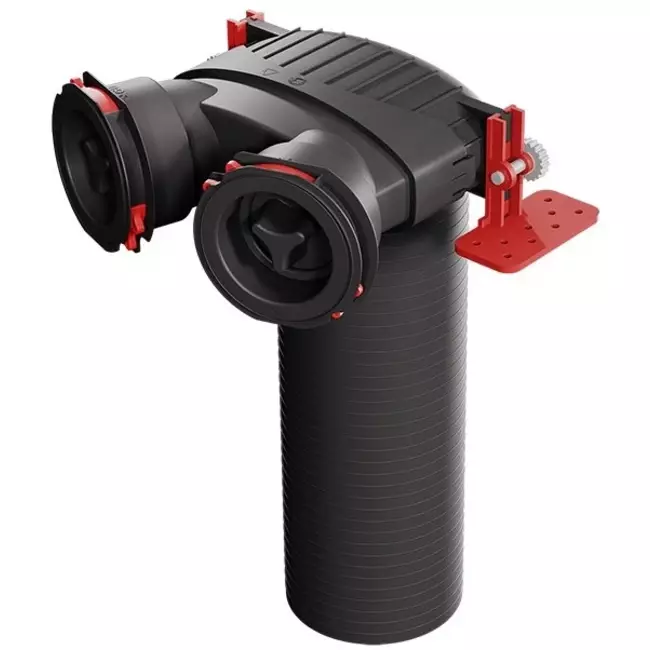

Heatpex Aria plenum box Ø 125 mm to 2 x Ø 90 mm

This plenum box is part of the Aria air distribution system by Heatpex. Constructed from high quality polypropylene the plenum box allows the connection of up to 2 Ø 90 mm ducts to a single Ø 125 mm exhaust/supply duct. Adaptable mounting flaps with height adjustment make way for easy mounting on or under ceilings.

This plenum set contains the following:

1x Main unit with Ø 125 mm socket
1x Elliptical seat gasket module with 2 sockets Ø 90 mm
2x Mounting ring for duct Ø90 mm with gaskets 2x End cap with gasket for duct Ø90 mm
2x Adaptable mounting blade with screws

Attention!
There is a red rubber ring around the end caps of the air distribution box and valve collector, and around the connection piece and connector. You put this around the tube before you connect it, so that you create an airtight connection. Then use the clamp to secure the tube. Never throw away the red rubber rings, as we do not have them separately. See picture with steps.

Brand	HEATPEX
Category	Heatpex Aria 90mm
GTIN	5908226244992
Manufacturer's item number	523 290 001
Article number	14400502

Specifications

Connexion de branche	Male
Connection main channel	Female
Number of branches	2
Category code	197
Material	Plastic
With pre-assembled seal	Yes
Nom. channel diameter branches	90 mm
Nom. main duct diameter	124.1 mm
Type	Collector
Operating length	248 mm
