Good points
- For supply and removal
- Incl. bird netting
- Aluminum alloy

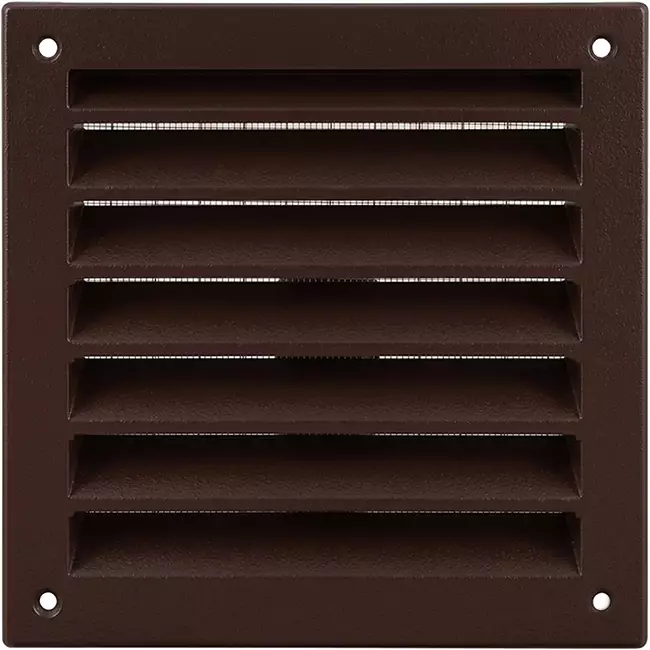

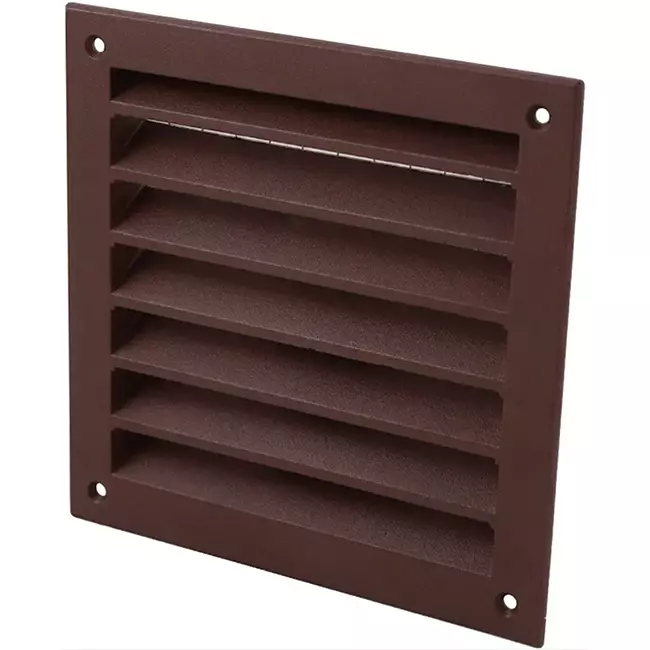

Aluminium External Wall Vent 150x150 mm - RAL 8016
The aluminium external wall vent is specifically designed for the supply and exhaust of air through external walls. This vent is suitable for both residential properties and commercial buildings where fresh air needs to be supplied or stale air extracted. The external wall vent is corrosion-resistant and features a robust construction, ensuring it does not deform.
Practical Information

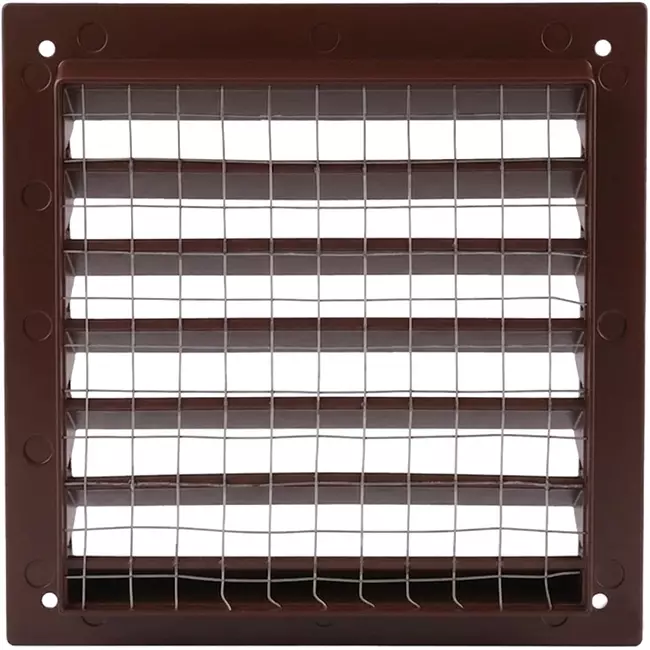

The external wall vent measures 150x150 mm with an outer dimension of 180x180 mm, allowing it to neatly cover the wall opening. The depth is 19.5 mm. The vent is powder-coated in RAL 8016, but is also available in RAL 9005, 1015, 9016 or uncoated. It comes with coarse-mesh bird guard mesh to prevent birds or large insects from entering the ventilation opening.
Installation
For installation, cut or drill a square opening of 148x148 mm in the wall. The vent is then placed over this opening and secured to the wall with four screws, one in each corner. On the interior side, connect the vent to the ventilation duct through the 148x148 mm opening.
| Brand | Econox |
| Category | Aluminum Exterior Vent covers |
| GTIN | 8719544322821 |
| Manufacturer's item number | 35001851 |
| Article number | 35001851 |
Specifications
| Category code | 173 |
| Shape | Square |
| Material | Aluminium |
| Surface protection | Lacquered |
| Nominal duct width | 148 mm |
| Nominal duct height | 148 mm |
| Front width | 180 mm |
| Front height | 180 mm |
| Built-in depth | 19.5 mm |
| With bird wire | Yes |
| With insect netting | No |
| With pressure relief blow-out valve | No |
| With pressure relief suction valve | No |
| With contrarotating valve section | No |
| With synchronised rotating valve section | No |
| With built-in window | No |
| Lockable | No |
| Motor-controlled | No |
| Colour | Brown |
| RAL-number | 8016 |
