Good points
- For supply and removal
- Incl. bird netting
- Aluminum alloy

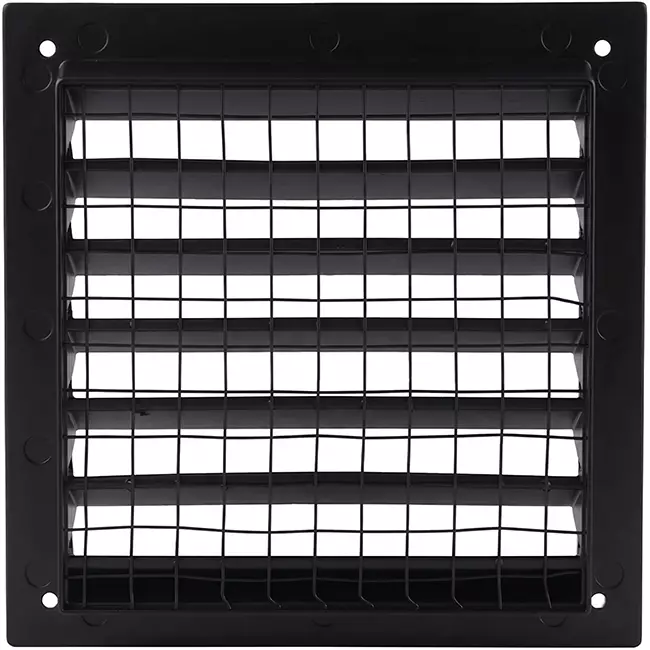

Aluminium External Wall Vent 100x100 mm - RAL 9005
The aluminium external wall vent is specifically designed for the supply and extraction of air through external walls. This vent is suitable for both residential properties and commercial buildings where fresh air needs to be introduced or polluted air expelled. The external wall vent is corrosion-resistant and has a robust construction, ensuring it does not deform.
Practical Information
The external wall vent measures 100x100 mm with an external dimension of 130x130 mm, allowing it to cover the wall opening neatly. The depth is 20 mm. The vent is powder-coated in RAL 9005 but is also available in RAL 1015, 8016, 9016, or uncoated. It comes supplied with a coarse mesh bird guard to prevent birds or large insects from entering the ventilation opening.
Installation
For installation, cut or drill a square opening of 98x98 mm in the wall. The vent is then placed over this opening and secured to the wall with four screws, one in each corner. On the interior side, connect the vent to the ventilation duct via the 98x98 mm opening.
| Brand | Econox |
| Category | Aluminum Exterior Vent covers |
| GTIN | 8719544322951 |
| Manufacturer's item number | 35001853 |
| Article number | 35001853 |
Specifications
| Category code | 173 |
| Shape | Square |
| Material | Aluminium |
| Surface protection | Lacquered |
| Nominal duct width | 98 mm |
| Nominal duct height | 98 mm |
| Front width | 130 mm |
| Front height | 130 mm |
| Built-in depth | 20 mm |
| With bird wire | Yes |
| With insect netting | No |
| With pressure relief blow-out valve | No |
| With pressure relief suction valve | No |
| With contrarotating valve section | No |
| With synchronised rotating valve section | No |
| With built-in window | No |
| Lockable | No |
| Motor-controlled | No |
| Colour | Black |
| RAL-number | 9005 |
