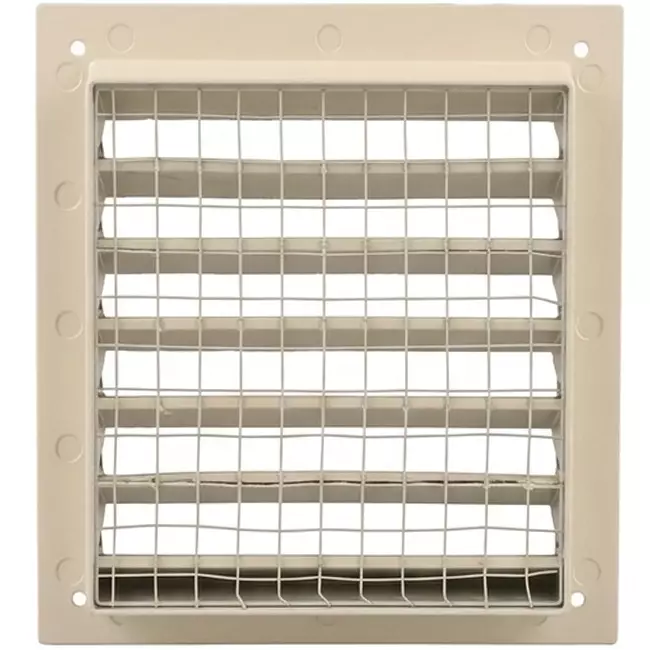

Aluminium External Wall Vent 100x100 mm - RAL 1015
The aluminium external wall vent is specifically designed for the supply and extraction of air through external walls. This grille is suitable for both residential and commercial buildings where fresh air needs to be supplied or stale air extracted. The external wall vent is corrosion-resistant and has a robust construction, ensuring it does not deform.
Practical Information
The external wall vent measures 100x100 mm with an overall dimension of 130x130 mm, allowing it to neatly cover the wall opening. The depth is 20 mm. The grille is powder-coated in RAL 1015 (light ivory), but is also available in RAL 9005, 8016, 9016 or uncoated. It comes supplied with a coarse mesh bird screen to prevent birds or large insects from entering the ventilation opening.
Installation
For installation, cut or drill a square opening of 98x98 mm in the wall. The grille is then positioned over this opening and fixed to the wall with four screws, one in each corner. On the interior side, connect the grille to the ventilation duct through the 98x98 mm opening.
| Brand | Econox |
| Category | Aluminum Exterior Vent covers |
| GTIN | 8719544322777 |
| Manufacturer's item number | 35001846 |
| Article number | 35001846 |
Specifications
| Category code | 173 |
| Shape | Square |
| Material | Aluminium |
| Surface protection | Lacquered |
| Nominal duct width | 98 mm |
| Nominal duct height | 98 mm |
| Front width | 130 mm |
| Front height | 130 mm |
| Built-in depth | 20 mm |
| With bird wire | Yes |
| With insect netting | No |
| With pressure relief blow-out valve | No |
| With pressure relief suction valve | No |
| With contrarotating valve section | No |
| With synchronised rotating valve section | No |
| With built-in window | No |
| Lockable | No |
| Motor-controlled | No |
| Colour | Other |
| RAL-number | 1015 |
