Good points
- For supply and removal
- Incl. bird netting
- Aluminum alloy

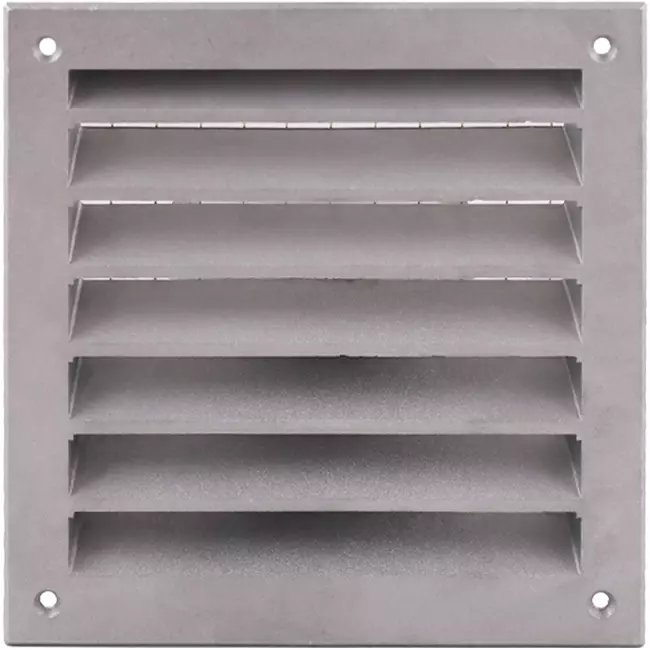

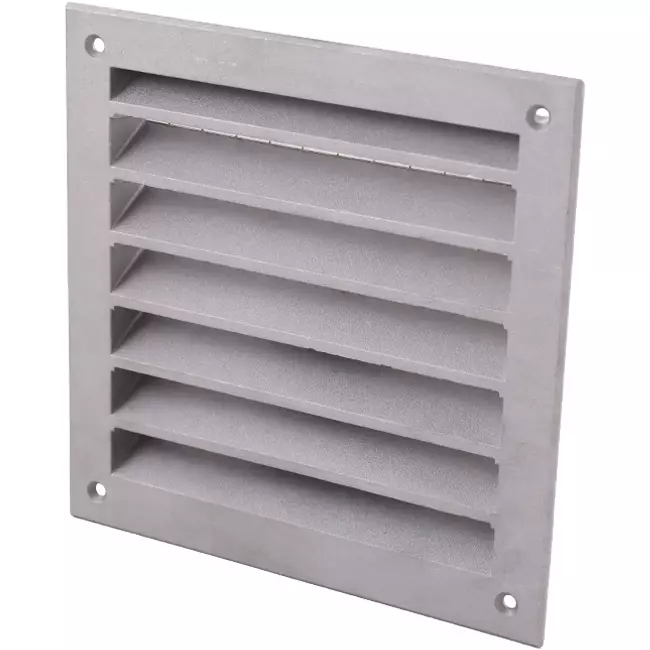

Aluminium External Wall Vent 100x100 mm - Aluminium
The aluminium external wall vent is specifically designed for air supply and extraction through external walls. This vent is suitable for both residential buildings and commercial properties where fresh air needs to be supplied or stale air extracted. The external wall vent is corrosion-resistant and features a robust construction, preventing any deformation.
Practical Information

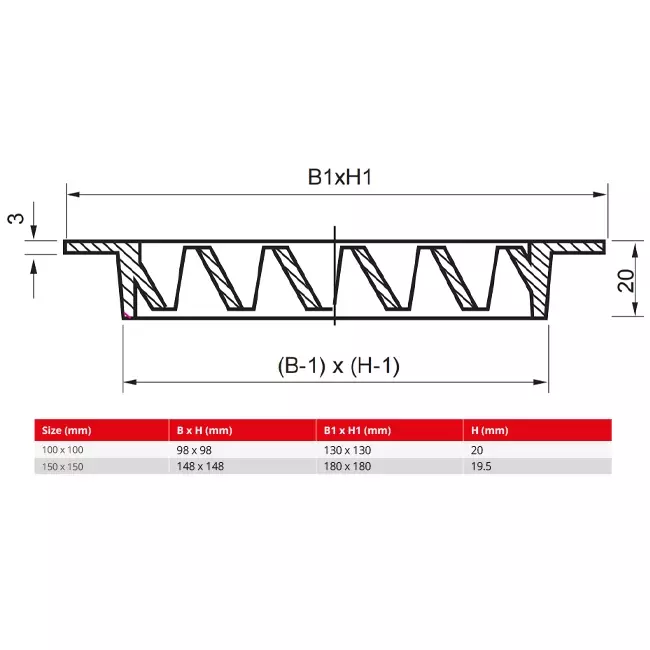

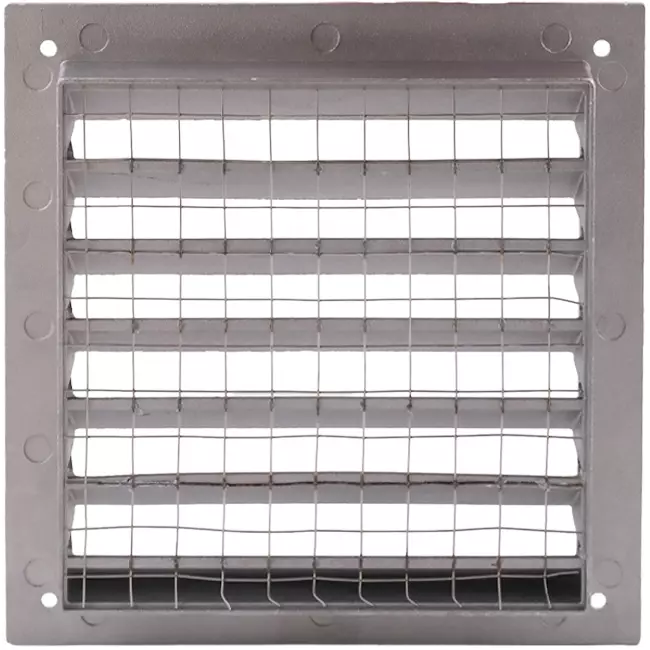

The external wall vent measures 100x100 mm with an outer dimension of 130x130 mm, ensuring a neat coverage of the wall opening. The depth is 20 mm. The vent is uncoated by default but is also available in RAL 9005, 8016, 9016, or 1015 finishes. It comes equipped with coarse mesh bird guard to prevent birds or large insects from entering the ventilation opening.
Installation
For installation, cut or drill a square opening of 98x98 mm into the wall. The vent is then positioned over this opening and secured to the wall with four screws, one in each corner. On the interior side, connect the vent to the ventilation duct via the 98x98 mm opening.
| Brand | Econox |
| Category | Aluminum Exterior Vent covers |
| GTIN | 8719544322760 |
| Manufacturer's item number | 35001845 |
| Article number | 35001845 |
Specifications
| Category code | 173 |
| Shape | Square |
| Material | Aluminium |
| Surface protection | Untreated |
| Nominal duct width | 98 mm |
| Nominal duct height | 98 mm |
| Front width | 130 mm |
| Front height | 130 mm |
| Built-in depth | 20 mm |
| With bird wire | Yes |
| With insect netting | No |
| With pressure relief blow-out valve | No |
| With pressure relief suction valve | No |
| With contrarotating valve section | No |
| With synchronised rotating valve section | No |
| With built-in window | No |
| Lockable | No |
| Motor-controlled | No |
| Colour | Aluminium |
