Ergovent AERO PRO Slim Box 2x75 mm

Ergovent AERO PRO Slim Box 2x75 mm

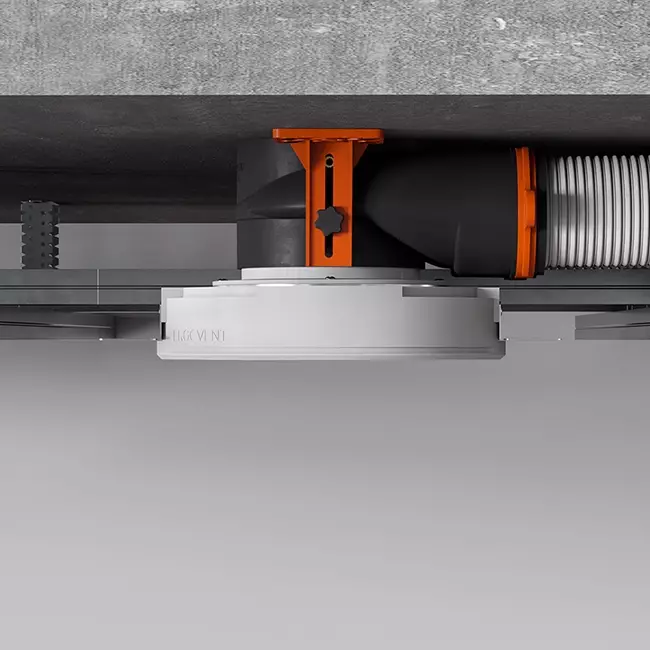

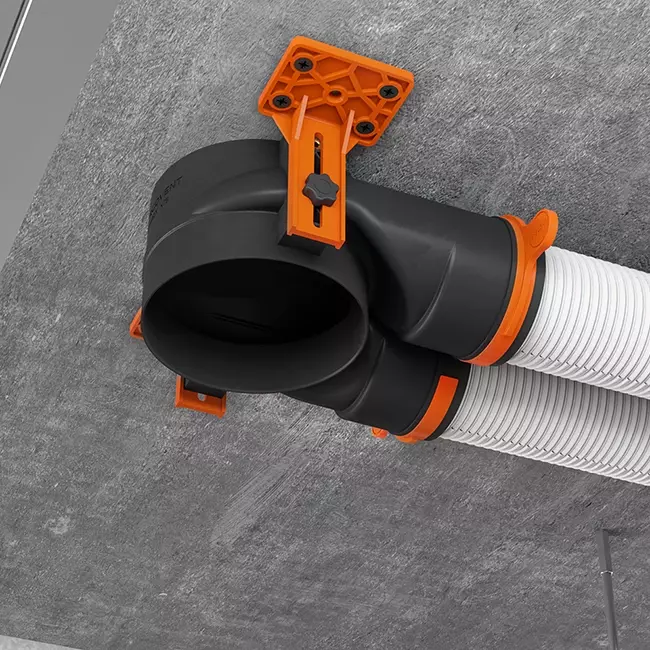

The Ergovent AERO PRO Slim Box is a diffuser box made from antistatic, antibacterial PP plastic. The AERO PRO Slim Box features one main connection with a diameter of 125 mm and two outlets each with a diameter of 75 mm. The diffuser box is suitable for both air supply and exhaust and, due to its flexible design, can be installed in ceilings, walls, or floors with limited installation space. The AERO PRO allows air to be split from the main connection into two outlets with a diameter of 75 mm, and vice versa.

Features and Benefits

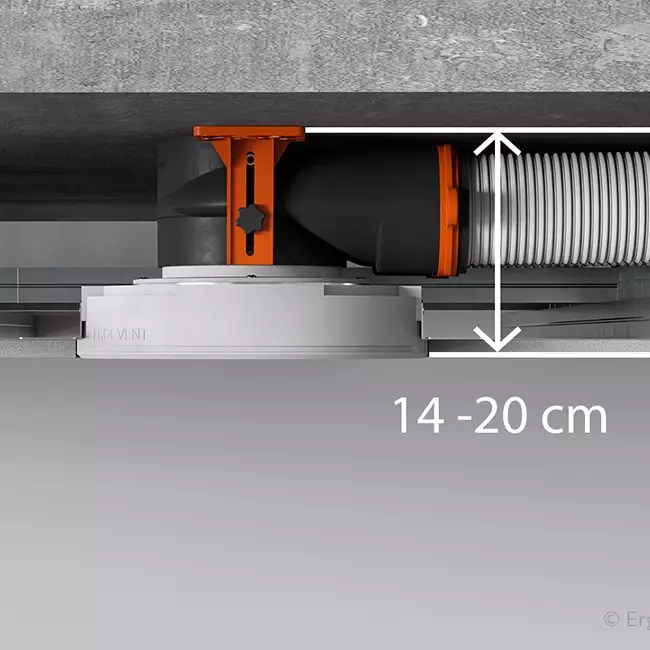

• Compact design: Requires a minimal installation depth of just 14 cm, making the diffuser box ideal for projects with limited space.
• Easy installation: Ventilation ducts can be connected directly to the diffuser box connections without the need for clamps.
• Antistatic and antibacterial: The material used actively prevents dust accumulation and bacterial growth.
• Flexible application: Suitable for both air supply and exhaust, and can be installed in ceilings, walls, and floors.

Applications and Usage

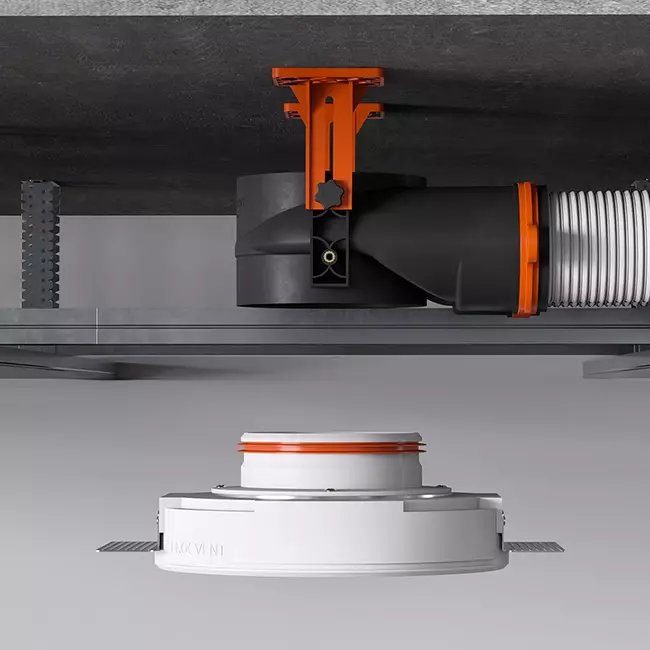

The AERO PRO set includes the diffuser connection box, two brackets for mounting the diffuser box to a structure, and two duct clamps to ensure secure and airtight connections of the ventilation ducts. A 125 mm ventilation grille, such as the Lineo Pro Puzzle, can be connected to the main connection. The outlets are designed for a flexible duct ventilation system of 75 mm.
