Ergovent 90 Degree Corner Piece for Modular Flush-Mount Linear Diffusers with 3 Slots

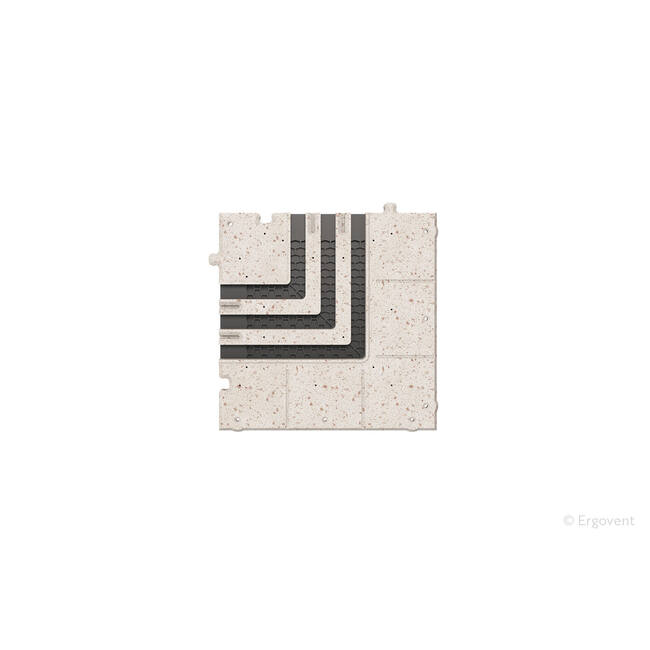

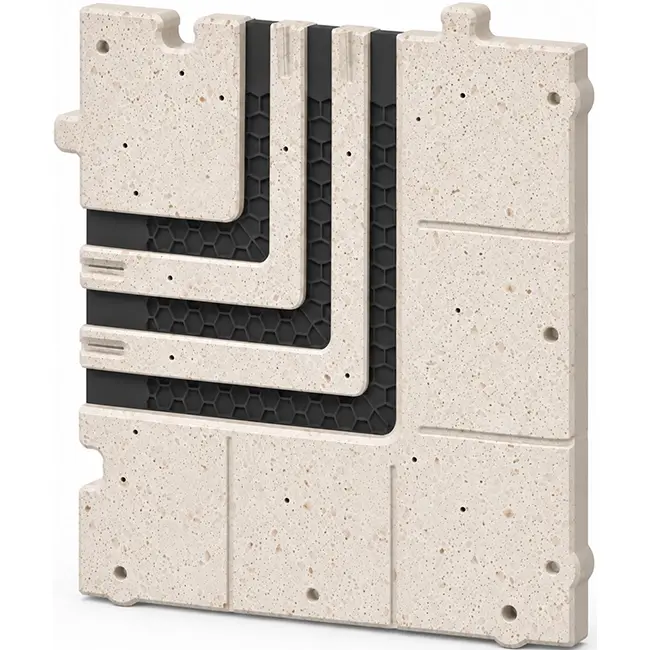

The Ergovent 90 degree corner piece for modular flush-mount linear diffusers with 3 slots is a replica piece that allows the line to continue neatly around a right-angled ceiling corner. This corner piece is used where the line changes direction but no air connection is required. Visually, it perfectly matches the functional flush-mount linear diffuser.

Benefits and Features

• Straight 90 degree corner connection – allows the three slots to continue through a sharp angle, exactly as with a right-angled ceiling corner.
• Visually identical to the flush-mount linear diffuser – same finish and slot width, ensuring the transition from straight line to corner remains unobtrusive.
• Part of the same modular system – connects directly to the intermediate pieces and the functional linear diffuser, creating a continuous line pattern in the ceiling.

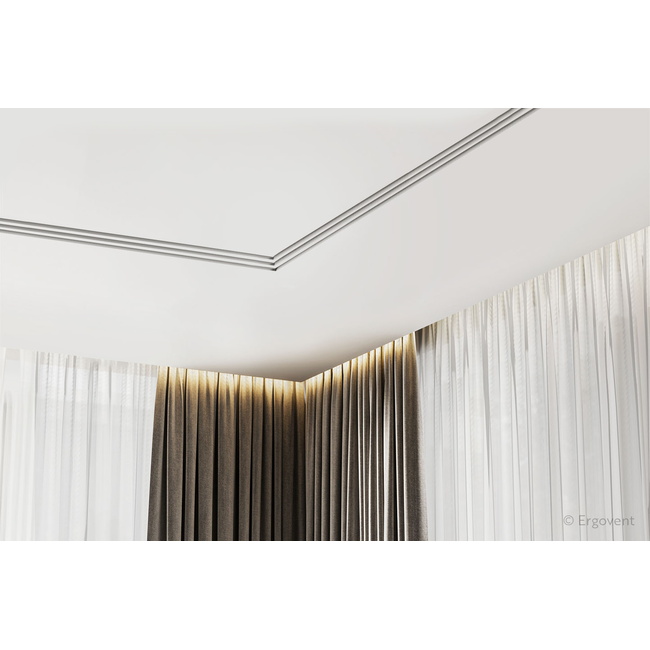

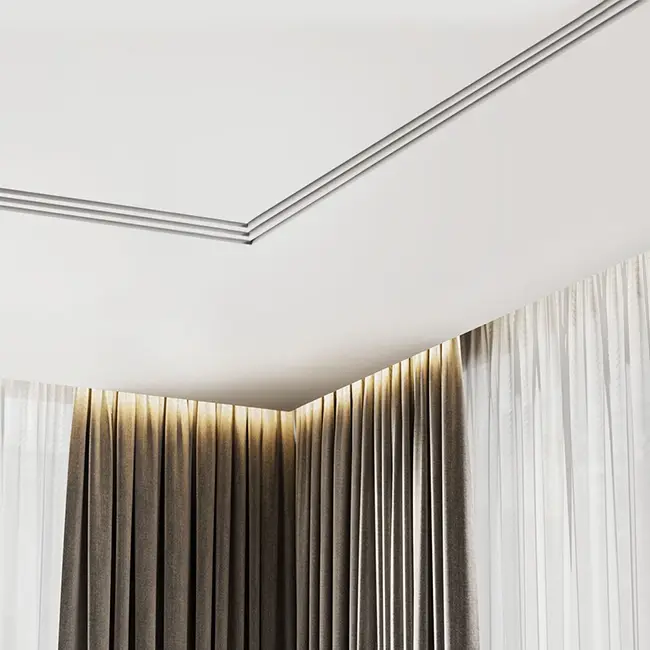

A Clean Line, Even Around Corners

In ceiling designs with multiple walls, you want the line to continue seamlessly around corners, not stop. This corner piece enables that transition without interruption of the visual flow, even where no duct connection is present.

Installation, Maintenance and Applications

The mounting and connection proceed in the same way as with the standard flush-mount linear diffuser with 3 slots. Since there is no air connection, maintenance is not required. Suitable for residential and commercial projects where a frameless line continues around right-angled corners in the ceiling.
