Good points
- Brand: Ruck fans
- AC motor
- Up to 3670 m3/h
- Speed controllable

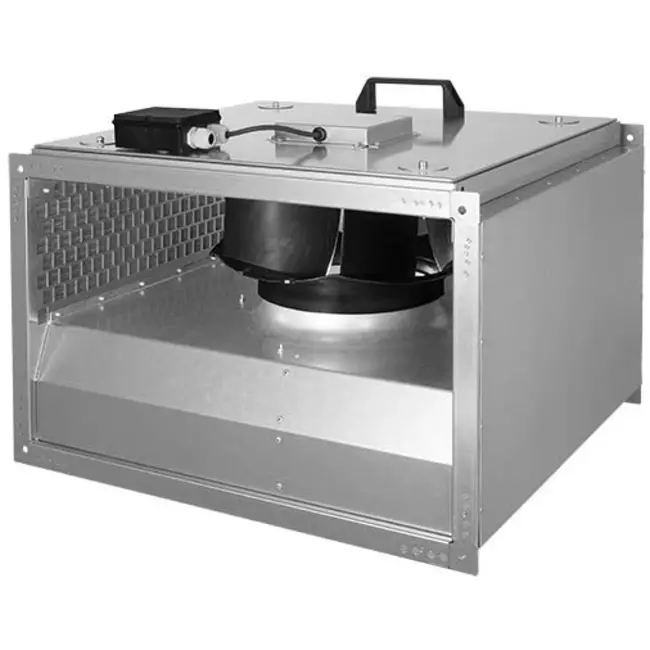

Ruck® insulated inline duct fan
The Ruck® insulated inline duct fan (KVRI series) can be operated with a 5 or 7-step transformer or the electronic variable control (depending on the type). The inline duct fan from Ruck® can be mounted directly on a rectangular duct, but we recommend the corresponding Ruck® fitting to reduce vibrations and noise through the duct.
The insulated inline duct fan has a built-in thermal switch to prevent burn out, has a metal housing and rearward curved vanes. The KVRI series is available with capacities ranging from 2865 m3/h to a maximum of 10610 m3/h and with dimensions ranging from 600x350 mm to a maximum of 1000x500 mm respectively.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of insulated inline duct fans. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
- Ventilation unit swivels outwards
- With sound insulation
- With adjustable speed
- Metal housing, galvanised
- Rearward curved radial fan
| Brand | Ruck ventilatoren GmbH |
| Category | Insulated Inline extractor fan |
| GTIN | 4061199018623 |
| Manufacturer's item number | 131407 |
| Article number | 65131407 |
Specifications
| Number of phases | 1~ |
| Number of poles | 4 |
| Type of motor control | V |
| Category code | 35 |
| Capacitor µ | 9 µF |
| Capacitor Voltage | 400 V |
| Weight | 35.55 kg |
| IP Complete Unit | IPX4 |
| IP Terminal Box | IP44 |
| IP Motor | IP54 |
| Insulation Class Motor | F |
| Max. Operating Current | 2.53 A |
| Max. pressure | 510 Pa |
| Max. Air Volume | 3670 m³/h |
| Max. Current Consumption | 2.53 A |
| Max. power consumption | 440 W |
| Max. Static Efficiency | 41.4 % |
| Max. allowed Medium Temperature | 65 °C |
| Max. allowed Medium Temperature at Rated Current | 65 °C |
| Max. allowed Ambient Temperature | 65 °C |
| Max. allowed Ambient Temperature at Rated Current | 65 °C |
| Max. number of revolutions | 1440 1/min |
| Max. Total Efficiency | 41.8 % |
| Min. allowed Voltage | 80 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TAE |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 1355 1/min |
| Nominal power consumption | 440 W |
| Nominal voltage | 230 V |
| Nominal current | 2.23 A |
| Range | Reverse centrifugal |
