Good points

Quick exchange & adjustment
Easy-to-service
Brand: Duco

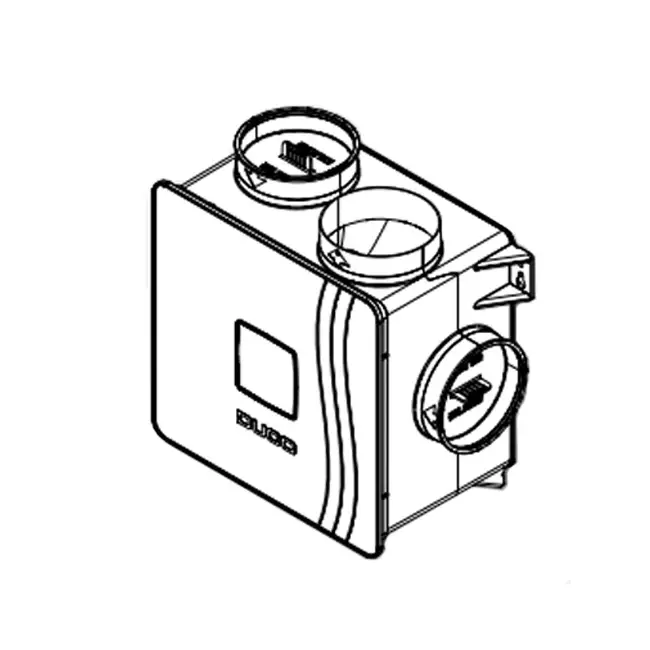

DucoBox Reno 325 m³/h - plug type G

The DucoBox Reno is ideal for replacement or renovation projects. This smart renovation box allows the installer to replace an outdated ventilation system up to 25% faster.

The DucoBox Reno is an extraction fan that provides central extraction within Mechanical Extract Ventilation - System C units. The unit can be used up to 325 m3/h at 150Pa for domestic applications with simple programming. The DucoBox Reno is a demand-controlled ventilation system that can make smart use of intelligent sensors and efficient balancing technology.

The DucoBox Reno is the most compact central ventilation box on the market that can replace any existing unit. With its height of 20 cm, the DucoBox Reno is very easy to conceal. You connect pipes and ducts via the handy mounting ring. Adjusting the unit is done without removing the cover of the ventilation unit. All control buttons are directly accessible via a flap at the front. No extra tools needed! Thanks to the smart copy function, it is also possible to transfer settings to similar homes within serial construction. This saves the installer a lot of time during adjustment!

The DucoBox Reno has an energy-efficient backward-curved fan. Furthermore, humidity measurement is provided as standard and demand control can be further refined with a quick-to-install 'Plug & Play' CO2 Box sensor. As with all our solutions, this can be further complemented with modular controls and room sensors.

Important features:

Up to 325 m3/h at 150Pa
Wall or ceiling mounting
1 outlet and 7 suction points (dia 125mm)

Note: It is necessary to combine this product with a sensor or controller. You can find controller and sensor options in the accessories section of this page.

Brand	Duco
Category	All mechanical ventilation systems
GTIN	5425037159845
Manufacturer's item number	0000-4948
Article number	19140135

Specifications

Category code	78

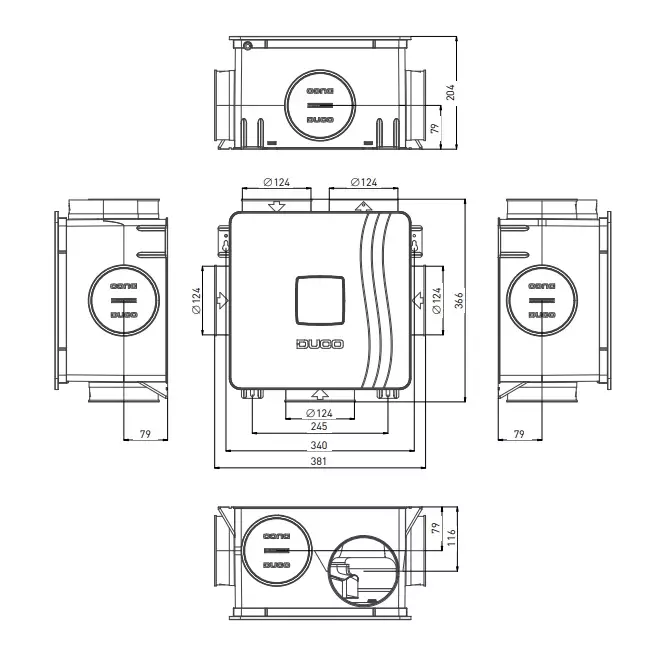

Width	381 mm
Height	204 mm
Depth	366 mm
Housing material	Plastic
Suitable for ceiling mounting	Yes
Suitable for wall mounting	Yes
Suitable for floor mounting	Yes
Max. air volume at 100 Pa	355 m³/h
Max. air volume at 200 Pa	294 m³/h
Electrical connection	Cable
Type of motor	DC
With zone controller	No
With wireless remote control	No
With wired control unit	No
With internal humidity (RH) sensor	Yes
Max. air volume at 150 Pa	325 m³/h
Max. air volume at 50 Pa	385 m³/h
Max. air volume at 250 Pa	260 m³/h
Suitable for wired control unit	Yes
Operation by app	No
Suitable for zone controller	No
Suitable for wireless remote control	Yes
With constant volume flow control	No
With external humidity (RH) sensor	No
With internal carbon dioxide (CO2) sensor	No
Suitable for (extra) humidity (RH) sensor	Yes
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Type of speed control	Continuously variable
With external carbon dioxide (CO2) sensor	No
With pressure sensor	No
Max. air volume at 300 Pa	230 m³/h
Suitable for movement sensor	No
Energy efficiency class	B
With movement sensor	No
Number of suction connections	4
Rear connection	Yes
Suitable for requirement-controlled ventilation	Yes
Suitable for (extra) pressure sensor	No
Control signal	Other
Horizontal mounting	Yes
Suitable for suspended mounting	Yes
Vertical mounting	Yes
Nominal duct diameter suction side	125 mm
Detects volatile organic compounds	No
Extra electrical connection included separately	Connecting cable with plug with protective contact
Plug type	Type G
Energy label	B
Connection	Insert end
