Good points

325m3/h
Brand: Duco
Constant pressure adjustment

DucoBox Energy Comfort D325

The DucoBox Energy Comfort D325 is designed for balanced ventilation systems with heat recovery. (System D) The unit efficiency is tested according to NBN EN308 and it has a high thermal efficiency of 85% according to EPBD (Belgium).

This smart and silent ventilation unit, with its various designs and adjustable capacity up to 325m 3 /h, is the solution for every situation in an indoor residential construction.

The unit intakes the fresh air into the service area and exhaust the dirty air. While doing this function, it also uses the heat of return air with the help of its heat recovery part. Thanks to the heat recovery section inside, this unit has a great thermal efficiency.

The demand control of the DucoBox Energy Comfort results in intelligent and energy-efficient operation . Together with the smart demand control based on CO2 and moisture, the dynamic air distribution filters ensure exceptional efficiency within this compact unit. It helps to decrease the energy bill!

Thanks to the unique principle of setting the comfort temperature, you can define the temperature per zone , for example 21.5° for the day zone and 18° for the night zone. This ensures significantly increased thermal comfort.

Important features:

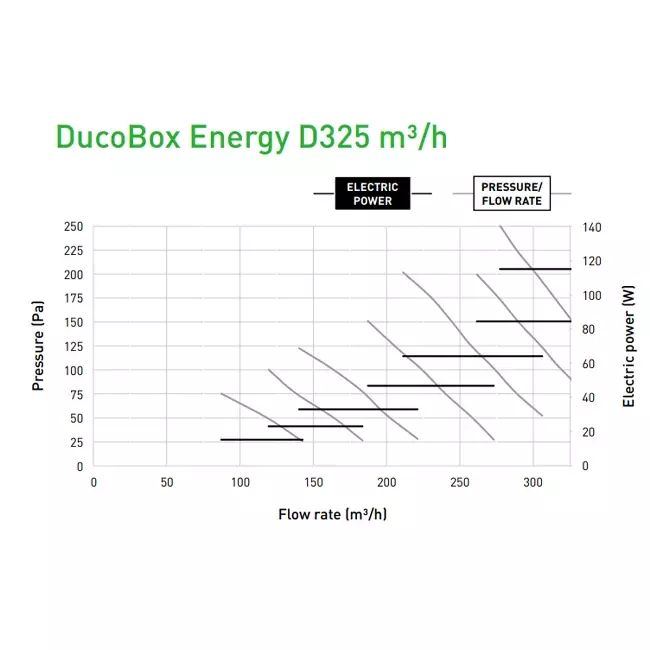

Up to 325m3/h at 150Pa
Compact and energy-efficient appliance with very high thermal efficiency of 85% according to EPBD Belgium
60 Watt/ventilator according to EPBD (Belgium)
Energy label A+
Outlet types; 1 x exhaust air (EHA) 1 x fresh air (ODA) 1 x return air (ETA) 1 x supply air (SUP)
Number of ducts: 4 x diameter 160mm
Energy efficient EC DC motors and counter-flow heat exchanger
Left/right interchangeable, 100% software-based thanks to the patented double bypass principle
Condensation drain
Night boost function
Service via integrated LCD display
Auto adjustment to constant pressure
Adjustment report via Duco Installation App
RF and wired communication, expandable with optional Duco Connectivity Board for REST API (local or cloud) and Modbus TCP (local), both via Ethernet / WiFi
Optional multi-zone valve
Optional C02 and/ or RH room RF sensors (max 25 pcs)
Optional C02 and/ or RH room Wired sensors (max 50 pcs, If “0” RF sensor is used, max 25 pieces If “25” pieces RF sensors are already used)
Optional box sensors (max 2 pcs from different sensors, it is not possible to have 2 CO2 sensors but it is possible to have 1 CO2 + 1 humidity box sensors )
Optional controller and switch contacts

A closer look into freduction :

With the standard DucoBox Energy Comfort, it is possible to reach up to 0.56 freductionheat with the correct configuration.

With the optional multi-zone valve and correct sensor configuration of DucoBox Energy Comfort, it is possible to decrease freductionheat up to 0.45.

Please find different configurations of DucoBox Energy Comfort via the “Downloads" part of this page in the "DucoBox Energy Comfort -en Plus brochure” .

Optional compact external 2-zone (multi-zone valve):

With external 2-zone control, the home is divided into a day and night zone. The zone control works based on CO2 and humidity and only provides ventilation where and when necessary and in the right amount. Zonal ventilation results in maximum energy savings and increased acoustic and thermal comfort.

Discover the 4 advantages of the multi-zone valve:

Compact installation
The multi-zone valves are placed in the supply pipes (D125 or D160) and only require a free space of 78 mm . They can be used anywhere in the pipe system. The installer can make his own choice based on ease of installation, accessibility, etc.
Energy saving
With zonal ventilation we do not ventilate the entire home, but only the zones where people are active. That is why our systems have to work less hard, resulting in significantly lower energy consumption (40%) of the ventilation unit and the heating system.
Quieter operation
Reduced motor rotation ensures significantly quieter operation (30%) .
Increased thermal comfort
Thanks to the unique principle of setting the comfort temperature, you can define the temperature per zone , for example 21.5° for the day zone and 18° for the night zone. This ensures significantly increased thermal comfort.

Do you need another version?

All devices listed below have been tested according to EPBD (Belgium). Each model has a right and left version.

Duco WTW unit DucoBox Energy Comfort D400: 403 m3/h - 83% thermisch rendement, 72Watt/ventilator
Duco WTW unit DucoBox Energy Comfort Plus D350: 351 m3/h - 84% thermisch rendement, 59Watt/ventilator
Duco WTW unit DucoBox Energy Comfort Plus D450: 451 m3/h - 81% thermisch rendement, 98Watt/ventilator
Duco WTW unit DucoBox Energy Comfort Plus D550: 551 m3/h - 78% thermisch rendement, 135Watt/ventilator

Brand	Duco
Category	All MVHR units
GTIN	5425037156004
Manufacturer's item number	0000-4658
Article number	19140137

Specifications

Category code	78
Housing material	Plastic
Suitable for wall mounting	Yes
Suitable for ceiling mounting	No
Suitable for floor mounting	Yes
Left/right orientation reversible	Yes
Max. air volume at 100 Pa	345 m³/h
Max. air volume at 150 Pa	325 m³/h
Max. air volume at 200 Pa	290 m³/h
Type of motor	DC
Voltage	230 V
Frequency	50 Hz
Number of phases	1
Electrical connection	Connecting cable with plug with protective contact
Energy efficiency class according to 1253/2014/EU	A
With digital display	Yes
With wired control unit	Yes
Suitable for wired control unit	Yes
Suitable for wireless remote control	Yes
Supporting protocol for Modbus	Yes
Operation by app	No
With zone controller	No
Suitable for zone controller	No
With heating element	No
With internal humidity (RH) sensor	No
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Suitable for central heating boiler connection	No
With bypass	Yes
With constant pressure control	No
With constant volume flow control	Yes
Type of frost protection	Other
Nominal duct diameter (min)	160 mm
Nominal duct diameter (max)	160 mm
Connections outdoor air side	Duct end
Connections residential side	Duct end
Residential connection, underside	No
Residential connection, left side	No
Residential connection, right side	No
Roof connection, side	Yes
Roof connection, top	No
Supply filter according to ISO 16890-1:2016	ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016	65 %
Exhaust filter according to ISO 16890-1:2016	ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016	65 %

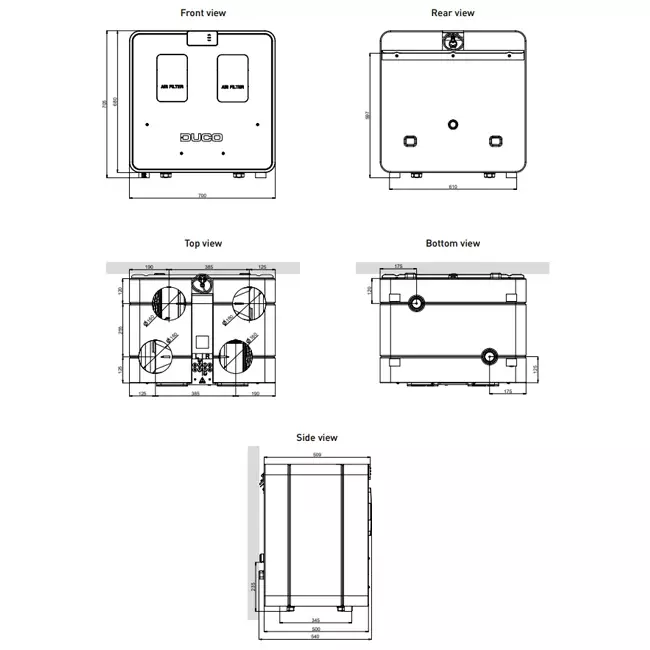

Height	705 mm
Width	525 mm
Depth	700 mm
Degree of protection (IP)	IP41
Weight	21 kg
Energy label	A+
Connection type	connection left right
With enthalpy exchanger	No
Plug type	Type G
