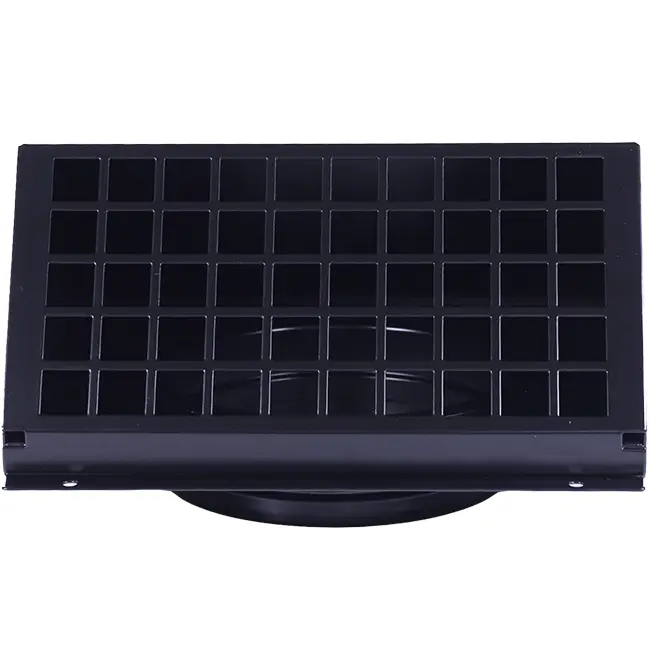

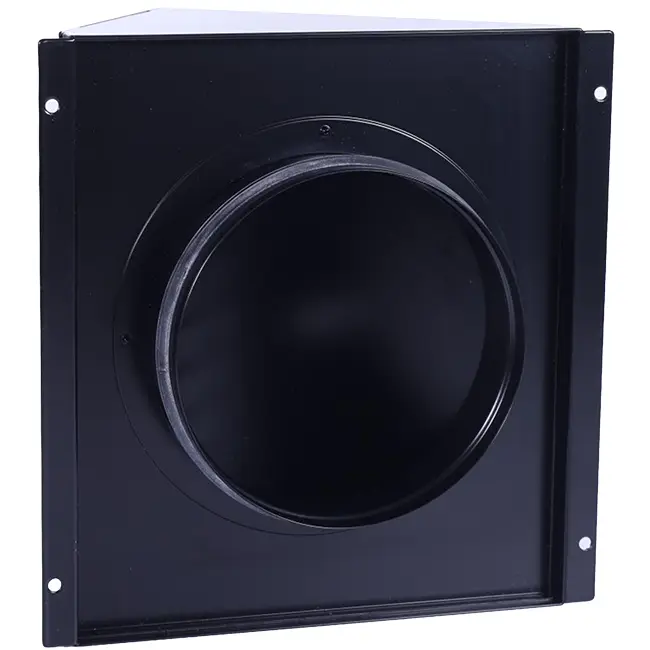

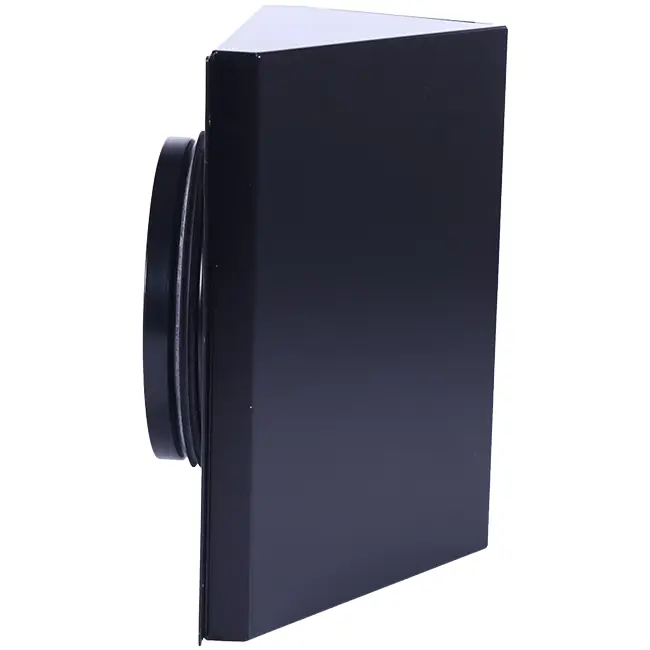

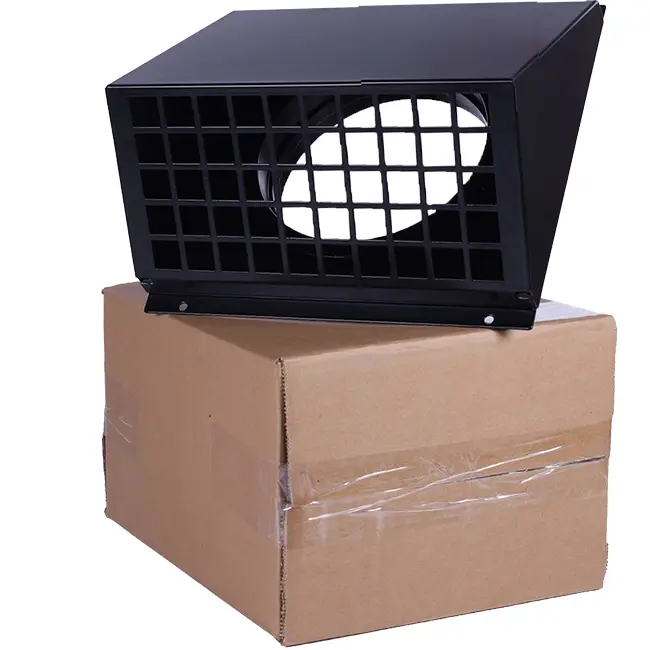

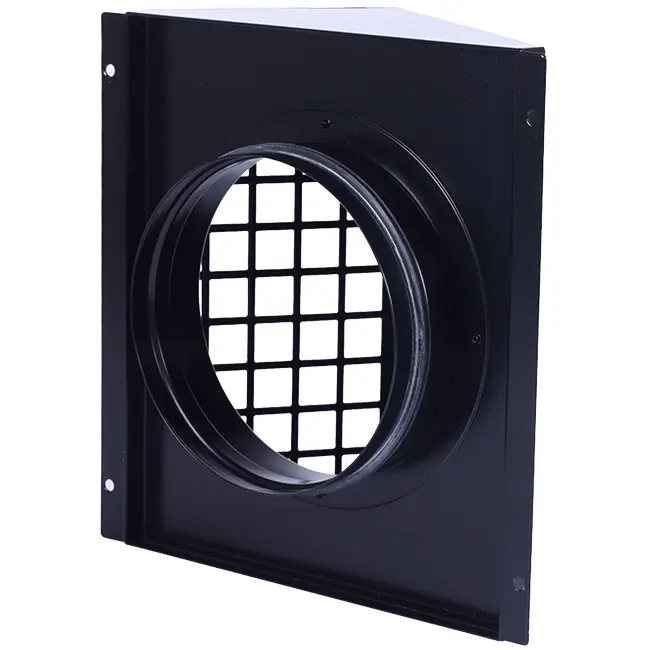

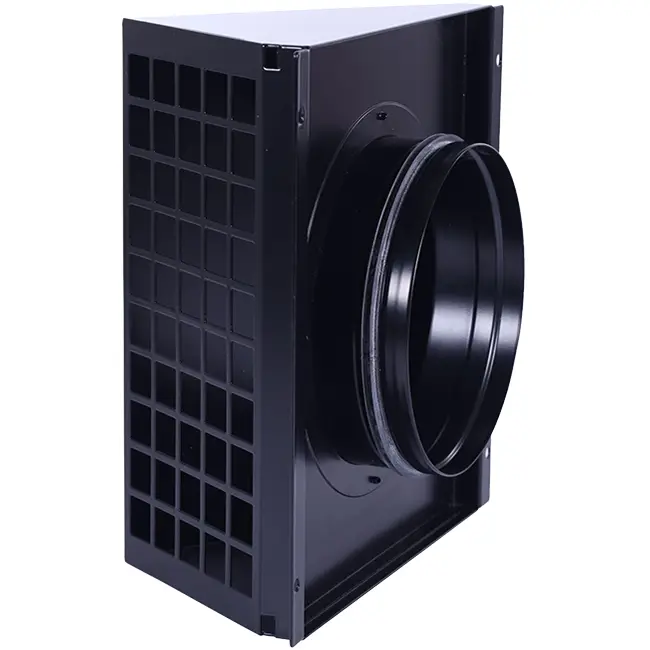

ClimaConnect WTW wall duct 180 mm

ClimaConnect WTW Wall Duct 180 mm

This ClimaConnect wall duct is suitable for WTW installations and other ventilation applications where air is neatly discharged through the façade. The wall duct is constructed from 1 mm aluminium, equipped with a SAFE silicone ring featuring a double-lip seal for an airtight connection, and finished in RAL 9005 matte black with 30% gloss.

Advantages and Features

• Manufactured from 1 mm aluminium for a durable exterior finish.
• SAFE double-lip sealing around the connection for an airtight construction without additional sealants.
• Installation via 4 screw holes for simple and secure mounting to the façade.
• Finished in RAL 9005 with 30% gloss for a sleek, long-lasting appearance on the façade.
• Compatible with WTW systems and ventilation ducts with a 180 mm connection diameter.

Lightweight, Dimensionally Stable, and Suitable for Outdoor Use

The aluminium construction remains lightweight and dimensionally stable even with prolonged outdoor use on the building exterior. The RAL 9005 powder coating with 30% gloss is weather-resistant and retains its appearance over the years. This makes the wall duct ideal for durable application in both new build and renovation projects.

Installation, Maintenance, and Applications

Thanks to the 4 screw holes, you can quickly and easily mount the wall duct onto the façade. The supplied SAFE silicone ring with double-lip sealing immediately provides an airtight seal without the need for additional caulking or sealing tape. The powder-coated finish requires minimal maintenance and suits residential buildings and small commercial projects where a neat, airtight through-wall ventilation solution is needed.

This wall duct combines a robust aluminium base with a SAFE silicone ring featuring double-lip sealing and a crisp RAL 9005 finish, ensuring a reliable and durable connection of ventilation ducts through the façade.

Product Specifications

• Wall grille width: 316 mm
• Wall grille height: 282 mm
• Wall grille height including mounting strips: 312 mm
• Wall grille depth: 151 mm
• Connection diameter duct: 180 mm
