ClimaConnect single-adjustable duct grille, 525x125 mm, for ducts 315 to 900 mm – uncoated

ClimaConnect Single Adjustable Duct Grille 525x125 mm for Ducts 315 to 900 mm - Uncoated

The ClimaConnect single adjustable duct grille 525x125 mm is a spiral-shaped grille made of galvanized steel, uncoated, designed for air supply and extraction in duct systems. The grille features vertical blades, also known as vanes, allowing you to easily direct and control the airflow. With a height of 125 mm, this grille is suitable for ducts with diameters ranging from 315 to 900 mm and is widely applicable, from hospitality venues and retail spaces to industrial environments.

Advantages and Features

• Vertically adjustable blades: Manually adjust the position of the vanes to precisely control the airflow direction and volume according to the space requirements.
• Open area up to approximately 70%: A large free passage area ensures efficient air transfer with minimal resistance.
• Pre-drilled mounting holes: Allow for quick and easy installation without additional modifications.

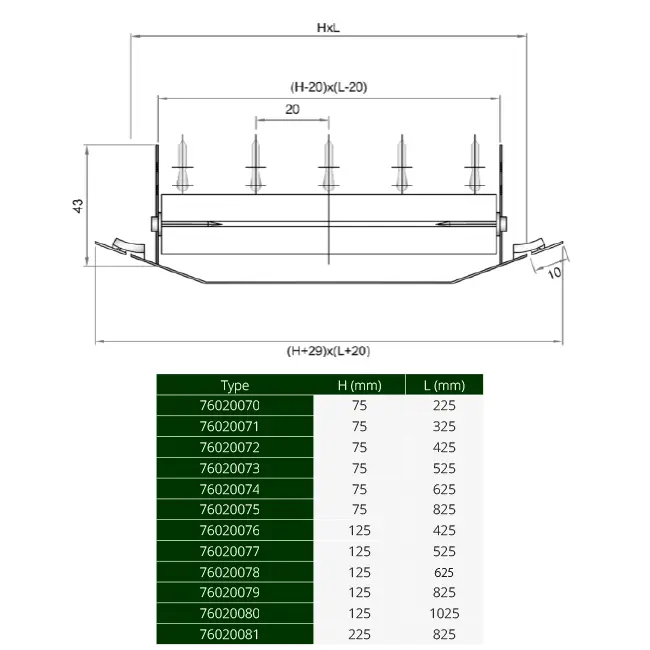

• Compact dimensions of 525x125 mm: Suitable for ducts with diameters from 315 to 900 mm.

Suitable for Any Airflow Rate

Thanks to the adjustable blades, you can precisely regulate the airflow rate with this grille. This size is appropriate for airflows between 250 and 450 m³/h, matching average duct connections found in retail spaces, hospitality venues, or office buildings. A larger opening enables smoother air passage, while a smaller opening provides higher capacity with slightly increased air velocity.

Installation, Maintenance and Applications

The duct grille is mounted directly onto the duct opening, with pre-drilled holes ensuring a fast and tidy installation. Due to its 125 mm height, this grille fits ducts with diameters from 315 to 900 mm seamlessly. After installation, simply adjust the blades to the desired airflow direction and volume without requiring any extra tools. The galvanized steel construction demands minimal maintenance and offers long service life, even in environments with fluctuating temperatures or humidity. This grille is suitable for commercial buildings such as hospitality and retail as well as industrial applications where reliable, adjustable air supply or exhaust is essential.
