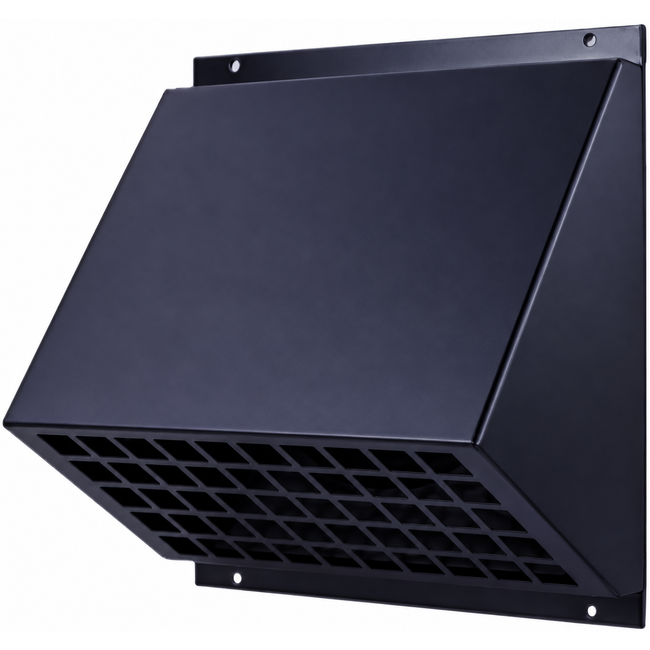

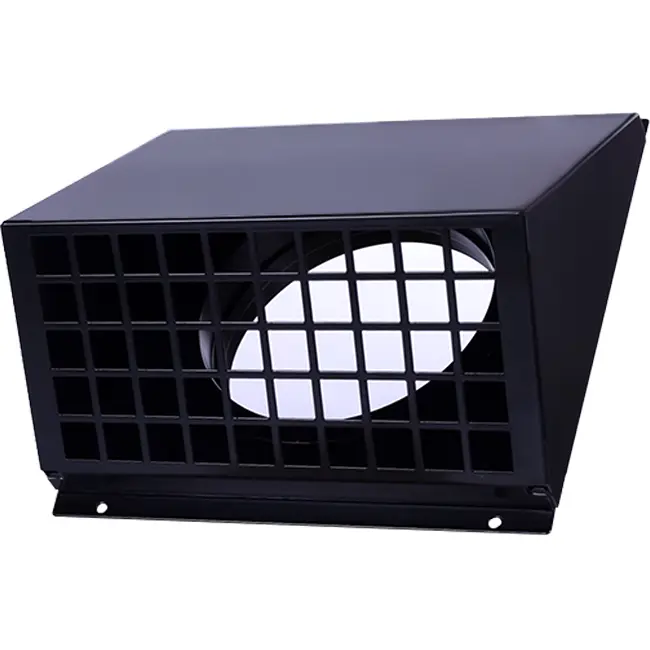

ClimaConnect Heat Recovery Ventilation Wall Duct, 160 mm

ClimaConnect WTW Wall Penetration 160 mm

This ClimaConnect wall penetration is designed for WTW systems and other ventilation applications where air is neatly expelled through the façade. The wall penetration is constructed from 1 mm aluminium, equipped with a SAFE silicone ring featuring a double lip seal for an airtight connection, and finished in RAL 9005 matt black with 30% gloss.

Advantages and Features

• Made from 1 mm aluminium for a durable exterior finish.
• SAFE double lip seal around the connection ensures an airtight construction without the need for additional sealants.
• Fitted via 4 screw holes for easy and secure mounting to the façade.
• Finished in RAL 9005 with 30% gloss for a sleek, long-lasting appearance on the façade.
• Suitable for WTW systems and ventilation ducts with a 160 mm connection diameter.

Lightweight, Shape-Retentive and Suitable for Exterior Use

The aluminium construction remains lightweight and dimensionally stable, even with prolonged use on the exterior of the building. The RAL 9005 powder coating with 30% gloss is weather-resistant and maintains its appearance over the years. This makes the wall penetration ideal for a sustainable application in both new builds and renovation projects.

Installation, Maintenance and Applications

Thanks to the 4 screw holes, you can quickly and easily mount the wall penetration to the façade. The supplied SAFE silicone ring with double lip seal immediately provides an airtight closure, eliminating the need for additional sealants or sealing tape. The powder-coated finish requires minimal maintenance and suits residential properties and small commercial projects where a neat, airtight penetration through the façade is required.

This wall penetration combines a robust aluminium base with a SAFE silicone ring with double lip seal and a clean RAL 9005 finish, delivering a reliable and durable connection for ventilation ducts through the façade.

Product Specifications

• Façade grille width: 268 mm
• Façade grille height: 231 mm
• Façade grille height including mounting strips: 261 mm
• Façade grille depth: 127 mm
• Duct connection diameter: 160 mm
