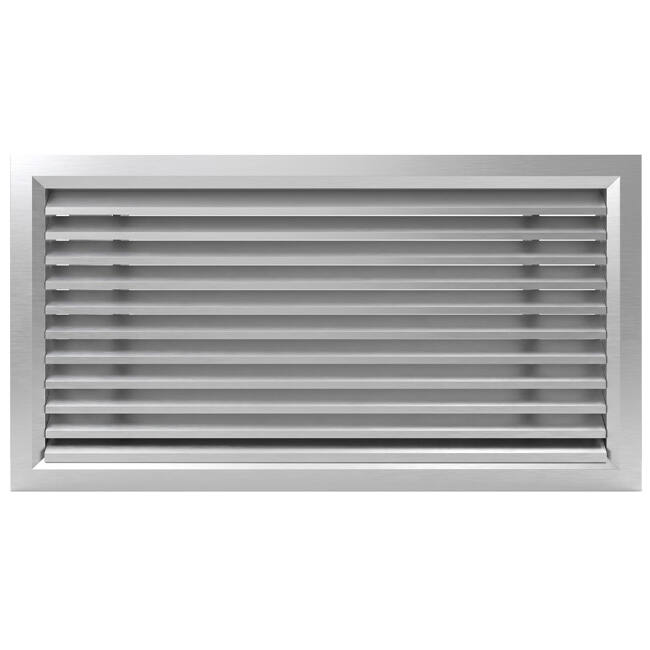

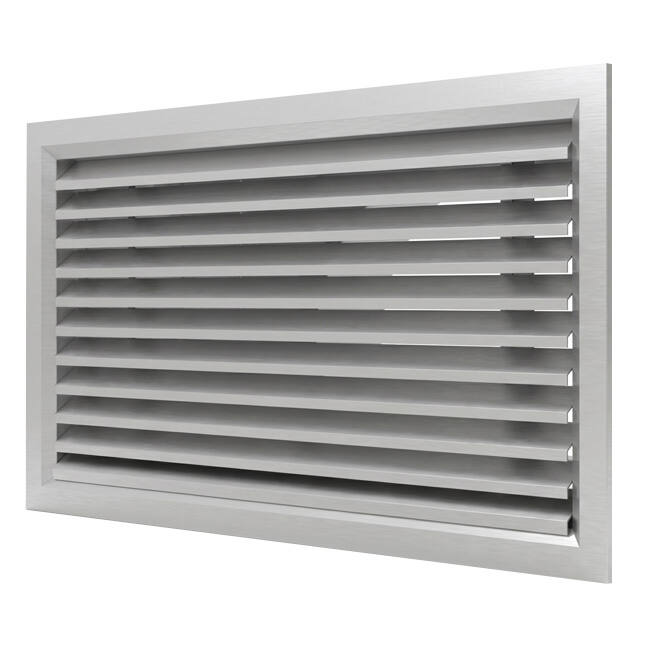

ClimaConnect exterior wall grille aluminum 200x200 mm

ClimaConnect Aluminium External Wall Vent 200x200 mm

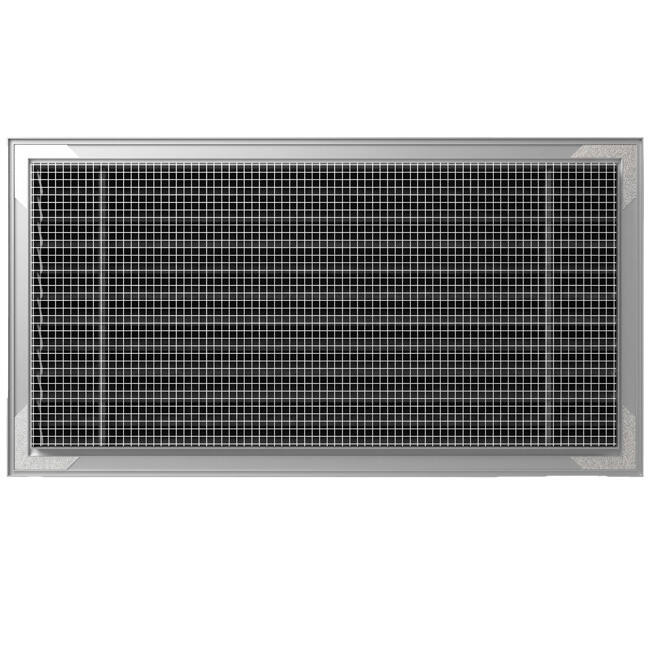

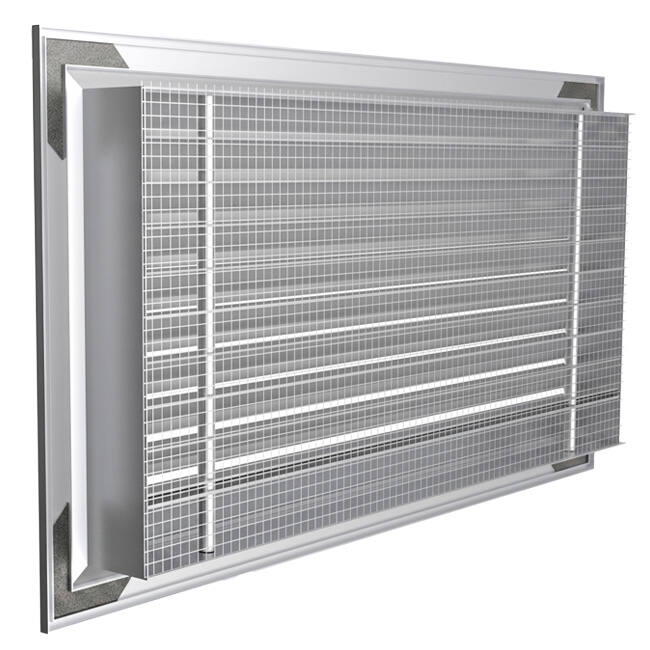

The ClimaConnect Aluminium External Wall Vent 200x200 mm is a fixed aluminium grille designed for external air intake through the façade. It is used in mechanical ventilation systems for residential properties, offices, schools, and commercial buildings, ensuring controlled airflow from the outside environment. Both the frame and the slats are made of aluminium. Behind the grille, there is a steel mesh with a 2.3 x 2.3 mm mesh size that prevents insects and large debris from entering. The slats have a pitch of 33 mm and protect the air duct against direct rain penetration.

Advantages and Features

• Aluminium construction: the frame and slats are made of aluminium, making the wall vent low-maintenance and durable.
• Steel mesh with fine mesh size: the mesh behind the grille features a 2.3 x 2.3 mm opening, keeping insects and coarse debris out of the air duct.
• Slats with 33 mm pitch: the evenly spaced slats ensure optimal airflow distribution and effective rain protection.
• Large free airflow area: approximately 50% of the gross surface area is available for airflow, reducing pressure loss.
• Secure screw mounting: the grille is easily and firmly installed in the wall opening using screws.

Installation, Maintenance, and Applications

The grille measures 249 x 249 mm externally and is mounted into a wall opening with a minimum installation size of 212 x 212 mm. The grille is low-maintenance: cleaning with water and a mild detergent is sufficient. It is suitable for both residential and commercial applications, including housing, office buildings, healthcare facilities, and similar projects.
