Good points

Full set
19 dB(A)
Easy connection

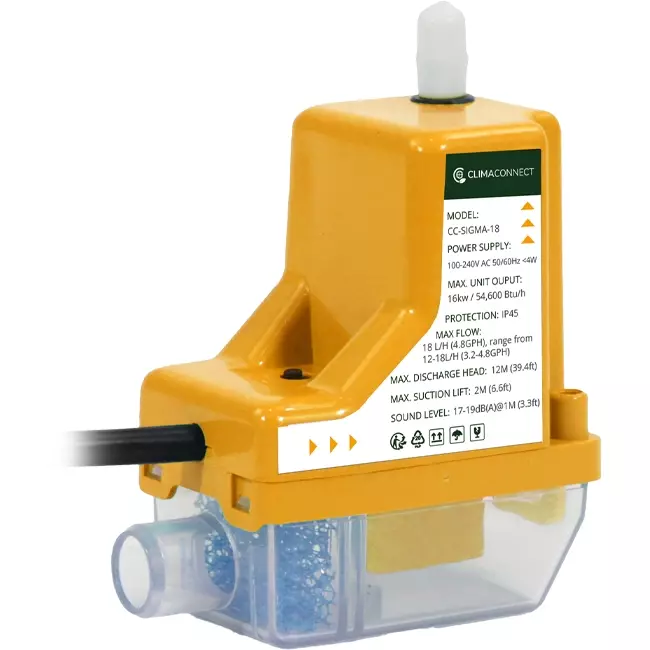

The ClimaConnect CC-SIGMA-18 condensate pump with duct 18l/h

The ClimaConnect CC-SIGMA-18 condensate pump with duct 18l/h is an advanced and reliable solution for draining condensate water from wall-mounted air conditioners. Designed for surface mounting, this pump provides a maximum flow rate of 18 litres per hour and is ideal for both residential and commercial HVAC installations.

Features

Compact and Discreet Design: The CC-SIGMA-18 is designed for easy and unobtrusive installation beside a wall unit. The compact dimensions of the duct (750 x 80 x 60 mm) and the corner module (130 x 130 x 60 mm) allow for flexible installation.
Efficiency: With a maximum head height of 10 metres, the pump can effectively drain condensate even in challenging scenarios.
Low Noise: The pump operates at a noise level of only 19 dBA, making it virtually silent and contributing to a comfortable living environment.
Reliability: Equipped with the patented ClimaConnect piston pump technology, the CC-SIGMA-18 can discharge small particles from the condensate without clogging. The pump also features a Drain Safe Device for enhanced reliability.
Safety and Protection: The pump includes overheat protection (90°C automatic reset) and complies with IP54 protection class, CE standards, and RoHS and WEEE directives.

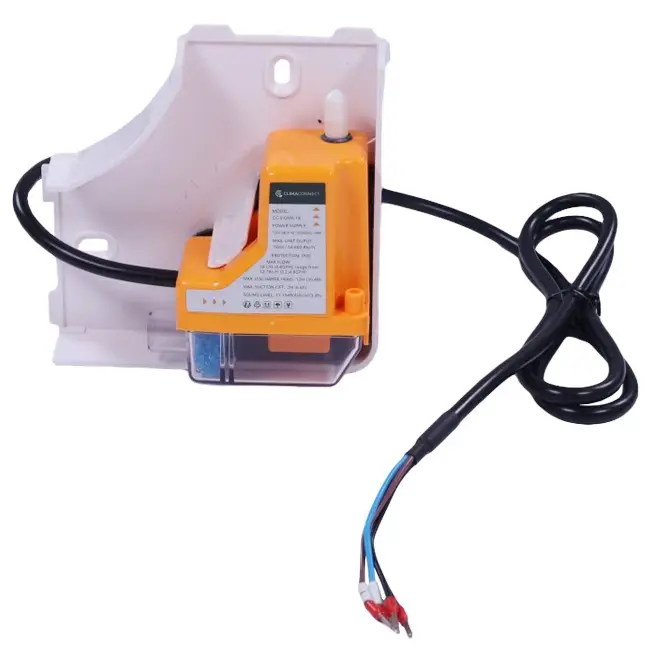

Contents of the Set

ClimaConnect piston pump with integrated float switch
Transparent PVC hose (Ø 6 mm, length: 1 m) with 800 mm insulation and Drain Safe Device
2-piece duct module and corner module
Mounting materials including screws and plugs
650 mm rubber hose (Ø 15 mm) for connection to the air conditioner
Plug-in power cable to be connected within the system
Various mounting clamps and valve hoses
