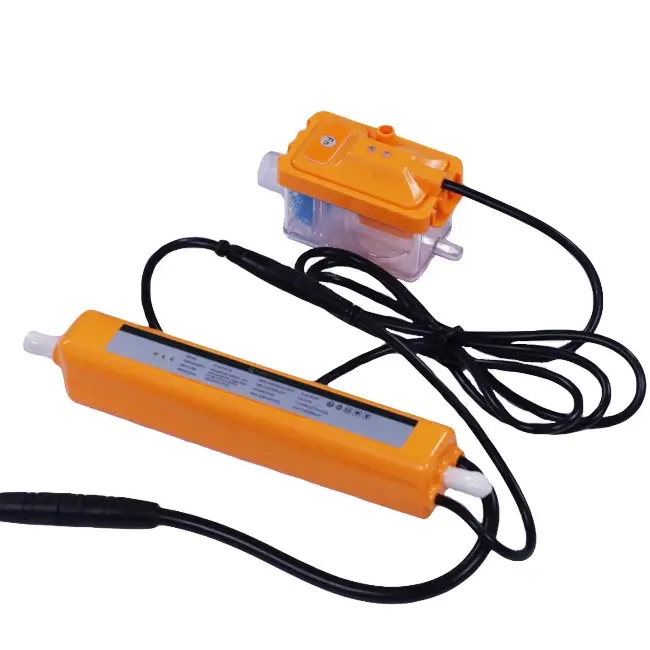

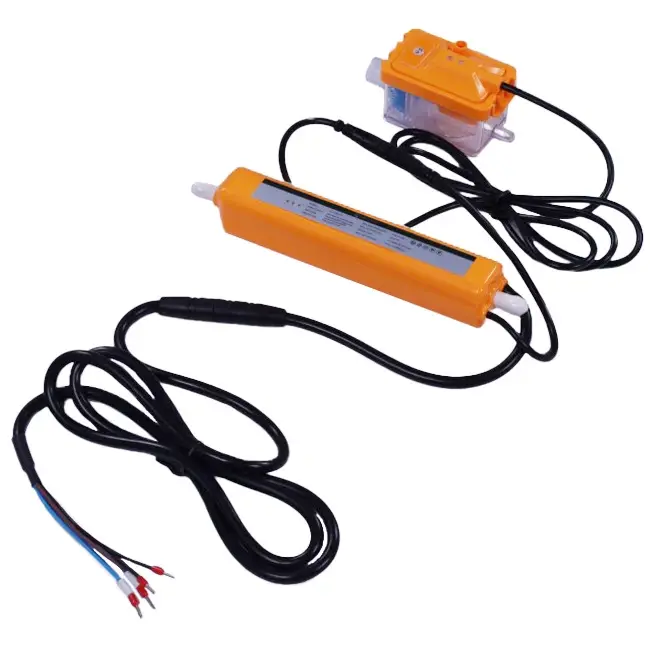

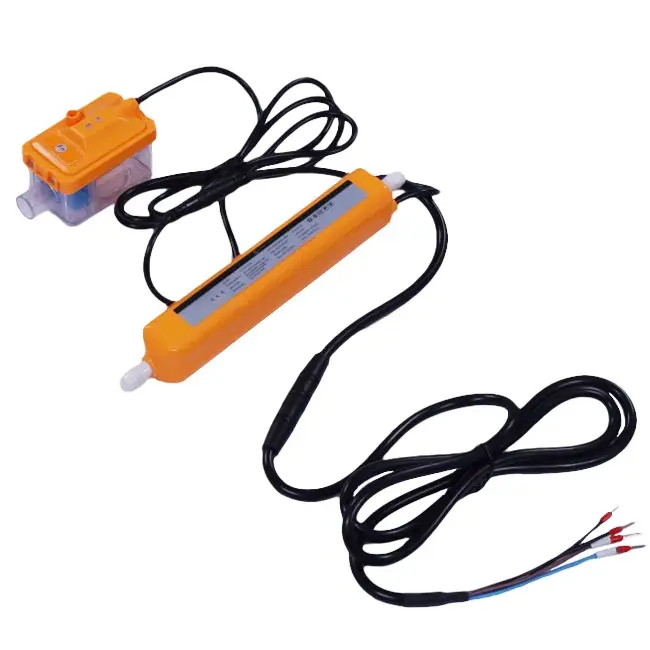

ClimaConnect CC-ALPHA-18 condensate pump 18 l/h

The ClimaConnect CC-ALPHA-18 condensate pump 18 l/h

The ClimaConnect CC-ALPHA-18 condensate pump 18 l/h is an efficient and reliable solution for removing condensate water from air conditioning systems. This pump is specially designed for use in residential and commercial HVAC installations and offers a maximum flow capacity of 18 liters per hour.

Features

• Compact design: With a slim housing of only 27 x 27 mm, the CC-ALPHA-18 easily fits into various air conditioning systems and can be installed discreetly inside the unit or along the piping.
• Efficiency: The patented piston pump technology ensures a high degree of energy efficiency and is designed to effectively remove condensate, even from systems with a capacity of up to 20 kW.
• Quiet: The CC-ALPHA-18 operates at a sound level of only 19 dBA, making it one of the quietest pumps in its class. The integrated rubber dampers further reduce vibration and noise, ensuring quiet operation.
• Reliability: Equipped with a pre-installed Drain Safe Device, the CC-ALPHA-18 offers reliable performance in various environments, including those with small particles in the condensate.
• Installation: The set comes complete with all necessary accessories, including a detection unit, PVC hoses, mounting brackets, and cables. This makes installation quick and easy, even in the most challenging locations.

Technical Specifications

• Maximum flow capacity: 18 l/h
• Maximum discharge head: 10 m
• Maximum pressure: 14 m
• Power supply: 230 V ~ 50/60 Hz, 14 W
• Insulation class: Double insulation
• Sound level: 19 dBA
• Protection: IPX2
