Good points
- Up to 1740 m3/h
- AC motor
- Speed controllable
- Brand: Ruck fans

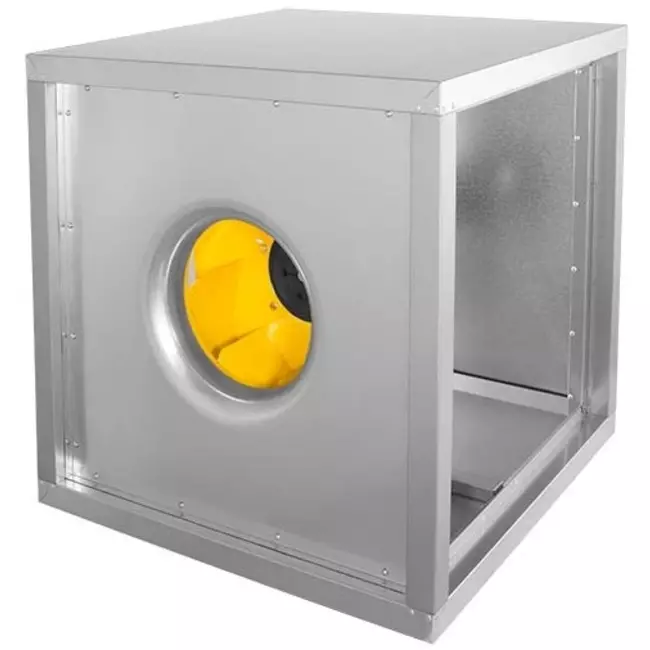

Ruck® box fan
The Ruck® box fan (MPC series) has an economical motor and can be operated with a 5 or 7-step transformer.
The box fan is equipped with 30 mm insulation and has internal electronic temperature control to prevent burn out. The box fan can be mounted via Ruck®'s base frame and has a variable discharge direction. The MPC series is available with capacities ranging from 2610 m3/h to a maximum of 15750 m3/h and with diameters ranging from 250 mm to a maximum of 630 mm respectively.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of economical box fans. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
- 30 mm insulation
- Variable discharge direction
- With bottom pan
- With adjustable speed
- Metal housing, galvanised
| Brand | Ruck ventilatoren GmbH |
| Category | Energy-efficient box fans |
| GTIN | 4061199024181 |
| Manufacturer's item number | 137881 |
| Article number | 65137881 |
Specifications
| Number of phases | 1~ |
| Number of poles | 2 |
| Type of motor control | V |
| Category code | 35 |
| Capacitor µ | 8 µF |
| Capacitor Voltage | 400 V |
| Weight | 32.9 kg |
| IP Motor | IP54 |
| Insulation Class Motor | F |
| Max. Operating Current | 2.28 A |
| Max. pressure | 660 Pa |
| Max. Air Volume | 1740 m³/h |
| Max. Current Consumption | 2.28 A |
| Max. power consumption | 303 W |
| Max. Static Efficiency | 40.7 % |
| Max. allowed Medium Temperature | 80 °C |
| Max. allowed Medium Temperature at Rated Current | 80 °C |
| Max. allowed Ambient Temperature | 80 °C |
| Max. allowed Ambient Temperature at Rated Current | 80 °C |
| Max. number of revolutions | 2910 1/min |
| Max. Total Efficiency | 40.8 % |
| Min. allowed Voltage | 110 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TAO |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 2820 1/min |
| Nominal power consumption | 303 W |
| Nominal voltage | 230 V |
| Nominal current | 1.34 A |
| Direction of blow out | Shifted by 90° compared to suction |
