Good points
- Brand: Ruck
- AC motor
- Up to 22870 m3/h
- Frequency controlled

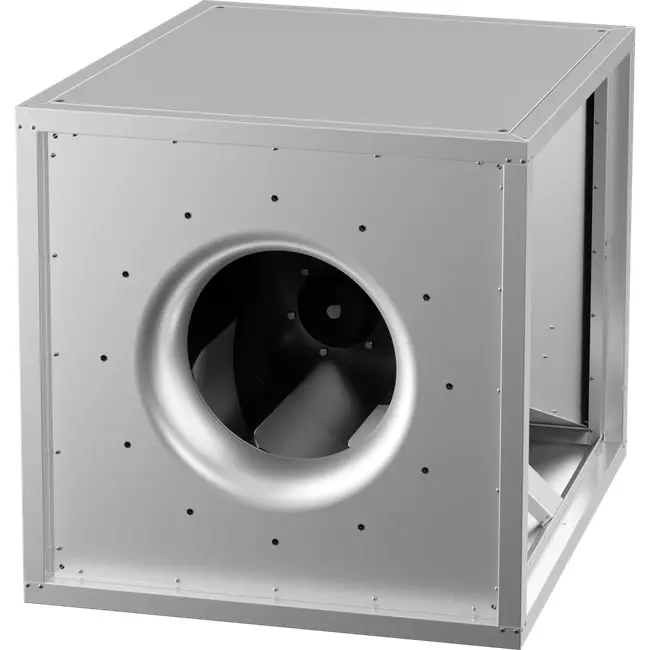

Box Fan Motor Outside Airflow – MPC T 630 D4 K01
The Ruck box fan MPC T 630 D4 K01 is a powerful ventilation solution for industrial and commercial applications where flexibility and reliability are required. This fan features a backward-curved centrifugal impeller and an IE3 motor that is positioned outside the airflow. This design protects the motor from contamination and heat, ensuring a longer lifespan and lower maintenance costs. With removable side panels and variable discharge direction, this fan can be easily integrated into various setups. The motor is continuously adjustable, allowing for precise tuning to the desired ventilation level.
High Quality
The MPC T 630 D4 K01 has a double-walled housing made of galvanized steel with full insulation for thermal and sound dampening. The bottom of the housing is equipped with an integrated drain for condensate and grease, making the fan perform excellently in environments with high humidity or grease load. This model is suitable for continuous operation at medium temperatures up to 120 °C. Thanks to its maintenance-friendly design, with removable side panels, access to the fan unit is quick and easy.
Ruck Ventilatoren GmbH is a leading German manufacturer with over 25 years of experience in the development of ventilation technology. With more than 300 employees, the company works on innovative solutions that meet the highest standards of energy efficiency, sustainability, and safety. The MPC T 630 D4 K01 also complies with current ERP guidelines.
Features and Specifications
- Centrifugal fan with backward-curved impeller
- Removable side panels and variable discharge direction
- Double-walled, insulated housing made of galvanized steel
- Integrated drain for condensate and grease
- IE3 motor outside the airflow, continuously adjustable
- Suitable for medium temperatures up to 120°C in continuous operation
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Heat-resistant box fans |
| GTIN | 4061199044592 |
| Manufacturer's item number | MPC T 630 D4 I K 01 |
| Article number | 65172736 |
Specifications
| Category code | 35 |
| Length | 900 mm |
| Connection | Insert end |
| Width | 900 mm |
| Height | 900 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 22870 m³/h |
| Power consumption | 8177 kW |
| Suitable for frequency control | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | Yes |
| Direct-current motor | Yes |
| 2-speed motor | No |
| Duct diameter, suction | 630 mm |
| Duct diameter, exhaust | 630 mm |
